Battery CNC Machining Services
We provide precision machining solutions for the global battery industry, supplying high-precision CNC-machined battery components to manufacturers worldwide. Our operations are ISO 9001:2015 certified, and all parts undergo rigorous inspection using coordinate measuring machines (CMM). We handle everything from prototyping to full-scale mass production. With our certified, zero-defect quality, we help you accelerate your product’s time-to-market. Contact us today for a quote.
Manufacturer of Custom-Machined Battery Components
We specialize in CNC machining services for battery components, established specifically to address the unique engineering challenges found within the energy storage industry. Equipped with advanced multi-axis CNC milling machines, precision lathes, and automated surface-finishing production lines, we provide a one-stop solution for the complete manufacturing of custom battery components. As a direct manufacturer of custom-machined battery components, Xtproto seamlessly translates complex engineering drawings into high-volume, ready-to-assemble parts that meet rigorous battery safety standards.
Engineering & Design (DFM) Expertise
We go beyond simply executing design specifications—we optimize them. The Xtproto engineering team possesses deep expertise in CNC machining for battery components, enabling the seamless integration of complex electrochemical designs with high-volume, cost-effective production methods.
We analyze your CAD files within hours, identifying potential thermal bottlenecks, high-stress geometries, or burr-prone zones before cutting begins.
Expert guidance on balancing conductivity, structural weight reduction, and dielectric insulation using optimal battery-grade metals and plastics.
Our engineers optimize your part designs during rapid prototyping (3–5 days) to ensure they are fully ready for automated mass production.
CNC Machining Factory for Battery Components
Spanning over 160,000 square feet, Xtproto’s in-house CNC machining facility is a large-scale, highly modernized production hub designed to meet the massive volume and scale requirements of the global battery manufacturing supply chain. Our expansive floor plan has been meticulously engineered to optimize material flow, with a clear, strict separation between heavy-duty structural machining and high-precision, electronics-grade manufacturing.
- High-Capacity Multi-Axis CNC Fleet:Equipped with dozens of high-speed 3-axis, 4-axis, and 5-axis CNC milling and turning centers running 24/7 for massive throughput.
- Large-Format Machining Centers:Specialized large-bed CNC routers and mills designed to handle oversized battery trays and long-length aluminum liquid cooling plates.
- Integrated Surface Treatment Lines:In-house, automated finishing bays for dedicated aluminum anodizing, powder coating, and selective copper plating.
- Automated Post-Processing Hub:High-efficiency micro-deburring, laser cutting, and specialized cleaning systems to ensure high-volume, ready-to-assemble delivery.
Rapid CNC Machining for Battery Components
Achieving the perfect balance of safety, precision, and high-quality finishing is often hindered by one final challenge: time. In the fast-paced battery industry, traditional lead times—spanning several weeks—can disrupt product deployment schedules. Our agile CNC machining process for battery components eliminates this bottleneck, offering a solution tailored for both rapid prototyping and seamless scaling to full-scale production. We provide expert DFM (Design for Manufacturing) feedback within hours of receiving your design, streamlining your engineering phase and delivering fully functional, battery-grade CNC prototypes in as little as 3 to 5 days. We ensure that your journey—from initial validation to volume production—is fast, safe, and perfectly aligned with your product’s time-to-market window.

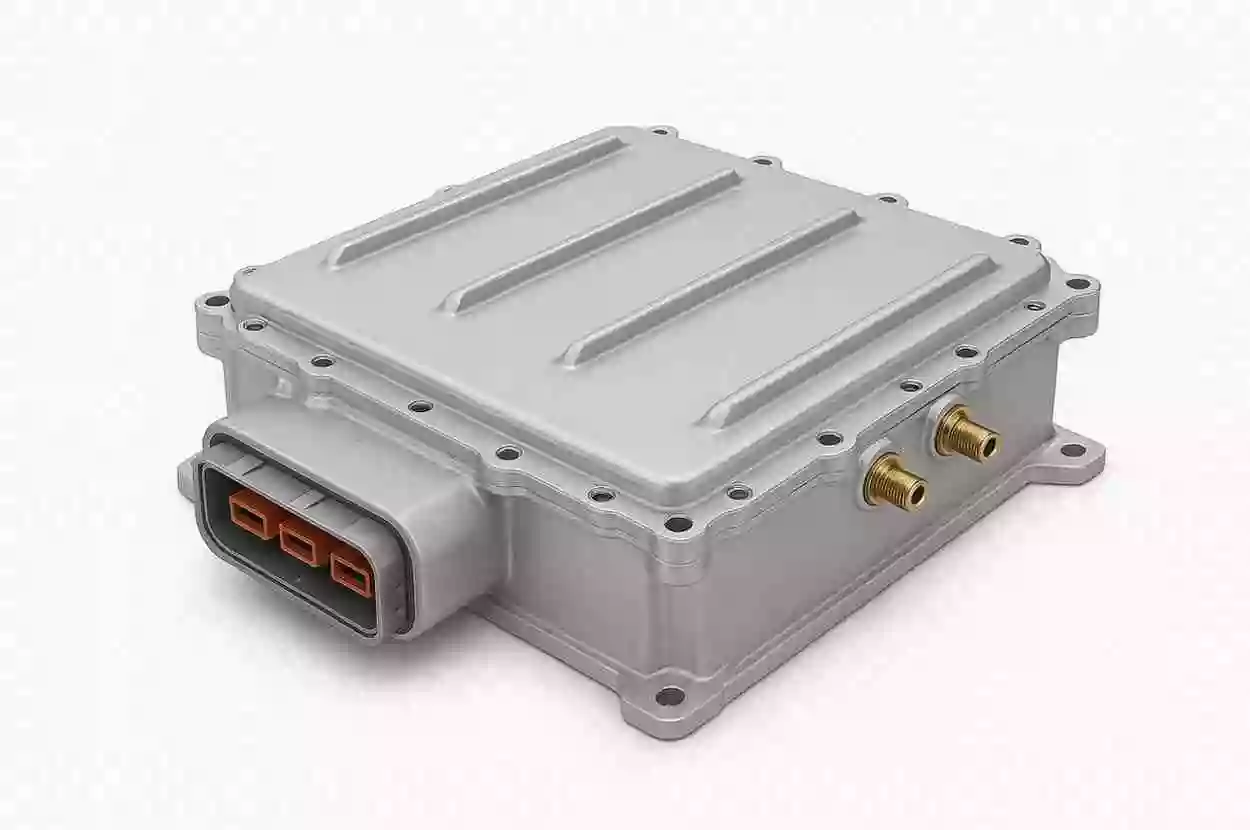

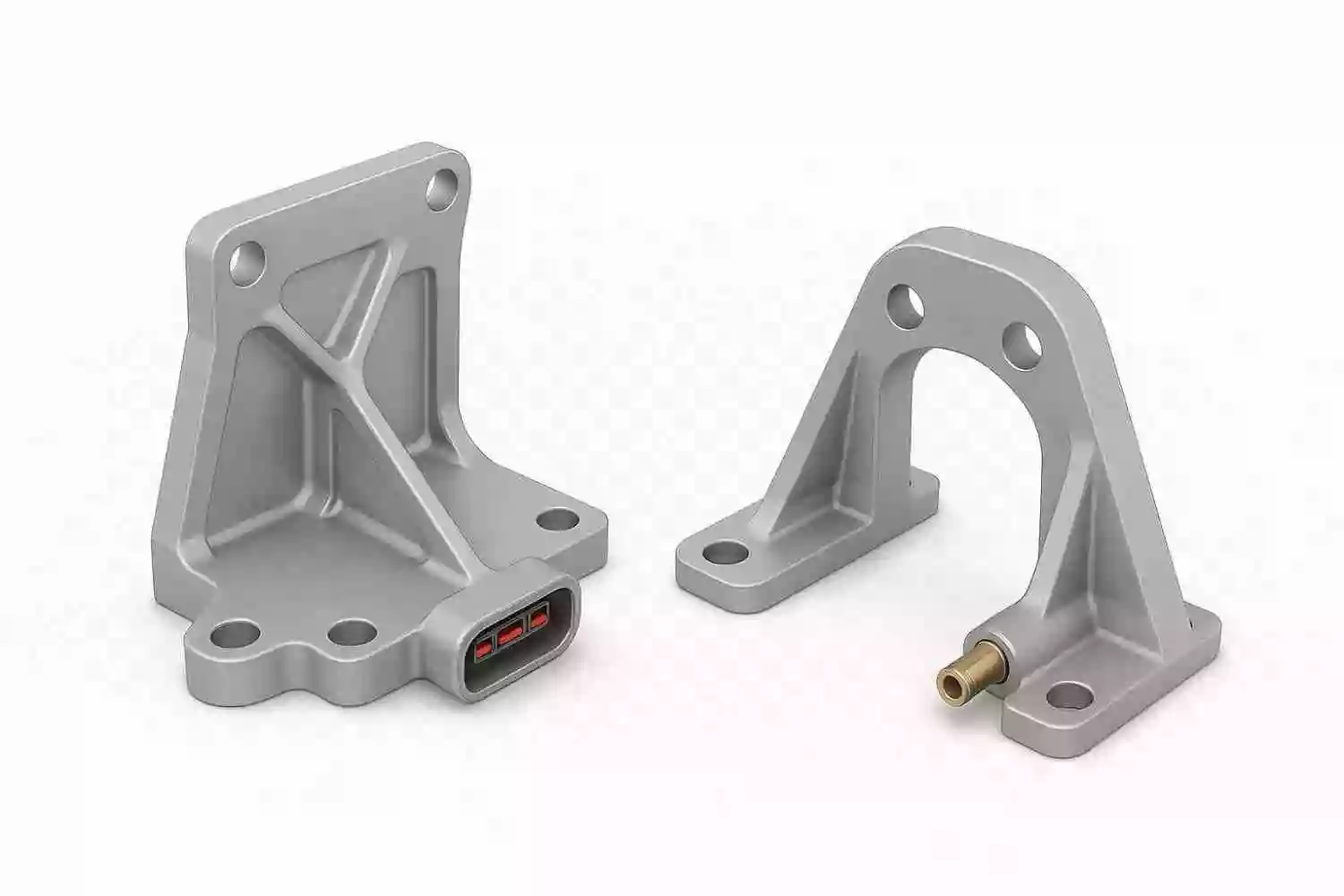

Our CNC machined battery components
Technical Specifications & Commitments
We back our manufacturing with strict, legally binding operational metrics. Here are the precise technical and commercial boundaries we guarantee for every battery project:
- Dimensional Tolerance:Down to ±0.01 mm on critical multi-axis CNC dimensions.
- Geometric Tolerance:Precision flatness, parallelism, and true position down to ±0.02 mm for cooling plates and sealing interfaces.
- Surface Roughness (Ra):Standard Ra 1.6 μm to Ra 3.2 μm (as-machined); ultra-smooth finishes down to Ra 0.4 μm available for precision sealing zones.
- Prototyping Lead Time:Rapid turnarounds shipped within 3 to 5 business days for urgent R&D validation.
- Production Delivery:Executed strictly in accordance with the signed contract schedules—guaranteeing on-time tier-1 supply chain alignment.
CNC Machining Capabilities for Battery Components
Our engineering capabilities are fully optimized to address the unique requirements of various battery components. We offer advanced CNC machining solutions specifically designed for battery components, focusing on achieving precise flatness tolerances—essential for uniform heat dissipation—as well as the high-precision machining required for high-voltage isolation. Our specialized production environment ensures that the machining of battery enclosures and related components is 100% free of contamination, while also eliminating micro-burrs that could otherwise cause internal short circuits. With a robust production system engineered to meet the stringent parameters of electrochemical systems, we deliver certified reliability to support the large-scale manufacturing and assembly of battery components.
Supplier of CNC-Machined Battery Components
Bringing battery products to market rapidly requires the swift production of high-precision, CNC-machined components. The Xtproto team specializes in reconciling tight launch schedules with the need for extreme precision, ensuring that components perform exactly as intended from the very first run. We employ specialized stress-relief techniques to prevent metal deformation during the CNC machining of battery components, guaranteeing a strict surface flatness of ±0.01 mm. Furthermore, we achieve surface roughness as low as Ra 0.4 μm—minimizing thermal contact resistance—while utilizing high-precision milling processes to create sealing grooves that ensure absolute isolation between high-voltage electronic components and fluid networks.
Automated Deburring Capabilities for CNC-Machined Battery Components
With Xtproto’s CNC machining capabilities for battery components, we directly address the most critical safety risks inherent in the engineering of these parts. Machining highly conductive metals requires more than just standard cutting processes—it demands absolute contamination control. We tackle this common industry safety challenge at the source by employing automated micro-deburring, specialized edge-radiusing, and dedicated, material-specific machining platforms to prevent cross-contamination. This ensures that every edge is perfectly rounded and free of defects. Before leaving our facility, all components undergo rigorous testing, transforming our precision machining expertise into a definitive guarantee of electrical safety for high-voltage systems.
Precision CNC Machining for Battery Components
Ensuring a safe electrical environment is only the first step; battery components require structural perfection. We eliminate structural risks through micron-level geometric control. By utilizing multi-axis CNC machine tools to achieve a flatness tolerance of ±0.01 mm, we ensure optimal surface contact, which facilitates uniform heat dissipation. Furthermore, through integrated real-time CMM (Coordinate Measuring Machine) inspection, our machining process guarantees a flawless sealing interface, effectively isolating high-voltage battery cells from the liquid-cooling network.
One-Stop CNC Machining and Post-Processing Services for Battery Components
When the physical tolerances of CNC-machined battery components are met, the dual requirements of localized electrical conductivity and overall electrical insulation must also be addressed. If your current production process for these components relies on a fragmented supply chain—with parts moving between various machine shops and external coating providers—you face an increased risk of component deformation and contamination. Xtproto integrates the entire production process, housing a comprehensive range of advanced equipment under one roof. This seamless workflow ensures that your components are not only ready for immediate assembly but are also engineered to perform flawlessly within the demanding electrochemical environments for which they are intended.
Uncompromised Quality & Compliance
At Xtproto, quality is not merely an inspection performed after the CNC machining of battery components; it is an engineered process integrated into every stage of manufacturing. We strictly adhere to ISO 9001:2015 and IATF 16949 automotive industry standards, providing the comprehensive data transparency and rigorous traceability you require.
Equipped with high-precision Coordinate Measuring Machines (CMM) to verify ±0.01 mm flat-tolerance geometries on cooling plates and trays.
Dedicated, climate-managed zones for copper and polymer machining to completely eliminate cross-contamination.
Electrical isolation testing and pressure-leak testing to guarantee zero-leakage and zero-short-circuit performance.
Every batch ships with comprehensive material certifications (MTRs), OQC dimension reports, and full traceability logs.
Design Considerations for Battery Components
At Xtproto, we review your CAD files against four core Design for Manufacturability (DFM) principles to balance performance, safety, and cost:
- Preventing Burrs via Geometry:We optimize internal corner radii and shapes to eliminate the microscopic sharp burrs that cause electrical short circuits.
- Balancing Wall Thickness:We calibrate wall thickness thresholds to ensure thin aluminum or copper parts do not warp or deform during high-speed CNC cutting.
- Monolithic Functional Integration:We mill complex features—like cooling channels, sealing grooves, and valve seats—into a single piece to eliminate multi-part leak paths.
- Minimizing Multi-Setup Clamping:We design parts to be machined in a single setup on multi-axis CNCs, preventing tolerance stack-up and ensuring perfect alignment.
Material Options
We source and machine a comprehensive inventory of certified, high-purity materials specifically engineered to withstand the thermal, electrical, and mechanical stresses inside advanced battery packs:
High-Conductivity Metals
- Copper (C101, C110):Pure, high-conductivity copper optimized for high-voltage busbars and battery terminals.
- Aluminum (6061, 3003, 5052):Lightweight, thermal-grade aluminum alloys ideal for liquid cooling plates, structural enclosures, and modules.
Dielectric Plastics & Composites
- FR4 / G10:Heavy-duty, flame-retardant fiberglass laminates engineered for structural battery end plates and cell separators.
- PEEK & POM (Delrin):High-performance, dimensionally stable polymers utilized for precision insulation spacers, shims, and high-voltage connectors.
- Polycarbonate (Flame-Retardant):UL 94 V-0 rated plastics for internal cell barriers and protective shielding covers.
Surface Finishing Services for Battery Components
We provide specialized surface treatments engineered to balance high-voltage electrical insulation, anti-corrosion, and optimal thermal conductivity within the pack:
Why Choose Xtproto for Battery Components Machining?
- Battery-Specific CNC Expertise:We specialize strictly in EV battery components, deeply understanding the exact tolerance and material requirements for packs, trays, and busbars.
- Leak-Free Thermal Machining:Expert processing of liquid cooling plates with flawless sealing grooves, ensuring zero fluid leaks and optimal heat dissipation.
- Extreme Distortion Control:Our specialized fixtures eliminate metal warping during high-speed milling, maintaining strict flatness on long aluminum parts.
- Rapid Fleet Deployment:We combine aggressive prototyping turnaround with massive multi-axis production capacity to get your battery systems certified and to market faster.
- Tier-1 Automotive Quality:Built to survive the road—delivering high-repeatability, burr-free, and structurally perfect components that pass strict EV safety audits.
Applications for Battery Machining Services
- Applications for Battery MachiningElectric Vehicles (EV & PHEV):Precision-machined battery enclosures, lightweight chassis trays, and high-conductivity busbars built to withstand automotive road vibrations.
- Energy Storage Systems (ESS):High-durability structural components and cooling structures for utility-scale, industrial, and residential commercial battery storage.
- Heavy Mobility & Fleet:Heavy-duty battery packs and structural enclosures engineered for electric trucks, buses, marine vessels, and construction equipment.
- Aerospace & eVTOL:Ultra-lightweight, high-tolerance battery housings and thermal plates designed for electric vertical takeoff and landing aircraft.
- Charging Infrastructure:Specialized thermal management housings and high-power liquid cooling parts for ultra-fast charging stations.
FAQ
Potential components include mounting plates, structural brackets, enclosures, cover plates, sensor mounts, connector interfaces, spacers, and certain thermal management components. The appropriate manufacturing process depends on factors such as geometry, material, tolerances, and functional requirements.
Depending on the material and application, surface treatment options include anodizing, passivation, electroplating, powder coating, or other specialized finishes. The chosen treatment must meet requirements for corrosion resistance, dimensional specifications, electrical contact, and assembly interfaces.
Rapid prototyping of battery components via CNC machining can be completed in as little as 2–3 days—especially when working with a specialized partner like Xtproto, which offers expedited services for urgent battery product development projects.
We fully comply with the requirements of various battery component supply chains. Xtproto strictly adheres to the ISO 9001:2015 quality management system. Every shipment includes a comprehensive quality documentation package, such as Material Test Reports (MTR), full-dimensional inspection reports via Coordinate Measuring Machine (CMM), and Certificates of Conformity (CoC). We ensure 100% traceability for heat-treatment batches, from raw material stock to the finished battery component.
Our large-scale CNC milling centers are fully optimized for oversized battery structural components. We are capable of machining long-format aluminum liquid-cooling plates and integrated battery trays, with a maximum continuous machining envelope of 2,500 mm × 1,500 mm (98.4 in × 59.0 in). This allows us to mill large, one-piece side frames, protective covers, and multi-channel cooling structures, while ensuring zero-error precision through multi-station clamping.
For all our machined battery components, we offer rigorous pressure and leak testing tailored to your engineering specifications—including hydrostatic pressure testing or pressure-decay leak testing—to ensure the absolute integrity of all joints and seals. Our standard testing protocols further guarantee that, at maximum operating cooling pressure, the high-voltage cell areas remain completely isolated from the fluid channels.
Xtproto is built for speed and scalability. We provide rapid, custom CNC prototyping for a wide range of battery components—with turnaround times as fast as 3 to 5 days—to support urgent R&D and validation phases, helping you accelerate your time-to-market. Once your design is finalized, our extensive fleet of multi-axis CNC machines and automated in-house finishing lines allow us to scale production seamlessly—from small-batch pilot runs to high-volume, long-term production—ensuring a stable and reliable supply chain throughout the process.
We supply a diverse range of CNC-machined battery components globally, catering to everything from single-unit prototype battery enclosures for early-stage startups to high-volume production runs exceeding 5,000 units for established automotive OEMs. There are no minimum order quantities (MOQ) for R&D components, and we offer competitive pricing for production orders starting at just 25 units.
Ready To Manufacture Your Battery Components Using CNC Machining?
Upload your drawings today and receive a detailed quote within 24 hours. There are no minimum order quantity requirements. From prototyping to mass production, we have you covered.
