Swiss Machining Services

XTPROTO provides Swiss CNC machining for metals and plastics, delivering micron-level precision, multi-axis turning, milling, and drilling with tight tolerances and fast, reliable production.

Custom Swiss Machining

XTPROTO manufactures high-precision, small-diameter components using advanced Swiss CNC machining. By supporting the workpiece with a guide bushing immediately adjacent to the cutting tool, we eliminate deflection and vibration, easily achieving ultra-tight tolerances up to ±0.0001 in (±0.0025 mm) and superior surface finishes on complex, high-aspect-ratio parts.Our “done-in-one” multi-axis setup integrates turning, milling, cross-drilling, and slotting into a single automated cycle—slashing lead times and ensuring absolute consistency. From medical-grade titanium and 17-4 PH stainless steel to high-performance PEEK, we deliver scalable, cost-effective custom manufacturing for the aerospace, medical, and electronics industries.

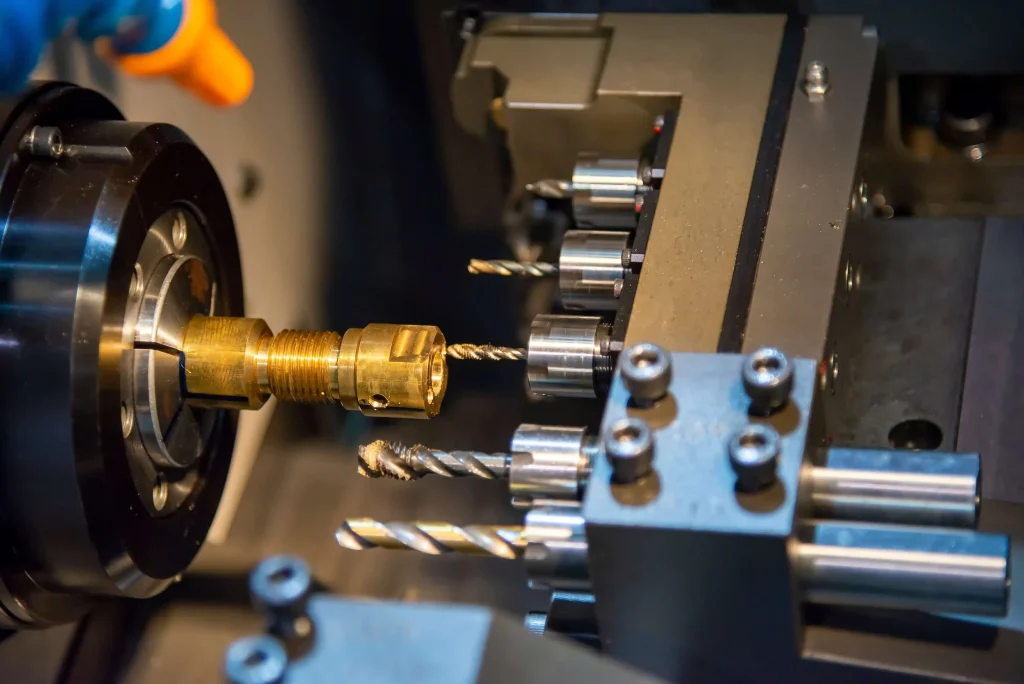

What Is Swiss Machining？

Swiss machining is an ultra-precision manufacturing process engineered for small, complex, and slender components. It utilizes a sliding headstock to feed raw stock through a guide bushing past stationary tools, delivering micron-level accuracy and multi-axis turning, milling, and cross-drilling in a single, continuous setup.

Swiss CNC Machining Capabilities

Our facility utilizes advanced 8-axis Swiss-type lathes equipped with up to 32 live tools and automated bar-feeders. We specialize in machining micro-to-small parts ranging from Ø0.012 in to Ø1.25 in (0.3 mm to 31.75 mm) in diameter, and up to 30 in (762 mm) in length. By synchronizing front- and back-working, we execute complex multi-surface milling, cross-drilling, slotting, and precision thread-whirling in a single automated operation. This configuration allows us to consistently hold linear tolerances of ±0.0005 in (and up to ±0.0001 in for critical features) across high-performance alloys (Titanium, 17-4 PH, Inconel) and engineering plastics (PEEK).

Advantage of Swiss Machining

Massive Fleet Scaling: Over 200 high-precision CNC centers (including Star and Tornos Swiss lathes) operating across a 160,000 sq. ft. automated facility to secure your high-volume supply chain.
Triple-Certified Compliance: Fully certified to AS9100D (Aerospace), ISO 13485:2016 (Medical Devices), and ISO 9001:2015, ensuring zero compliance risk for strict regulatory audits.
One-Stop Hybrid Ecosystem:Seamlessly integrates multi-axis Swiss turning with full-service 5-axis milling, Sinker EDM, and precision CNC grinding to eliminate multi-vendor tolerance stack-ups.
Engineering-Led DFM Support: Backed by a dedicated team of 120+ manufacturing engineers providing rapid Design for Manufacturability feedback to optimize your blueprints and slash production costs.

Solving The Industry’s Toughest Swiss Machining Challenges

Micro-Vibrations & Part Flex on Slender Shafts

By keeping the cutting tool mere millimeters from the guide bushing support, our process completely absorbs lateral forces. This ensures flawless straightness, zero part flex, and ultra-smooth surface finishes on even the highest-aspect-ratio designs.

The "Tolerance Stack-up" Trap in Multi-Stage Processing

Moving delicate parts across multiple traditional machines introduces critical alignment errors. Our 8-axis simultaneous turning centers complete turning, cross-slots, and angled holes in one continuous cycle—guaranteeing perfect concentricity and ready-to-assemble components.

Continuous Precision on Extreme Alloys

Materials like Titanium and Inconel cause rapid tool wear and mid-batch dimensional drift. Our engineering team combats this through optimized toolpath geometry, rigid setups, and real-time in-process gauging, keeping microscopic tolerances unchanged from the 1st part to the 50,000th.

"Done-in-One" Multi-Axis Integration

While maintaining material precision is critical, achieving geometric accuracy on intricate geometries requires advanced multi-axis Swiss machining integration. Complex, micro-scale components often require turning, cross-drilling, and multi-surface milling. Moving these delicate parts across multiple traditional machines introduces catastrophic tolerance stack-up and critical alignment errors every time the workpiece is re-clamped. We resolve this by leveraging advanced 7- to 8-axis simultaneous Swiss CNC turning. By completing back-working, eccentric slots, and angled features in a single, continuous setup, we eliminate secondary handling errors, guarantee perfect concentricity, and slash total manufacturing lead times by up to 40%.

High-Volume Scalability

Executing these complex multi-axis configurations on a single prototype is only the first step; the real challenge lies in scaling this advanced Swiss machining process into high-volume manufacturing. Many machine shops can deliver a flawless prototype but fail to maintain timelines during massive production runs. Our facility houses over 200 high-precision CNC centers, including our specialized Star and Tornos Swiss workshop, operating across 160,000 sq. ft. of climate-controlled manufacturing space. Every Swiss lathe is integrated with automated bar-feeding systems, enabling continuous, 24/7 unmanned production. This robust capacity allows us to transition your project seamlessly from low-volume R&D samples to scheduled monthly contract manufacturing of 100,000+ units without supply chain bottlenecks.

Batch-to-Batch Dimensional Consistency

However, running 24/7 high-volume Swiss production is meaningless without strict dimensional control over the entire fleet. For critical medical implants and aerospace sensors, dimensional drift across a batch is unacceptable. When machining high-performance alloys like Titanium, 17-4 PH, or Inconel, tool wear typically causes microscopic variances over time. We combat this by utilizing the rigid sliding-headstock configuration, which supports the stock right at the cutting boundary to eliminate part flex. Operating under strict AS9100D and ISO 13485 quality systems with real-time, in-process gauging, we ensure that the critical dimensions of your 100,000th part remain identical to the first.

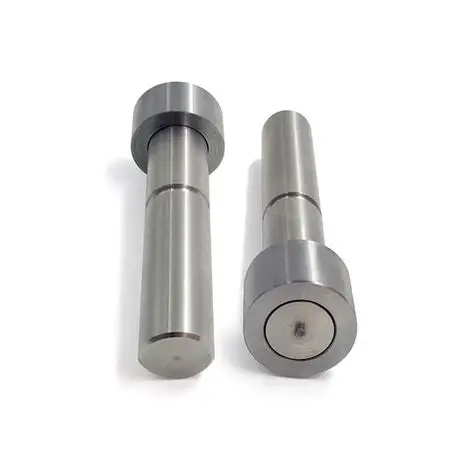

Parts Of Our Swiss CNC Machining Work

Precision Manufacturing Facility

At XTPROTO, our state-of-the-art CNC facility spans 160,000 sq. ft of climate-controlled space, equipped with over 200 high-precision machining centers, including multi-axis Swiss, 5-axis, and standard CNC lathes and mills. We combine advanced automation, robotics, and bar-fed Swiss-type lathes to streamline production, reduce secondary operations, and maintain consistent part quality. Every component is produced under strict ISO 9001:2015, AS9100D, and ISO 13485:2016 quality standards, with full ITAR compliance, ensuring aerospace, medical, and industrial parts meet exacting tolerances. Our experienced team leverages cutting-edge technology to perform multi-axis machining, turning, milling, and finishing operations in a single setup, delivering high-precision, cost-effective solutions from prototypes to high-volume production.

Swiss-Type CNC Lathes

Our Swiss machining workshop is equipped with advanced Star and Tornos Swiss-type CNC lathes, built for high-precision, high-efficiency production of complex small-diameter parts.These multi-axis machines (up to 7+ axes) enable complete machining in a single setup—integrating turning, milling, drilling, threading, knurling, and cut-off operations. This significantly reduces setup time while improving accuracy and consistency.

With a machining range from Ø0.012 in to Ø0.814 in and lengths up to 30 in, our Swiss lathes routinely achieve ultra-tight tolerances of ±0.0001 in, even for high aspect ratio components.We support a wide range of demanding materials, including stainless steel, aluminum, Kovar, and nickel-based alloys such as Inconel, ensuring reliable performance across industries like aerospace, medical, and electronics.

Our Expert Team

Complex Swiss machining projects often involve extreme tolerances, high length-to-diameter ratios, and challenging materials.Where even minor instability can lead to part deflection, inconsistency, or costly rework.Backed by a team of 120+ experienced engineers, XTPROTO provides dedicated engineering support for Swiss-type CNC machining. From design optimization and material selection to process planning and multi-axis execution, we work closely with you to solve manufacturability challenges and ensure stable, repeatable production.The result is greater precision, reduced risk, and faster turnaround,delivering high-quality, production-ready parts that meet the strict demands of aerospace, medical, and other precision-driven industries.

Quality You Can Trust

When complex, micro-scale components demand uncompromising precision, traditional methods often fall short, leading to instability and high scrap rates.XTPROTO specializes in high-precision Swiss Machining, leveraging advanced multi-axis Swiss-type lathes to maintain tight tolerances on even the most intricate geometries. Our AS9100D and ISO 13485 certified processes integrate real-time inspections to ensure absolute consistency across long production runs.This expertise delivers “ready-to-assemble” parts that eliminate secondary operations, drastically reducing lead times and ensuring flawless performance in the most critical aerospace and medical applications.

Comprehensive Swiss & CNC Machining Solutions

To overcome challenges like complex geometries, hard-to-machine materials, and tolerance stack-up, we combine Swiss machining with full-service CNC capabilities to deliver a streamlined, one-stop solution.

CNC Turning

Designed for cylindrical and large-diameter components. Our multi-axis lathes ensure high rigidity, fast cutting, and excellent concentricity for complex rotational parts.

CNC Milling

Perfect for prismatic and multi-surface geometries. 3-, 4-, and 5-axis machining enables complex features to be completed in one setup, improving accuracy and efficiency.

Sinker EDM

Ideal for hardened metals and intricate features. EDM delivers sharp internal corners and deep cavities without cutting stress, ensuring high precision and structural integrity.

Swiss CNC Machining

Ideal for small, high-precision parts with high length-to-diameter ratios. The sliding headstock and guide bushing eliminate deflection, enabling stable machining with tolerances up to ±0.0001 in in a single setup.

CNC Machining

A versatile solution for complex geometries across a wide range of materials. Our multi-axis capabilities enable efficient, high-precision machining for both prototypes and production parts.

CNC Grinding

Precision grinding for ultra-tight tolerances and superior surface finishes on critical features. Ideal for hardened materials, precision shafts, sealing surfaces, and components requiring exceptional dimensional accuracy.

Tolerances & Precision in Swiss CNC Machining

Capability	Specification / Description
Standard Tolerance	±0.0002 – ±0.0005 in (±0.005 – ±0.0127 mm), depending on geometry and material
High-Precision Tolerance	Up to ±0.0001 in
Process Stability	Guide bushing support minimizes deflection and vibration
Machining Capability	Multi-axis turning, milling, drilling, and cutting in one setup
Part Complexity	Ideal for small, complex parts with high length-to-diameter ratios
Repeatability	Advanced CNC control ensures consistent accuracy across production runs
Typical Features	Thin walls, micro features, tight fits, and intricate geometries
Industry Applications	Aerospace, medical devices, electronics, precision instruments

Materials For Swiss Machining

Alloy Steel: 4140, 8620 – commonly used for gears, shafts, and mechanical components.
Aluminum: 2011-T3, 6061-T6 – ideal for lightweight, corrosion-resistant parts.
Brass: 360, 353, Lead-Free Brass – often used in fittings, connectors, and decorative components.
Carbon Steel: 12L14, 12L15, 1117, 1018, 1045, 1141, 1144 – suitable for high-strength and wear-resistant parts.
Copper: C14500 (TeCu), C10200 (Oxy-Free) – used in electrical and thermal applications.
Plastic: Delrin, PEEK – for high-performance insulating or lightweight components.
Stainless Steel: 303, 304, 316, 416, 430 – common in corrosion-resistant and sanitary applications.

Swiss CNC machining Surface Finishing

We not only ensures tight tolerances and complex geometries but also delivers exceptional surface finish across a wide range of metals and engineering plastics.

As-Machined

Directly machined from Swiss CNC lathes with excellent dimensional accuracy and minimal tool marks for functional precision parts.

Polishing

Enhances surface smoothness and visual clarity with refined, low-roughness finishes for precision components.

Bead Blasting & Tumbling

Creates a clean, uniform matte texture while removing burrs and improving surface consistency.

Anodizing, Plating & Passivation

Enhances corrosion resistance, wear performance, and overall surface durability across various metal materials.

Brushing & Satin Finish

Applies controlled directional textures for refined aesthetics and functional surface characteristics.

Custom Treatments

Tailored finishing solutions designed for specific material, industry, or performance requirements.

Why Choose Us For Swiss CNC Machining

Advanced Multi-Axis Fleet

Equipped with premium multi-axis Swiss lathes, our facility guarantees micro-precision and uninterrupted 24/7 automated production.

Tailored Custom Engineering

We optimize every Swiss machining setup to your exact blueprints, strictly adhering to stringent aerospace and medical standards.

Expert Swiss Machinists

Our specialized engineers possess decades of experience in complex Swiss-type tooling, easily translating intricate designs into manufacturable geometries.

Turnkey Production Pipelines

From fast-turn R&D prototyping to massive contract runs, XTPROTO delivers a seamless, cost-effective service including assembly and logistics.

Applications For Swiss Machining Services

Medical Devices

Micro implants, surgical instruments, catheter components

Aerospace

Precision sensors, miniature valves, fuel system components

Automotive

Engine parts, shafts, precision sensors

Defense / Military

Fasteners, fire-control micro components

Electronics & Semiconductors

Micro connectors, sensors, tiny mechanical parts

Industrial Equipment

Small pumps, precision instruments, automation components

Swiss Machining FAQ

How do you prevent material cross-contamination when switching production between medical plastics (like PEEK) and high-performance alloys?

We enforce strict isolation protocols in our workshop. For sensitive medical polymers like PEEK, we utilize dedicated Swiss lathes or implement a rigorous, documented multi-stage deep-clean cycle of the fluid lines, enclosures, and guide bushings. Furthermore, we use separate, material-specific cutting fluids and tooling sets to guarantee that zero metallic micro-particles or cross-contaminants compromise your plastic implants or semiconductor components.

Swiss machining often leaves a cutoff burr or nib. How does XTPROTO deliver "ready-to-assemble" parts without secondary handling?

We eliminate cutoff burrs directly on the machine. By leveraging our 7- to 8-axis simultaneous dual-spindle setups, the sub-spindle synchronized grabs the component during the final cutoff phase. We then execute an automated back-working deburring, chamfering, or face-milling operation on the sub-spindle while the main spindle begins the next part. This ensures a 100% burr-free finish straight out of the machine, eliminating costly manual secondary operations.

For long, slender shafts up to 30 inches, how do you manage surface finish and prevent scratching through the guide bushing?

Long-shaft Swiss turning requires precise material pairing and synchronization. We use custom-fitted, adaptive ceramic or carbide guide bushings calibrated precisely to the ground bar stock's outer diameter. For cosmetic or high-mirror components, we utilize synchronized driven guide bushings that rotate perfectly in tandem with the headstock, completely eliminating the friction, galling, and rotational micro-scratches common in traditional stationary setups.

What are your Quality Assurance (QA) and First Article Inspection (FAI) procedures for high-volume contract runs?

Operating under AS9100D and ISO 13485, we provide full traceability. For every production launch, we generate a comprehensive AS9102 First Article Inspection Report (FAIR). During automated 24/7 contract runs, we utilize real-time, in-process gauging combined with automated tool-wear compensation systems. Critical dimensions are continuously verified using high-resolution optical comparators and automated CMMs according to strict AQL standards before shipment.

Do you have a Minimum Order Quantity (MOQ) for custom Swiss parts, and can you support scheduled Blanket Orders?

While Swiss machining setup costs naturally favor medium-to-high volumes, we do not impose a rigid MOQ; we routinely support low-volume R&D prototyping and bridge production. For scaling enterprises, we offer flexible blanket order contracts with scheduled monthly or quarterly JIT (Just-In-Time) releases. We can hold dedicated safety stock in our facility to buffer your supply chain against sudden demand spikes.

Request Your Free Swiss Machining Quote Today

After receiving your drawings, our engineers will analyze your custom CNC swiss machining parts right away. We actively work with you to clarify all details before providing a quote that is both economical and accurate.
