Advanced Sinker EDM Services

At XTPROTO, our full-service Advanced Sinker EDM (Electrical Discharge Machining) solutions deliver exceptional precision for complex cavities, deep ribs, and intricate geometries that defy conventional CNC milling. By utilizing custom-shaped electrodes and controlled electrical sparks, we remove material from conductive metals without mechanical force, ensuring high accuracy and zero stress,even on fully hardened tool steels and aerospace-grade alloys. Whether for injection mold tooling, precision dies, or complex aerospace components, our CNC sinker EDM capabilities support both prototype and production runs, delivering sharp internal corners, fine surface details, and the tight tolerances required for your most demanding applications.

Sinker EDM Capabilities

Our Sinker EDM capabilities bridge the gap where traditional CNC milling reaches its limits, specifically targeting the manufacturing pain points of deep, narrow ribs, sharp internal corners, and complex blind cavities. By utilizing a force-free spark erosion process, we eliminate the risk of tool deflection and mechanical stress, allowing for the precise machining of fully hardened tool steels and exotic conductive alloys without distorting the material’s integrity. This technology enables the realization of intricate geometries that are otherwise impossible to achieve, ensuring exceptional dimensional stability and ultra-fine surface finishes. From rapid prototyping of high-tolerance aerospace components to the large-scale production of precision injection mold inserts, we provide the technical expertise to transform your most challenging designs into high-performance industrial realities.

Sinker EDM Production Capacity

Our support projects of all sizes, from early-stage prototypes to low-volume runs and full production:

6 Excellent Reasons To Give Rapid Prototyping A Try

Rapid Machining

Turn your concepts into precision CNC prototypes quickly. Our machines handle complex geometries, tight tolerances, and intricate features, so you can validate designs before committing to full production.

Low Volume CNC Machining

Efficiently produce small batches of high-precision components using our CNC capabilities. Ideal for pilot runs, custom parts, or specialty components, with consistent quality and repeatable results.

High volume Production sheet metal parts

High Volume CNC Machining

Scale up for large-volume CNC machining without sacrificing accuracy or surface finish. Our advanced equipment maintains tight tolerances, complex features, and reliable throughput, making it perfect for aerospace, medical, molds & dies, and industrial components.

Sinker EDM Engineering & Technical Expertise

Behind our advanced equipment is a team of seasoned EDM specialists who turn complex CAD data into flawless metal components. Our engineers don’t just run machines; they provide critical DFM (Design for Manufacturing) insight, optimizing electrode design and discharge parameters to prevent thermal distortion and ensure structural integrity. With decades of collective experience in high-precision mold making and aerospace manufacturing, our technicians master the nuances of spark gap control and flush optimization, allowing us to achieve micron-level tolerances in the most challenging materials. By blending craftsmanship with rigorous quality protocols, our team ensures that every project—from one-off prototypes to high-volume production—is executed with repeatable accuracy and technical excellence.

XTPROTO Manufacturing Facility

At XTPROTO, our state-of-the-art factory is designed for precision Sinker EDM and CNC machining across a wide range of metals and alloys. Equipped with high-precision 5-axis machining centers and advanced Sinker EDM machines, we deliver tight tolerances, exceptional surface finishes, and reliable results from prototypes to full-scale production. Our skilled technicians handle complex cavities, sharp internal corners, and intricate geometries efficiently, while accommodating large workpieces or micro-machining projects as needed. With in-house electrode production and ISO-compliant quality processes, XTPROTO maintains full control over precision, lead times, and consistency, serving aerospace, medical, automotive, and tooling industries with high-precision components on schedule and within budget.

stock-photo-male-engineer-operating-cnc-machinery

Engineer Training Apprentices On CNC Machine

xtproto engineers are discussing the customer's custom part design

Quality You Can Trust

Dimensional drift in deep cavities and hidden micro-cracks from the recast layer are common failures in low-end EDM. At XTPROTO, we eliminate these risks through a rigorous, multi-stage quality control ecosystem specifically tuned for Sinker EDM. Our engineers utilize advanced CMM inspection and real-time electrode wear compensation to overcome the challenges of geometric distortion in hardened tool steels and high-strength alloys. By integrating raw material traceability with high-frequency spark gap monitoring, we ensure every intricate rib and sharp internal corner meets micron-level tolerances. The result is a flawless component—characterized by repeatable accuracy, structural integrity, and perfect mating fits—ready for the most demanding tooling, die-making, and critical aerospace applications. For a deeper look into our testing protocols, visit our dedicated Quality Assurance page.

Materials for Sinker EDM

Our Sinker EDM process machines a wide variety of electrically conductive materials, including common metals and high-performance alloys widely used in precision manufacturing.

Material Category	Typical Uses
Aluminum	Lightweight parts for aerospace, automotive, and fixtures
Brass & Copper Alloys	Conductive components, fittings, and electrical parts
Tool Steels & Hardened Steels	Molds, dies, high strength tooling
Titanium & Superalloys	Aerospace, medical, and high performance applications
Tungsten & Carbides	Extremely hard, wear resistant components
Other Exotic Metals	Specialty alloys for demanding environments

Because EDM removes material through electrical discharges rather than cutting force, we can machine hardened, high strength, and difficult to cut metals with precision and minimal distortion, making it ideal for precision tooling, dies, and complex industrial parts.

Sinker EDM Tolerances

Sinker EDM Tolerance	Precision Level	Applications
±0.002″ (±0.05 mm)	Standard	General cavities, typical molds and dies
±0.0005″ (±0.013 mm)	High	Sharp corners, intricate features, precision tooling
±0.0002″ (±0.005 mm)	Ultra-High	Aerospace components, critical molds, high-precision dies
Process Controls	—	Tight electrode alignment & spark parameters for repeatable, consistent accuracy

Sinker EDM Surface Finish

Surface Treatment	Description / Purpose	Typical Applications
Polishing	Improves surface smoothness and appearance	Injection molds, precision tooling
Grinding	Fine leveling and burr removal	High-precision dies, hardened parts
Burnishing	Reduces roughness and increases surface hardness	Tooling, wear-resistant parts
Pickling / Acid Cleaning	Removes oxidation, recast layer, and EDM residues	Stainless steel molds, hardened steels
Electropolishing	Chemical polishing to enhance shine & corrosion resistance	Stainless steel, medical parts
Electroless Plating	Deposits Ni or other alloys for wear resistance	Molds, precision dies
Surface Hardening / Quenching	Improves surface hardness & wear resistance	Tool steels, molds
Tempering / Annealing	Relieves residual stress and prevents cracking	Hardened metals post-EDM
PVD/CVD Coatings (TiN, TiAlN, DLC)	Increases hardness, wear resistance, reduces sticking	High-wear molds, aerospace parts
Sandblasting / Shot Peening	Modifies roughness, increases fatigue strength	Aerospace, automotive tooling
Copper Plating	Enhances conductivity and wear resistance	EDM electrodes, mold surfaces
Micro-Electro Machining Finishing	Ultra-fine surface finish after EDM	Precision dies, micro-molds

Sinker EDM Applications

Aerospace

Precision machining of high-temperature superalloys, such as Inconel and Titanium, for turbine blades and fuel nozzles where eliminating mechanical stress is critical.

Medical

Production of micro-scale surgical instruments and orthopedic implants that require extreme biocompatible precision and burr-free finishes on complex geometries.

Automotive

Specialized in creating high-precision transmission components and complex lighting molds that require consistent, high-accuracy surface textures for mass production.

Electronics

Ideal for manufacturing high-density connectors, micro-heat sinks, and thin-walled shielding components where traditional cutting forces would cause part deformation.

Defense

Crafting high-tolerance components for specialized weaponry and tactical equipment that must withstand extreme environments and rigorous structural requirements.

Energy

Manufacturing critical components for subsea equipment and power plant turbines, ensuring high-pressure resistance and long-term durability in corrosive conditions.

Let's Start Your Project

Turn your ideas into reality with Xtproto’s Sinker EDM expertise. Request a custom quote and see how our precision machining handles even the most complex parts. Serving Central Ohio and the Midwest, we deliver tight tolerances and high-quality results for every project.

What Is Sinker EDM Machining And How Does It Work?

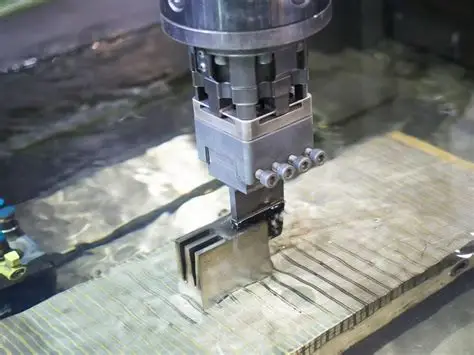

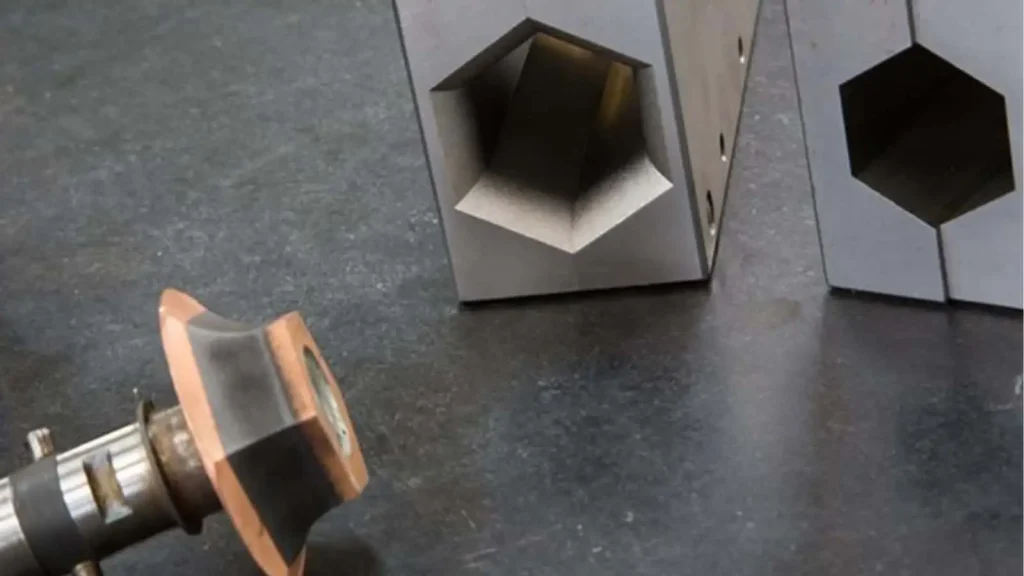

Sinker EDM machining (also called ram or conventional EDM) is a type of CNC machining that shapes metal using controlled electrical sparks instead of cutting tools. A custom electrode and the workpiece are submerged in dielectric fluid, and sparks gradually erode material to create deep cavities, sharp internal corners, and intricate geometries.Because it’s a non-contact process, sinker EDM can machine hardened steels, exotic alloys, and delicate parts without distortion, achieving tight tolerances and precise, repeatable results for tooling, molds, dies, and other precision components.

Sinker EDM Advantages

Non-Contact Machining:Material is eroded electrically, so there’s no physical pressure on the workpiece, protecting thin or delicate components.
Handles Tough & Exotic Materials:Perfect for titanium, Inconel®, tool steels, carbide, and other alloys that are difficult or impossible to cut with conventional tools.
Complex Cavities & Sharp Corners:Capable of producing deep cavities, blind holes, undercuts, and intricate internal features.
High Accuracy & Repeatability:Achieves tolerances as tight as ±0.0002″ with consistent part-to-part results, ideal for tooling, molds, and production components.
Minimal Post-Processing:Fine surface finish often reduces or eliminates the need for secondary polishing, saving time and cost.
Precision on Thin or Fragile Parts:Sinker EDM can safely cut thin sheets or delicate components without distortion or damage.

Sinker EDM Disadvantages

Slower Process:Complex shapes and tight tolerances may require multiple passes and electrode changes, increasing machining time.
Higher Operational Costs:Consumables like electrodes, dielectric fluid, and maintenance contribute to higher running expenses.
Limited to Conductive Materials:Only metals and other conductive materials can be machined; non-conductive materials like plastics or ceramics cannot be processed.
Energy Intensive:The process consumes significant electrical power to generate precise sparks; efficiency depends on optimized parameters.

Why Choose Our Sinker EDM Services？

With over 20 years of experience, Xtproto provides precision CNC Sinker EDM machining with exceptional accuracy, efficiency, and flexibility. From single-piece prototypes to low- and high-volume production, our advanced equipment and expert team handle complex geometries, hard metals, and tight-tolerance components, delivering repeatable, high-quality results. Through rigorous quality assurance and multi-stage inspection, we offer custom CNC solutions for molds, aerospace, medical, and industrial applications, consistently meeting or exceeding the most demanding specifications.Xtproto’s in-house capabilities include complete electrode production, allowing full control over quality, lead times, and precision. We follow ISO-compliant, quality-first processes, ensuring every component meets exacting standards. Whether your project is in aerospace, medical, automotive, or tooling, our factory delivers reliable, high-precision results on schedule and within budget.

Wire EDM vs Sinker EDM

We offer both Wire EDM and Sinker EDM to meet diverse precision machining needs. Wire EDM uses a fine metal wire as the electrode to cut through the workpiece, making it ideal for complex shapes, tight tolerances, and intricate profiles. In contrast, Sinker EDM employs a shaped electrode submerged in dielectric fluid to machine deep cavities, undercuts, and detailed features on larger or harder components. While Wire EDM maintains a constant gap between electrode and workpiece for precise cutting, Sinker EDM removes material gradually, flushing away debris and keeping the workpiece cooled. Choosing the right EDM method depends on part geometry, material, and precision requirements, and our team leverages both processes to deliver high-quality, repeatable CNC EDM components for molds, aerospace, medical, and industrial applications.

Sinker EDM FAQ

What materials can be machined with Sinker EDM?

Any electrically conductive material, regardless of hardness. This includes hardened tool steels, titanium, Inconel, carbide, and stainless steel.

What is the typical lead time?

Lead times vary by complexity and electrode fabrication, but most prototypes are delivered within 1–7 business days. Production runs are scheduled based on volume.

What tolerances can you achieve?

We routinely hold tolerances as tight as ±0.005mm (±0.0002”), depending on part geometry and material stability.

Can Sinker EDM produce sharp internal corners?

Yes. Unlike CNC milling, which leaves a radius equal to the tool's radius, Sinker EDM can achieve sharp 90° internal corners using precision-machined electrodes.

How does Sinker EDM differ from Wire EDM?

Wire EDM uses a continuous brass wire to cut through parts (like a bandsaw), while Sinker EDM uses a custom-shaped electrode to "sink" complex 3D cavities or blind holes into the workpiece.

What surface finishes are available?

We provide a full range of finishes following the VDI 3400 scale, from high-gloss mirror finishes to functional matte textures, reducing the need for manual polishing.

Request Your Free CNC Machining Quote Today

After receiving your drawings, our engineers will analyze your custom CNC machining parts right away. We actively work with you to clarify all details before providing a quote that is both economical and accurate.
