Automotive CNC Machining
Access high-precision CNC machining services from Xtproto, specifically tailored for the automotive industry. Whether you need rapid prototyping or large-scale production, we have you covered. With on-demand manufacturing and highly competitive pricing, you can accelerate product development, minimize downtime, and ensure high-performance results. Contact us today to get a quote.
End-to-End CNC Machining Services for the Automotive Industry
As a leading automotive CNC machining provider, we provide fully customizable, end-to-end solutions for OEMs and Tier‑1 suppliers, covering everything from design support and rapid prototyping to high-volume production and global delivery. Leveraging advanced 3/4/5-axis CNC technologies, multi-material expertise, and a highly skilled engineering team, we deliver ultra-precise, repeatable, and reliable components tailored to your specifications. Our strict quality control, ISO/IATF certified processes, and deep industry experience — including EV and next-generation automotive components — set us apart from standard machining providers, enabling faster product development, consistent performance, and scalable manufacturing solutions under a single roof.

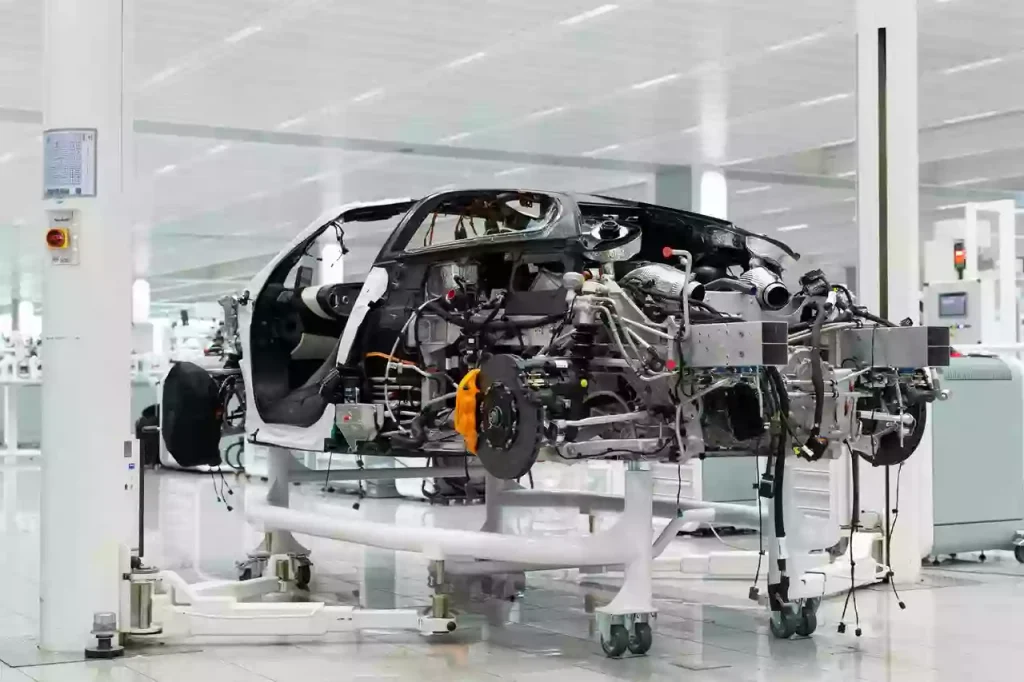

Custom Machining for Automotive
We provide tailored CNC machining solutions for a wide range of automotive clients, including OEMs, Tier‑1 suppliers, and EV manufacturers. Our services address the unique challenges each faces: OEMs benefit from precise, scalable production and seamless engineering collaboration; Tier‑1 suppliers rely on our rapid prototyping, custom part fabrication, and consistent batch quality; and EV manufacturers gain support for complex, high-precision components made from specialized materials. With end-to-end capabilities, advanced multi-axis CNC technology, and strict quality control, we help every client accelerate product development, ensure performance, and maintain reliable supply.
Engineering Expertise in Automotive CNC Machining
Our engineering team, comprising over 20 professionals—including senior design, process, and materials engineers—provides comprehensive support for automotive CNC machining projects. Working in close collaboration with clients, they manage every stage from initial concept and material selection to design optimization, toolpath planning, and process validation, ensuring the successful realization of complex geometries and stringent tolerances. By integrating engineering oversight throughout prototyping, low-volume production, and full-scale manufacturing, the team minimizes production risks, shortens lead times, and maintains consistent quality. With over 20 years of experience supporting OEM and Tier 1 supplier projects, our team combines deep CAD/CAM expertise and advanced tooling technology with strict adherence to automotive industry standards. This ensures the delivery of high-performance, highly reliable components, providing our clients with complete confidence at every phase of production.
DFM Analysis Services Designed for Scalable Automotive Machining Projects
We address complex automotive manufacturing requirements through precision machining, engineering-driven optimization, and scalable production systems. From material selection and Design for Manufacturing (DFM) analysis to 3/4/5-axis machining and rigorous tolerance control (down to ±0.001 mm), every step is meticulously engineered to ensure both precision and manufacturability. Our workflow facilitates a seamless transition from rapid prototyping to full-scale production, enabling the handling of complex geometries and high-performance components while maintaining consistency across production batches. Through in-process inspection and final Coordinate Measuring Machine (CMM) verification, we guarantee stable quality, repeatability, and on-time delivery for demanding applications.

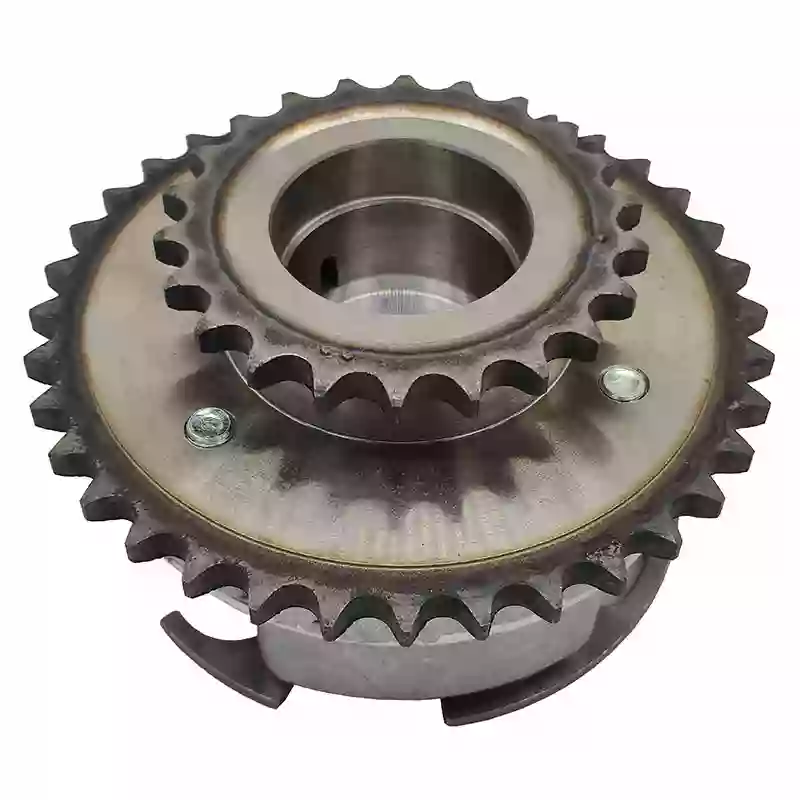

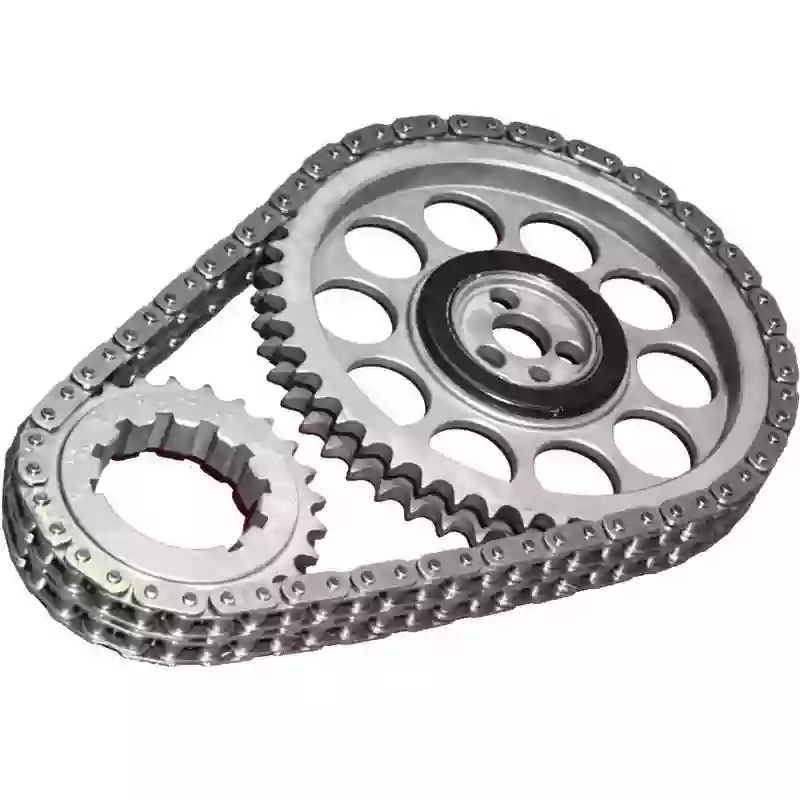

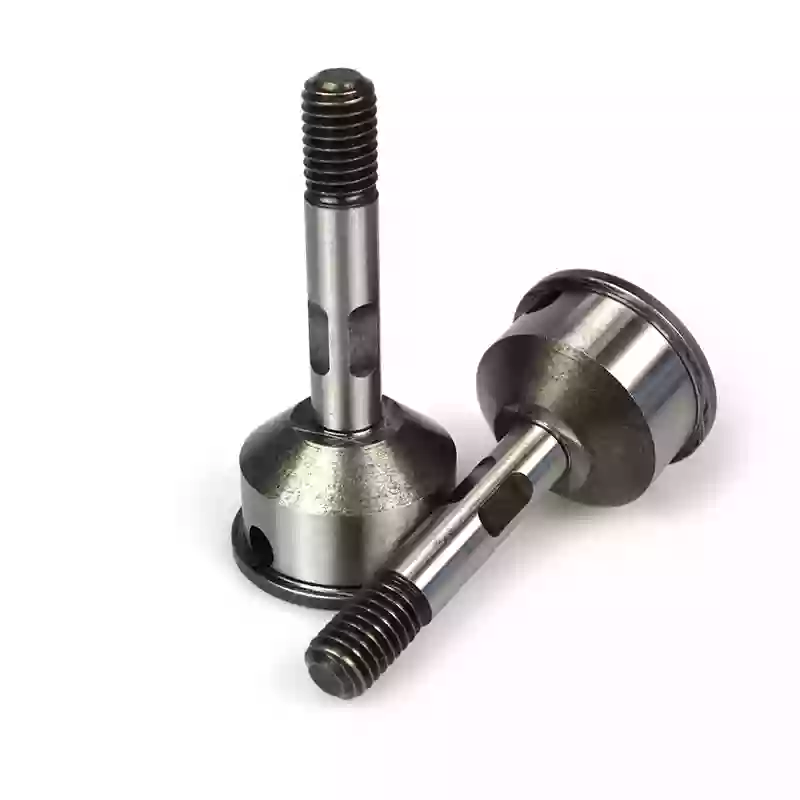

Automotive CNC Machining parts
In addition to our machining centers, Xtproto is equipped with CNC lathes, enabling us to provide high-quality CNC turning services. We utilize a comprehensive five-axis HyperMill CAM system, which features machine tool simulation, multi-axis machining capabilities, and hole-feature recognition. This system also supports integrated milling and turning, helping to reduce setup times for high-volume projects. Leveraging MasterCAM X2 and SolidWorks software, we can rapidly manufacture 3D parts and utilize 2D drafting tools to guide components from the prototyping stage through to final production. Our software suite also includes PC-DMIS CAD+ and Shoptech E2 management software.
Automotive Machining Capabilities
- Ultra-Precision Machining – Tolerances down to ±0.001mm with consistent repeatability
- Multi-Axis Complexity – 3/4/5-axis machining for intricate geometries
- Full Material Capability – Aluminum, steel, titanium, and advanced alloys
- Engineering-Driven Production – DFM support and CAD/CAM optimization
- Scalable Manufacturing – From prototypes to high-volume production
- Automotive-Grade Quality – ISO9001 & IATF-compliant processes
- Fast, Reliable Delivery – Short lead times with stable supply
CNC Machining Services
3-Axis CNC Machining
4-Axis CNC Machining
CNC Milling
CNC Turning
CNC Drilling
Swiss CNC Machining
CNC Machining
5-Axis CNC Machining
CNC Grinding
Manufacturing Capabilities for Complex Automotive CNC Machining Projects
As automotive components become increasingly complex—requiring intricate multi-curved features, tight tolerances, and precise geometric specifications—our advanced machining technologies ensure that every part meets these rigorous demands. We utilize 5-axis CNC machining, turn-mill operations, high-speed cutting, and integrated CAD/CAM workflows to optimize tool paths, control cutting parameters, and guarantee superior surface quality across a wide range of materials. Real-time monitoring, adaptive spindle control, and verification via coordinate measuring machines (CMM) ensure consistent repeatability and precision—from prototyping through to high-volume production. By combining cutting-edge equipment with deep engineering expertise and process optimization, we deliver high-performance, highly reliable components that meet the stringent standards of OEM and Tier 1 suppliers, all while shortening lead times and mitigating production risks.
CNC Machining Facility for the Automotive Industry
Xtproto operates a 160,000-square-foot, state-of-the-art manufacturing facility equipped with a wide range of advanced CNC machine tools—including 3-axis, 4-axis, and 5-axis milling machines, turning centers, Swiss-type lathes, and high-precision drilling equipment—all supported by automated material handling and real-time quality inspection systems. With comprehensive in-house capabilities for prototyping, mold making, and production, we consistently deliver components characterized by tight tolerances, superior surface finishes, and high repeatability. Backed by robust infrastructure and technical expertise, we ensure that every project—whether it involves rapid prototyping, low-volume production, or high-volume manufacturing—achieves the optimal balance of flexibility, speed, and quality.
Automotive CNC Machining Tolerance
| Part Type | Size & Tolerance | Key Benefit |
|---|---|---|
| Structural & Non‑Critical | 50 mm – 500 mm, ±0.05 mm – ±0.1 mm | Cost-efficient production, reliable fit |
| Engine & Transmission | 20 mm – 300 mm, ±0.02 mm – ±0.005 mm | High-precision, smooth performance |
| High-Precision / Custom | 10 mm – 200 mm, ±0.005 mm or better | Critical components, OEM standards |
Partner With Xtproto For Reliable CNC Manufacturing of Automotive Parts
Are you ready to ensure your automotive parts project is completed on time and within budget? Xtproto’s CNC machining process accounts for every aspect of your specific order, allowing us to provide you with precise timelines and cost estimates. Contact Xtproto today to get an accurate quote for your automotive CNC machining needs.
Trusted Quality, Proven Through Time
At Xtproto, quality, reliability, and consistent lead times are the cornerstones that support automotive manufacturing projects. We fully understand the critical importance of dependable components, efficient production, and on-time delivery within the automotive industry. Through precision machining processes, proactive planning, and reliable scheduling, we help our clients meet their production requirements without compromising on quality. Whether supporting early-stage R&D or ongoing production, Xtproto delivers the precision-machined automotive parts our clients trust—on time, to specification, and with unwavering quality.
Automotive CNC Machining Production & Scalability
Our flexible workflows, in-process monitoring, and final inspections ensure efficiency, accuracy, and reliability at every step. Combined with engineering guidance and machining process optimization, we help clients move confidently from concept to full-scale production while meeting strict automotive standards.
Rapid Machining
Low Volume CNC Machining
High-Volume CNC Machining
Quality & Reliability
We integrate quality control into every stage of automotive component production—from the inspection of raw materials and real-time process monitoring to final coordinate measuring and surface evaluation. Our engineering team fine-tunes machining parameters to ensure repeatability, even for complex or mission-critical components. Furthermore, our adherence to ISO 9001 and IATF 16949 standards—supported by robust traceability protocols and rigorous documentation—ensures full accountability throughout the entire process. This holistic approach not only guarantees that parts meet stringent automotive standards but also ensures durability, reliability, and consistent performance from the prototype phase through to mass production. By combining advanced process control, expert engineering oversight, and end-to-end verification, we provide OEMs and Tier 1 suppliers with complete confidence in every part, every batch, and every project.
Advanced Materials for Automotive CNC Machining
We specialize in machining a wide range of automotive materials—from aluminum and steel to titanium, copper, and advanced high-strength alloys. We employ customized cutting strategies, optimized tooling, and precise cooling methods to ensure dimensional accuracy and surface integrity. Our engineers provide guidance on material selection and part design, striking an optimal balance between weight, strength, and cost to achieve peak performance. For complex or critical components, we conduct pre-production trials and fine-tune process parameters to guarantee both manufacturability and consistent, repeatable results—from prototyping through to full-scale production. By integrating in-process monitoring with rigorous final inspection, our deep expertise in materials ensures the delivery of reliable, high-performance parts that meet the demanding standards of the automotive industry.
Material Options for Automotive Machining
| Material & Grades | Typical Automotive Uses |
| Aluminum Alloys: 6061, 7075 | Engine housings, structural parts |
| Steel & Alloy Steel: Carbon/Alloy steel | Gears, shafts, frames |
| Stainless Steel: 304, 316 | Exhaust, housings, fasteners |
| Titanium Alloys: Ti-6Al-4V | High performance parts |
| Magnesium Alloys: AZ91D, AM60B | Lightweight structural parts |
| Copper Alloys: C11000, C93200 | Electrical/thermal components |
| Engineering Plastics: ABS, PC, Nylon, POM | Trim, housings, clips |
| Composites: CFRP, GFRP | Body panels, reinforcement |
Surface Finishing
| Surface Treatment | Benefits & Typical Use |
| Anodizing | Corrosion + wear resistance; color stability. Used for aluminum housings and brackets. |
| Black Oxide / Passivation | Rust protection and dimensional stability. Ideal for fasteners and shafts. |
| Electroplating | Wear resistance and aesthetic finish. Applied to exterior trim and hardware. |
| Powder Coating | Durable protective layer. Used on chassis and body components. |
| Polishing & Deburring | Smooth surface and deburred edges. Suitable for sealing and mating surfaces. |
| Heat Treatment | Increases strength and toughness. Applied to gears and load-bearing parts. |
| Bead/Sand Blasting | Uniform surface texture. Used on casings and cosmetic parts. |
| Chemical Conversion | Provides corrosion protection and coating base. Applied to pre-painted surfaces. |
| Electroless Nickel | Uniform wear and corrosion protection. Ideal for precision and complex parts. |
What Is Automotive CNC Machining?
Automotive CNC machining is a precision manufacturing process where computer-controlled machines cut, mill, and turn metals and alloys into complex, high-accuracy components. Using advanced 3-, 4-, and 5-axis machines, engineers transform digital designs into functional parts, achieving tight tolerances and consistent surface quality. This process enables rapid prototyping, low-volume testing, and scalable mass production, ensuring that every component—from engine parts to chassis and electronic housings—meets the strict performance and reliability standards of the automotive industry.
Benefits of CNC Machining for Automotive
Precision CNC machining delivers high-performance automotive components with exceptional fit, strength, and repeatability. Tight tolerances improve efficiency, reduce wear, and ensure critical systems like engines and brakes meet stringent safety standards. Automated, multi-axis machining streamlines production, minimizes material handling, and supports rapid prototyping, low-volume, and high-volume manufacturing. Its ability to work with advanced materials empowers lightweight, electric, and high-performance vehicle designs. By combining speed, precision, and consistency, CNC machining enhances reliability, cuts costs, shortens lead times, and drives innovation across the automotive industry.
Why Choose Xtproto?
With deep roots in the automotive industry, we have developed comprehensive systems for applications including parts handling, automated deburring and surface finishing, non-contact dimensional inspection, and quality control—covering everything from standardized visual checks to component-level verification. Our 3-axis and 5-axis CNC milling centers deliver high-repeatability machining for critical components with extremely tight tolerances. Furthermore, our extensive expertise in machining hard metals ensures we have the capabilities to produce parts that consistently meet your expectations. Tier 1 automotive suppliers and their supply chain partners rely on Xtproto’s world-class CNC machining solutions to shorten production cycles, enhance machining precision, and boost overall equipment efficiency—ultimately helping them meet the rigorous demands of automotive and truck OEMs.
Precision CNC-Machined Parts and Components for the Automotive Industry
Xtproto manufactures high-precision automotive components designed to withstand the most demanding operating conditions. Our machining capabilities support platforms for internal combustion engine, hybrid, and electric vehicles.
Engine Components
Cylinder Heads, Pistons, Crankshafts
Transmission Parts
Gears, Shafts, Bearings
Steering Components
Rack & Pinion Assembly, Steering Column
Exhaust Components
Manifolds, Mufflers, Pipes
Brake Components
Calipers, Rotors, Pads
Drivetrain Components
Axles, Driveshafts, Universal Joints
Fuel System Components
Injectors, Fuel Lines, Fuel Pumps
Wheel Components
Rims, Hubs, Lug Nuts
Suspension Parts
Linkages, Control Arms, Shock Absorbers
FAQs
We can maintain tolerances within ±0.0005 inches and achieve surface finishes as fine as 16 micro-inches, depending on the specific part and material.
We machine one-off prototypes for R&D purposes and can scale up production to handle small-batch runs as needed.
Our multi-axis CNC machines are capable of handling complex geometries and custom features, suitable for both standard and specialized automotive applications.
Lead times depend on the complexity and quantity of the project. Prototypes can be delivered in as little as one day, while production orders are scheduled according to your project timeline.
We provide inspection reports and material traceability for aluminum, steel, stainless steel, titanium, and engineering plastics, ensuring compliance with automotive industry quality management standards.
Partner with XTPROTO
We are dedicated to providing precise, reliable, and high-performance machining services tailored to a wide range of automotive applications. Contact us today to leverage our expertise, help shape the future of the automotive industry, and experience cutting-edge CNC precision machining solutions for the automotive sector.
