4-Axis CNC Machining Services
Delivering high-accuracy multi-face machining for metals and engineering plastics. From rapid prototypes to scalable production, we ensure efficiency, quality, and consistency in every part.
XTPROTO 4 Axis CNC Machining Services
We specialize in providing high-quality 4-axis CNC machining services to a wide range of industries. Whether you require the machining of complex geometries, multi-surface processing, or the realization of intricate designs, our advanced equipment and highly skilled technicians enable us to transform your concepts into reality with exceptional precision and efficiency. From initial conceptualization to the final finished part, we offer a comprehensive, one-stop solution to meet all your CNC machining requirements. Simply provide us with your specifications or engineering drawings, and we will take full responsibility for the rest—including prototyping, mass production, assembly, and quality inspection. Our unwavering dedication to precision machining, coupled with our firm commitment to rapid delivery, ensures that your projects are always completed on schedule without ever compromising on quality. Leveraging our deep expertise in machining a diverse array of materials—including metals, plastics, and composites—we are equipped to handle production orders ranging from small batches to large-scale volumes. Our advanced 4-axis machining capabilities allow us to tackle even the most challenging part geometries, achieving extremely tight tolerances and superior surface finishes.

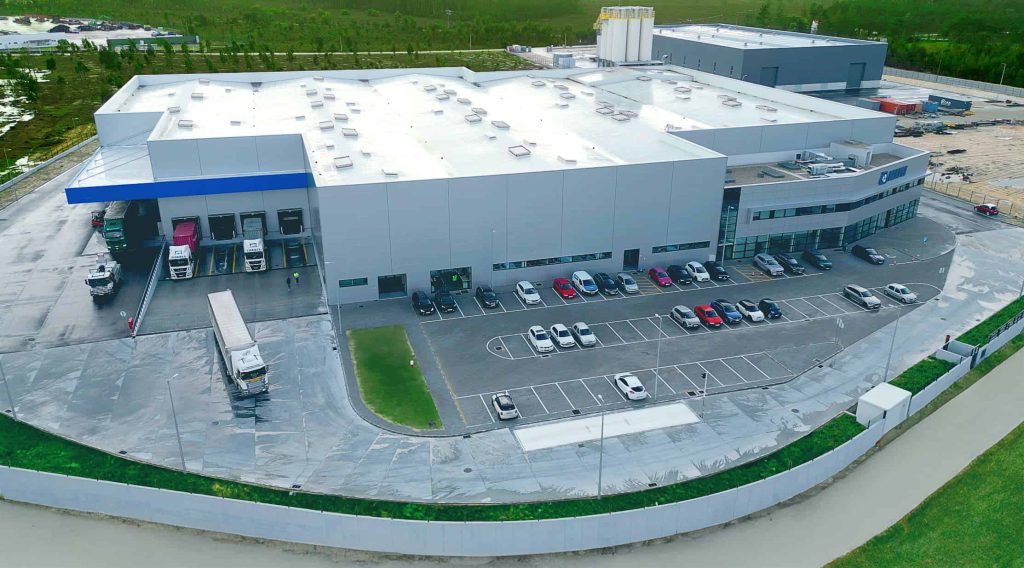

State-Of-The-Art Precision CNC Manufacturing Facility
160,000+ sq ft
Modern Production Facility
600+ CNC Machines
3-Axis, 4-Axis & 5-Axis Machining Centers CNC TurningSwiss Lathes · EDM · Grinding
25+ Automated Production Lines
Integrated Machining & Post-Processing
24/7 Customer & Engineering
Support Responsive Global Service
160,000+ sq ft
Modern Production Facility
600+ CNC Machines
3-Axis, 4-Axis & 5-Axis Machining Centers CNC TurningSwiss Lathes · EDM · Grinding
25+ Automated Production Lines
Integrated Machining & Post-Processing
24/7 Customer & Engineering
Support Responsive Global Service
Our 4-Axis Machining Capabilities
At XTPROTO, we push the boundaries of precision manufacturing through our advanced 4-axis CNC machining capabilities. By integrating cutting-edge technology that enables multi-face machining in a single setup, we effectively eliminate repositioning errors and maximize production efficiency for even the most complex geometries. Our expertise spans a vast spectrum of materials, including aerospace-grade metals and high-performance engineering plastics, all held to rigorous tolerances as tight as ±0.01 mm. This meticulous approach ensures that every component aligns perfectly with your exact specifications. From high-fidelity prototyping to large-scale production, XTPROTO provides a seamless, rapid transition from initial concept to finished product, making us the definitive partner for your most demanding engineering challenges.

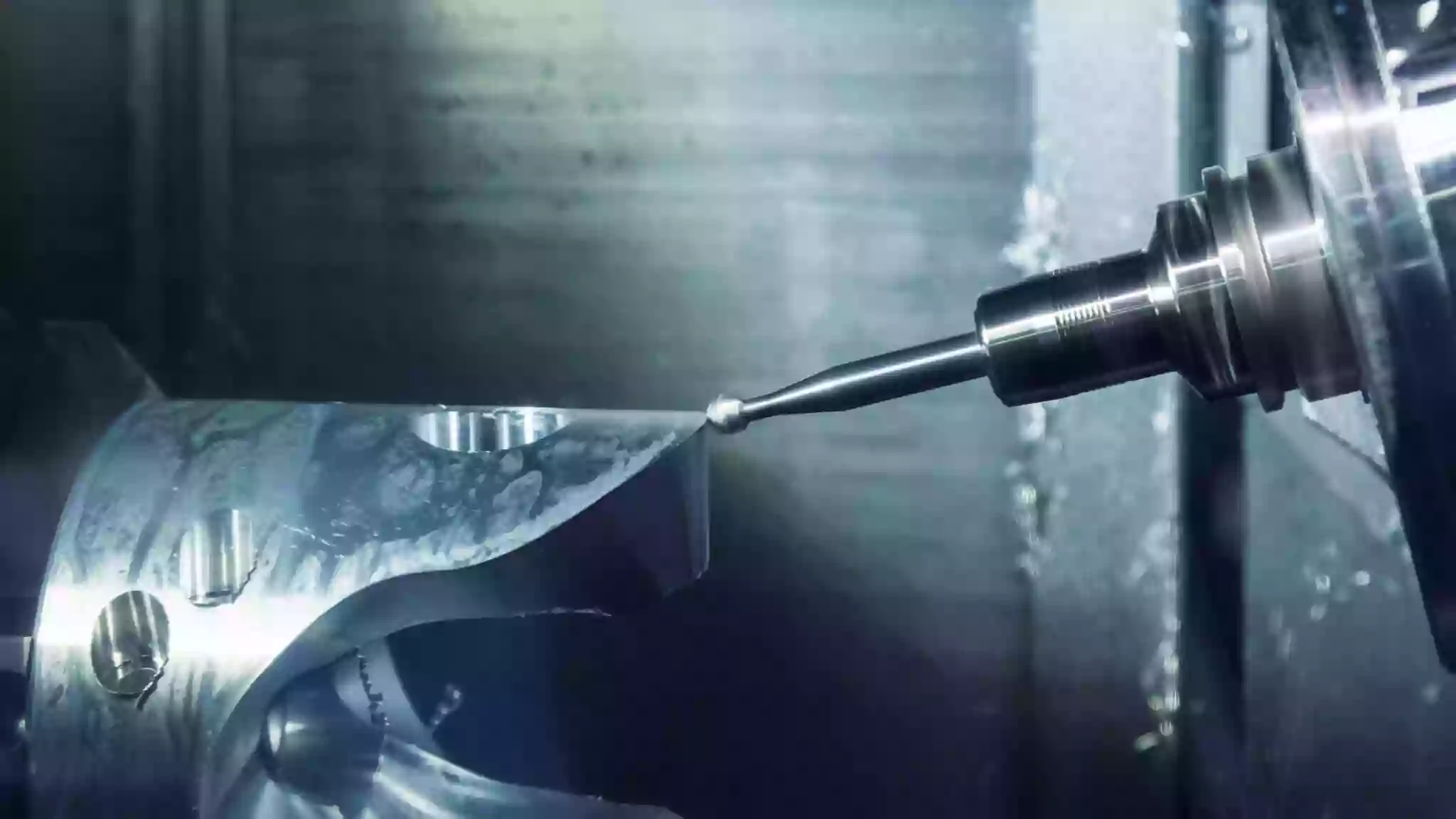

Advanced 4 Axis Machining
At XTPROTO, we prioritize precision and efficiency by utilizing state-of-the-art vertical and horizontal 4-axis CNC machines. Unlike traditional 3-axis processes that require multiple setups, our technology enables multi-face machining in a single operation. This streamlined approach eliminates repositioning errors, ensuring exceptional consistency, superior surface finishes, and significantly faster production cycles for complex, multi-sided parts.
Whether your project involves intricate geometries up to 500 mm or demands rigorous tolerances as tight as ±0.01 mm, our advanced capabilities guarantee absolute reliability. From rapid functional prototypes to large-scale production runs, XTPROTO combines cutting-edge equipment with expert craftsmanship to deliver high-quality components on time and within budget, no matter the complexity.
Precision & Material Flexibility
XTPROTO addresses these issues using high-torque, precision-calibrated 4-axis CNC centers (Vertical & Horizontal) for single-setup indexing. We ensure consistent linear accuracy of ±0.01 mm and surface roughness of Ra 0.8–1.6 μm over a 500 mm work envelope. Our expertise spans high-performance metals (Grade 5 Titanium, 304/316 Stainless, 6061/7075 Aluminum) and high-modulus plastics (PEEK, 30% GF-Nylon, POM-C, Polycarbonate), with optimized spindle speeds and cooling strategies for zero-stress machining.
This results in a 30% reduction in lead times and improved GD&T compliance. Whether for aerospace prototypes or high-volume production, XTPROTO delivers components with superior dimensional stability and surface quality that meet the highest industry standards.
Competitive Pricing & Certified Quality
Balancing premium accuracy with budget constraints is often hindered by high scrap rates, lack of traceability, and the absence of rigorous aerospace-grade certifications, leading to hidden costs in critical component sourcing.XTPROTO eliminates these inefficiencies through AS 9100D and ISO 9001:2015 certified workflows, leveraging 4-axis spindle optimization to minimize material waste. Our quality assurance is anchored by CMM-verified inspections and strict IPQC/FQC protocols, maintaining a 99.8% first-pass yield and full lot traceability for every production run.
This lean manufacturing approach delivers 15%–20% cost savings on complex 4-axis projects without compromising on ±0.01 mm tolerances. Clients receive certified, high-performance parts and comprehensive inspection reports, enabling a seamless, cost-effective transition from prototyping to full-scale production.
Scalable Production
Our 4-axis machining services are designed to scale with your project needs. Whether you require rapid prototyping, low-volume runs, or high-volume production, our facility can adapt to deliver reliable results without compromising precision or quality.
Our flexible manufacturing system, combined with advanced machinery and experienced machinists, ensures that lead times are minimized while maintaining consistent output across batches. This allows us to efficiently support both urgent projects and long-term production plans.
By integrating streamlined workflows and production planning, we help clients accelerate time-to-market while keeping costs competitive, making XTPROTO an ideal partner for projects of any size.
Low Volume CNC Machining
High Volume CNC Machining
Rapid Prototyping
Our Engineering Team
Our engineering team is the cornerstone of our precision CNC machining services. Comprised of skilled engineers and experienced machinists, we combine deep industry knowledge with cutting-edge technology to deliver high-quality, complex parts. By closely collaborating with clients, we ensure a tailored approach to every project, from prototype to production.
Focused on innovation and quality, our engineers excel at solving complex manufacturing challenges, optimizing designs, and ensuring the highest levels of precision. Whether refining geometries, reducing production time, or enhancing material efficiency, our team works diligently to meet your specifications and exceed expectations.
4 Axis Machining Materials We Machine
Metals
- Aluminum
- Stainless steel
- Brass
- Copper
- Titanium
- Mild steel
- Alloy steel
- Tool steel
- Spring steel
- Bronze
- Steel
- Magnesium
Plastics
- ABS
- Polycarbonate (PC)
- Nylon
- Polypropylene (PP)
- POM
- PTFE (Teflon)
- PMMA (Acrylic)
- Polyethylene (PE)
- PEEK
- Bakelite
- Rubber
- Carbon Fiber
- HDPE
- HIPS
- LDPE
- PBT
- PPA
- PAI
- PET
- PPS
- PS
- PVC
- UPE
- Bakelite
- FR-4
Machining Tolerance Standards
XTPROTO verifies all parts using advanced inspection tools to ensure they meet required specifications. If your design does not specify tolerances, our standard guidelines are applied. Our engineers can also review your project to recommend optimal tolerances based on part geometry, material, and functional requirements.
| Tolerance Type & Range | Application / Description |
| Dimensional: ±0.005 mm (±0.0002″) to ±0.1 mm (±0.0039″) | Standard dimensional tolerances suitable for most machining tasks and general parts. |
| Geometric: ±0.01 mm (±0.0004″) to ±0.05 mm (±0.002″) | Controls form, orientation, position, and runout for complex components and critical features. |
| Straightness: 0.005 mm (0.0002″) to 0.02 mm (0.0008″) | Ideal for parts requiring precise straight edges or axes. |
| Flatness: 0.005 mm (0.0002″) to 0.03 mm (0.0012″) | Limits deviation from a true plane, suitable for mating or flat surfaces. |
| Cylindricity: 0.01 mm (0.0004″) to 0.05 mm (0.002″) | Ensures roundness and straightness in precision cylindrical components. |
| Concentricity: 0.01 mm (0.0004″) to 0.03 mm (0.0012″) | Ensures multiple features share a common centerline, ideal for shafts and rotating parts. |
| Perpendicularity: 0.01 mm (0.0004″) to 0.05 mm (0.002″) | Maintains accurate 90° relationships between surfaces or axes. |
Surface Finishes For 4-Axis CNC Machining
At XTPROTO, we offer specialized surface finishing for 4-axis CNC machined components. From smooth, polished finishes to textured or functional coatings, our processes improve part longevity, enhance visual appeal, and ensure consistent performance across all machined faces. Every finish is applied with precision to complement the complexity of multi-sided machining, helping your parts meet both aesthetic and functional requirements.
4 Axis Parts We Machined
- Aerospace Components
- Medical Device Parts
- Automotive Components
- Custom Prototypes
- Complex Geometries
- Multi-Sided Features
- Thin-Walled Parts
- High-Precision Components
Why Choose us For 4-Axis CNC Machining?
- Engineering-Driven Approach: Every project is reviewed by experienced engineers to optimize geometry, tolerances, and manufacturability before production begins.
- True Multi-Sided Precision: Advanced 4-axis systems reduce setups, improve alignment accuracy, and ensure consistent results across complex part geometries.
- Smart Cost-to-Performance Balance: We recommend the most efficient machining strategy to meet your tolerance requirements without unnecessary expense.
- Strict Quality Control: Comprehensive inspection processes ensure repeatable accuracy from prototype through full production.
- Transparent Communication: Clear quotations, realistic lead times, and proactive updates keep your project on schedule.
Ready to Bring Your Design to Life?
Bring your complex designs to life with our 4-axis CNC machining. From rapid prototypes to full-scale production, we deliver precise, high-quality parts with unmatched accuracy—get your project started today.
What Is 4-Axis CNC Machining?
4-axis CNC machining is a milling process where the cutting tool moves along the standard X, Y, and Z axes, while a fourth rotational axis allows the workpiece to turn during machining. This extra axis lets you machine multiple sides of a part in a single setup, saving time and improving precision.
By adding rotational movement, 4-axis CNC machining can handle more complex shapes and intricate features than traditional 3-axis machining. It delivers better surface consistency, reduces setup time, and is ideal for parts with features on multiple faces or curved geometries that require precise alignment. Our CNC machining services make it easy to take advantage of 4-axis machining for high-precision, multi-sided components.
Difference Between 3-, 4-, and 5-Axis CNC Machining
| Axis | Capabilities | Typical Applications / Advantages |
|---|---|---|
| 3-Axis | Moves along X, Y, Z linear axes | Ideal for simple parts with features on a single face; cost-effective for standard milling and drilling. |
| 4-Axis | Adds a rotational axis to 3-axis | Suitable for parts with features on multiple sides; reduces setups, improves alignment, handles moderate complexity efficiently. |
| 5-Axis | Adds two rotational axes to 3-axis | Enables machining of highly complex geometries, tight tolerances, and angled features; reduces setups and maximizes precision for aerospace, medical, and high-end components. |
When to Choose Each Axis
- 3-Axis: Best for simple parts, low complexity features, and projects where cost is a primary concern.
- 4-Axis: Ideal for parts with multiple faces or angled surfaces, offering a balance of precision, efficiency, and cost.
- 5-Axis: Reserved for extremely complex or precision-critical parts that require angled features or ultra-tight tolerances.
Unsure which axis is best for your part? Contact Xtproto engineers for guidance.
Benefits of 4-Axis Machining
When To Choose 4-Axis CNC Machining?
- Multiple-Sided Features: When a part has several faces or angled surfaces, the fourth axis lets you machine them in fewer setups, keeping everything aligned.
- Moderate Complexity: For designs that are more intricate than what a 3-axis machine can handle, but don’t need full 5-axis motion, 4-axis hits the sweet spot.
- Circumferential or Indexed Details: Cylindrical parts with radial holes, slots, or pockets can be machined more accurately with controlled rotation.
- Reducing Setups: If your current process uses multiple 3-axis setups, 4-axis can simplify production and improve consistency.
- Balanced Cost and Precision: It’s more capable than 3-axis while avoiding the extra cost of 5-axis, delivering reliable accuracy for most parts.
FQAs:4 Axis Machining
What is 4-axis CNC machining?
What materials can you machine?
What are the benefits of 4-axis machining?
Which industries use 4-axis machining?
How accurate is your 4-axis CNC machining?
How do you ensure quality in your process?
Request Your Free CNC Machining Quote Today
After receiving your drawings, our engineers will analyze your custom CNC machining parts right away. We actively work with you to clarify all details before providing a quote that is both economical and accurate.
