Medical CNC Machining Services

Precision CNC machining for medical devices, surgical instruments, and implant components. XTProto supports rapid prototyping and low-volume production using medical-grade metals and plastics, delivering tight tolerances, consistent quality, and full manufacturing traceability.

Custom Medical Device CNC Machining Services

When it comes to medical device manufacturing, micron-level precision is non-negotiable. XTPROTO offers specialized CNC machining services engineered for the medical industry, crafting high-performance implants, surgical tools, dental devices, and diagnostic parts. By combining advanced 5-axis milling, Swiss-style turning, and Wire EDM, we successfully navigate complex geometries in biocompatible materials such as titanium, 316L stainless steel, cobalt-chrome, and PEEK. We back our manufacturing prowess with an experienced engineering team and a rigorous quality management system that ensures total traceability and strict compliance with ISO 13485, ISO 9001, ASTM, and FDA standards. Whether you need rapid prototypes to accelerate your R&D or low-volume production with flawless surface finishes, XTPROTO delivers the reliability and regulatory compliance your critical medical applications demand.

What is Medical CNC Machining?

Medical CNC machining is a precision manufacturing process used to produce medical components with tight tolerances, high accuracy, and consistent quality.It enables the machining of metals and engineering plastics into complex parts with smooth surface finishes and reliable performance for medical applications.This process is commonly used for prototypes and production of non-implant components where precision, cleanliness, and repeatability are essential.

Medical CNC Machining Advantages

Micron-Level Precision:5-axis CNC, Swiss turning, and Wire EDM ensure tight tolerances and zero assembly errors.
Complex Micro-Features:Easily machines intricate 3D geometries and fine internal channels for minimally invasive devices.
Biocompatible Materials:Expert machining of titanium, stainless steel 316L, cobalt-chrome, and PEEK for medical safety.

Rapid & Scalable Production:Fast prototyping and reliable low-to-mid volume production to accelerate product launch.
Full Regulatory Compliance:ISO 13485, ASTM, and FDA-aligned workflows with complete traceability and audit-ready QC.
Expert DFM Guidance:Early-stage design consultation to optimize manufacturability, lower risk, and boost performance.

Medical CNC Machining Capabilities

XTPROTO maximizes device functionality through advanced manufacturing expertise, focusing on deep micro-machining and specialized post-processing for critical medical components. Our facility utilizes high-velocity 5-axis cutting and ultra-precise electrical discharge machining to resolve complex toolpaths, allowing for the flawless execution of nested sub-assemblies, sharp cross-holes, and intricate fluidic pathways. We specialized in stabilizing difficult-to-machine high-grade alloys and performance thermoplastics, maintaining absolute geometric stability throughout the cutting cycle. Furthermore, our dedicated finishing protocols—including mechanical texturing, chemical passivation, and electropolishing—are engineered to eliminate micro-burrs and optimize the substrate’s passive layer for immediate clinical deployment. This unified technical capability seamlessly scales from initial design validation to final end-use production, providing medical OEMs with robust, structurally sound parts that excel in demanding surgical and diagnostic environments.

Micro Precision Machining For Medical Components

XTPROTO pushes the boundaries of sub-millimeter manufacturing by specializing in ultra-miniature profiles and high-density micro-features for specialized clinical applications. Designed specifically for the next generation of endovascular components, neurosurgical tools, and micro-implants, our production lines utilize specialized small-diameter tooling and high-frequency wire erosion to clear features smaller than 0.3 mm. We comfortably operate within ultra-tight dimensional limits, maintaining repeatable linear and diametric variances down to the 2-micron threshold across both temper-hardened exotics and fragile medical polymers. By mitigating the unique structural stresses and thermal displacement inherent to micro-scale cutting, our workflows preserve the atomic and structural integrity of the substrate. This dedicated micro-manufacturing focus gives development teams the geometric freedom to scale down complex mechanism designs without sacrificing yield rates, part-to-part uniformity, or functional safety.

Biocompatible Processing for Medical Machining

XTPROTO guarantees clinical-grade surface integrity through advanced chemical and mechanical treatments that optimize the interface between machined substrates and human tissue. Our protocols focus entirely on molecular-level cleanliness, using electrochemical profiling and acid-based passivation to enrich the protective oxide layer and eliminate trace contaminants. These targeted modifications refine surface textures while preserving the precise geometry of delicate micro-features. By isolating these finishing cycles in controlled environments, we eliminate cross-contamination and mitigate biological risks, ensuring compliance with strict international evaluation criteria. This dedicated surface optimization provides developers with non-reactive, sterilization-ready components optimized for immediate clinical deployment.

Why Choose Us For Medical CNC Machining？

Our specializes in medical CNC machining with the precision, responsiveness, and material expertise required for critical healthcare applications. We deliver accurate components with tight tolerances and smooth surface finishes that meet the demanding standards of implants, surgical instruments, dental devices, and diagnostic equipment. Our team provides design for manufacturability (DFM) support and rapid prototype feedback to accelerate development and reduce costly revisions. Through controlled processes and advanced technologies, XTPROTO ensures consistent quality, repeatable performance, and reliable production from prototype to low-volume runs, making us a dependable partner for medical device manufacturers.

Medical CNC Manufacturing Facility

Our operates a 160,000+ sq ft precision machining facility equipped with over 600 CNC machines, including multi-axis mills, Swiss turning centers, and Wire EDM stations, supporting a wide range of industries. Within this environment, dedicated zones and specialized workflows are allocated to medical CNC production, ensuring implants, surgical instruments, dental devices, and diagnostic components are manufactured with micron-level tolerances, tight surface finishes, and full traceability. Climate-controlled production areas, ISO-compliant inspection labs with multiple CMMs, and calibrated fixtures guarantee consistent results for complex geometries and micro-scale features. A team of 120+ engineers and 500+ skilled machinists manages both general production and medical-specific projects, enabling rapid prototyping, low- to mid-volume production, and regulatory-compliant output. By combining overall manufacturing scale with focused medical CNC capabilities, XTPROTO delivers precise, reliable, and repeatable components that meet the strict functional, quality, and safety requirements of the healthcare industry.

Engineering Support & DFM

XTPROTO provides expert engineering support and design-for-manufacturability (DFM) guidance for medical CNC components, helping device designers optimize implants, surgical instruments, dental devices, and diagnostic tools for precision machining, regulatory compliance, and cost-effective production. Our engineering team reviews part geometry, tolerances, material selection, and surface finish requirements, identifying potential manufacturability challenges and suggesting adjustments to improve yield, reduce assembly errors, and ensure functional reliability. Leveraging advanced 5-axis CNC, Swiss turning, Wire EDM, and micro-machining capabilities, we translate complex medical designs into manufacturable components with tight tolerances and reproducible micro-features. By integrating DFM considerations early in the design process, XTPROTO accelerates rapid prototyping, scalable production, and regulatory readiness, allowing medical device manufacturers to bring innovative products to market efficiently and confidently.

Quality Assurance & Certification For Medical CNC Mahcining

Our delivers medical CNC components with uncompromising precision and reliability, backed by AS9100 Rev D and ISO 9001:2015 certification. With extensive experience machining implants, surgical instruments, dental devices, and diagnostic components, we handle parts from micro-scale features to assemblies up to 15,000 lbs, using advanced 5-axis CNC, Swiss turning, and Wire EDM. Our expertise spans a wide range of metals and high-performance alloys—including titanium, stainless steel, cobalt-chrome, aluminum, brass, bronze, Inconel, Hastelloy, Stellite, and PEEK—ensuring high-precision machining across diverse substrates. Every production step is meticulously documented with full traceability, including raw material verification, in-process inspections, CMM measurements, surface roughness testing, and first article inspections, supporting compliance with ISO, ASTM, and FDA standards. XTPROTO combines rigorous quality control with rapid prototyping and scalable production capabilities, delivering medical components that meet tight tolerances, regulatory requirements, and the demanding functional and safety standards of surgical, dental, and diagnostic applications.

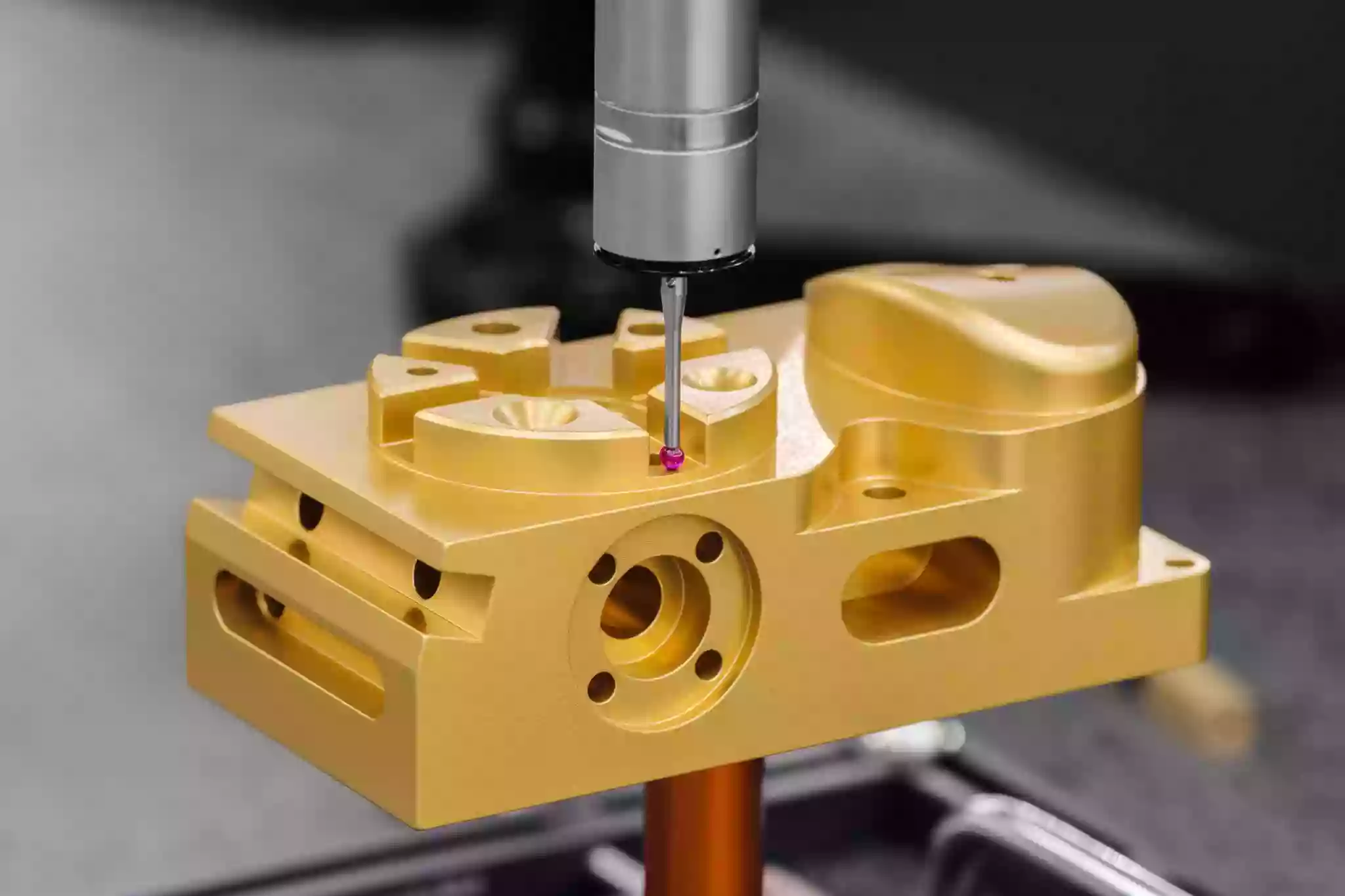

Quality control on milling CNC machine, coordinate measuring machine, Quality control machine

CMM Inspection and Quality Inspection Process 5

CMM Inspection and Quality Inspection Process 3

Medical CNC Machining Processes

Medical CNC 5-Axis Machining

Advanced 5-axis CNC machining for medical implants, surgical instruments, and diagnostic device components, achieving micron-level tolerances, complex 3D geometries, and high-quality surface finishes in titanium, stainless steel, cobalt-chrome, and biocompatible plastics.

Medical CNC Swiss Machining

Precision Swiss-type machining produces micro shafts, dental instrument rods, and catheter components with tight tolerances, fine features, and consistent surface quality in biocompatible metals.

Medical CNC Wire EDM

Wire EDM enables ultra-precise micro features and intricate contours for medical implants, surgical micro-components, and injection/extrusion mold tooling, maintaining tight tolerances and smooth surfaces in hard alloys and titanium.

Medical CNC Micro Machining

Micro-scale CNC machining for minimally invasive devices, micro implants, and dental instrument tips, achieving reproducible micron-level features in metals and biocompatible plastics.

Medical CNC Turning

CNC turning for cylindrical medical parts like surgical handles, screws, and fasteners, supporting biocompatible metals and plastics with controlled tolerances and surface finishes.

Medical CNC Milling

Multi-axis CNC milling for medical implants, surgical instruments, and diagnostic components, achieving micron-level tolerances, complex 3D geometries, and high-quality surface finishes in titanium, stainless steel, cobalt-chrome, and biocompatible plastics.

Medical CNC Machining

Integrated CNC machining services for critical medical devices, delivering high-precision components with micron-level tolerances and superior surface finishes in biocompatible metals and engineering plastics, ensuring full compliance with medical quality standards.

Medical CNC Grinding

Precision grinding for achieving ultra-smooth surface finishes and extremely tight tolerances on surgical and implant components, ensuring dimensional accuracy and biocompatible surface quality.

Medical CNC Drilling & Tapping

High-precision drilling and threading for medical device assembly features, ensuring accurate hole positioning, clean thread formation, and reliable component integration.

Precision & Tight Tolerances

Our delivers medical CNC components with industry‑validated precision, consistently achieving critical tolerances from ±0.01 mm down to ±0.002 mm on complex features for implants, surgical instruments, and diagnostic devices, and in some micro‑critical applications tolerances as tight as ±0.0001″ (≈ ±0.0025 mm) are supported. Leveraging advanced 5‑axis CNC and Swiss turning, we produce complex geometries and tight‑fit assemblies with superior surface finishes (Ra values tailored to function), repeatable across prototypes and low‑volume production. Rigid process control, optimized toolpaths, and thorough inspection protocols reduce post‑processing, minimize assembly variation, and support compliance with ISO, ASTM, and FDA standards, giving medical OEMs confidence in every critical component used in high‑stakes clinical applications.

Materials for Medical Machining

Implant-Grade Titanium:High strength-to-weight ratio and osseointegration, machined precisely without tool degradation.
Surgical Stainless Steel:High hardness and fatigue resistance, processed with strict thermal control to maintain corrosion resistance.
Cobalt-Chrome Alloys:Exceptional wear resistance for articulating joints, shaped utilizing rigid work-holding to handle extreme toughness.
Medical-Grade PEEK:Excellent dimensional stability and radiolucency, machined using specialized chip-breaking techniques to prevent warping.
Biocompatible Polymers:High chemical resistance and sterilization endurance, finished with ultra-sharp tooling for burr-free edges.

Surface Finishes For Medical CNC Machining

Surface Finish	Key Details
Electropolishing	Electrochemical polishing smooths metal surfaces, reduces micro-roughness (Ra 0.2–0.5 μm), improves corrosion resistance, sterilization readiness, and biocompatibility. Materials: Titanium, Stainless Steel, Cobalt-Chrome. Applications: Implants, surgical instruments, dental tools.
Passivation	Chemical treatment enhances oxide layer, removes free iron, prevents corrosion. Ra 0.3–0.8 μm. Materials: Stainless Steel, Cobalt-Chrome. Applications: Surgical instruments, diagnostic devices.
Deburring	Removes burrs and sharp edges to ensure safety, prevent contamination, and maintain assembly fit. Materials: Metals & Polymers. Applications: Micro implants, surgical instruments, dental components.
Micro-Finishing / Polishing	Precision polishing for micro-scale features and complex geometries. Ra 0.2–0.6 μm. Materials: Titanium, Stainless Steel, PEEK. Applications: Catheter components, minimally invasive instruments.
Anodizing (Optional)	Electrochemical oxide layer formation enhances corrosion and wear resistance; optional color coding for identification. Ra 0.4–1.2 μm. Materials: Titanium, Aluminum. Applications: Surgical tools, device housings.

Medical CNC Machined Parts

Medical CNC Machining Applications

Precision manufacturing for medical devices delivers high-quality components in metals, plastics, ceramics, and composites.While some plastic parts can be molded or extruded, CNC machining is often used for the parts themselves or the molds required in production. XTPROTO leverages advanced CNC technologies to deliver complex medical components with tight tolerances and consistent quality.

Medical Devices

CNC machining is widely used to produce components for medical devices, including diagnostic equipment, monitoring systems, and therapeutic devices such as stethoscopes, ventilator parts, ECG machines, X-ray and MRI systems, blood pressure monitors, catheters, stretchers, hospital beds, defibrillators, and prosthetics. These components can be machined from stainless steel, aluminum, titanium, PE, PVC, and nylon, using advanced 5-axis CNC, Swiss turning, or standard milling, while parts requiring molds for production can be manufactured with high-precision CNC or EDM mold fabrication.

Dental Instruments

Dental instruments including probes, scalers, mirrors, retractors, drills, and suction devices are manufactured with exacting tolerances using stainless steel or titanium for metal components and PVC or PE for plastic parts. CNC machining and Swiss turning are used for complex metal shapes, while EDM-fabricated molds enable high-precision injection or extrusion of plastic components, producing dental instruments that meet stringent medical standards.

Surgical Instruments

Surgical instruments such as scissors, scalpels, forceps, clamps, and retractors require smooth, contamination-free surfaces, precise geometries, and biocompatible materials. They are commonly machined from surgical stainless steel or titanium using 5-axis CNC, Swiss turning, or milling, providing consistent high-precision performance suitable for critical medical procedures.

Medical Implants

Implantable components such as joint replacements, spinal screws and rods, pacemakers, drug delivery devices, and coronary stents demand extremely tight tolerances and biocompatible materials, including titanium, titanium alloys, and cobalt-chrome alloys. These components are typically produced using 5-axis CNC milling or EDM, ensuring the precision and surface quality required for safe implantation.

FAQs

What types of medical components can you produce?

We manufacture a wide range of precision medical parts — including implants, surgical instruments, dental devices, diagnostic components, and catheter parts — using multi‑axis CNC, Swiss turning, and Wire EDM to meet complex geometries and tight tolerances.

What materials do you support for medical projects?

We work with medical‑grade metals and polymers such as titanium, stainless steel 316L, cobalt‑chrome alloys, PEEK, and other biocompatible plastics, selected for their strength, corrosion resistance, sterilization readiness, and regulatory suitability.

What tolerances can you achieve on medical parts?

Typical tolerances range from ±0.01 mm down to ±0.002 mm, with support for micro‑critical features in the low micron range depending on geometry and inspection methods — essential for implants and precision surgical components.

How do you ensure quality and regulatory compliance?

All processes are performed under rigorous quality control and traceability, including documented inspections, CMM measurement, and certified procedures that align with ISO 10993, ISO 13485, ASTM, and FDA standards to meet medical device requirements.

Do you support prototypes as well as production runs?

Yes — from rapid prototypes to low‑volume production, our workflows are designed for consistent results, repeatability, and predictable delivery. Early DFM reviews help identify manufacturability challenges and reduce risk before full production.

Request Your Free Medical CNC Machining Quote Today

After receiving your drawings, our engineers will analyze your custom CNC machining parts right away. We actively work with you to clarify all details before providing a quote that is both economical and accurate.
