Wire EDM Services
High‑accuracy wire cutting for complex geometries, burr‑free finishes, and tight tolerances that traditional CNC machining can’t achieve. Ideal for aerospace, medical, automotive, and industrial components made from hard or exotic metals.

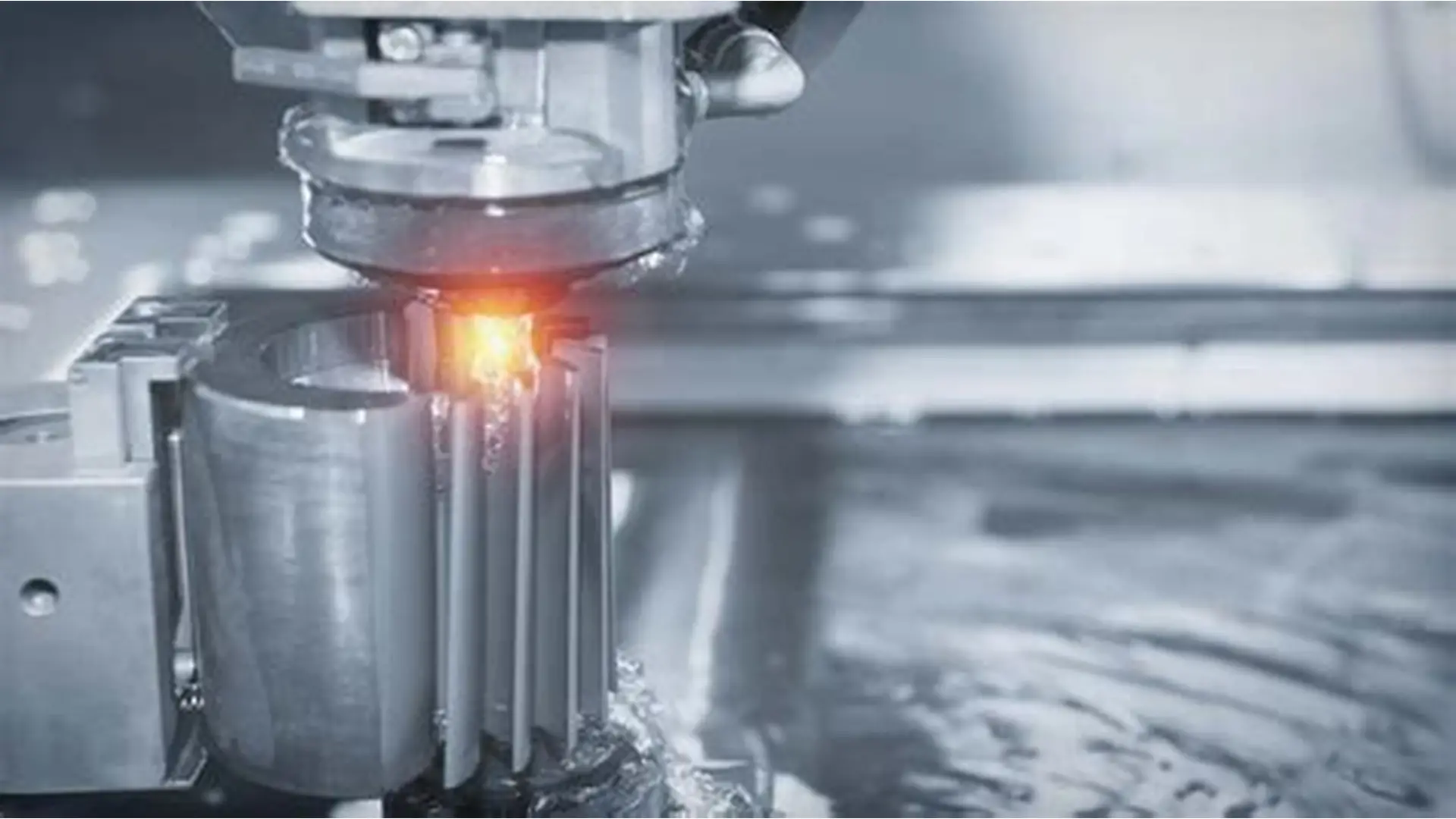

Wire EDM Machining Services
In high-stakes manufacturing, traditional CNC tools often reach their physical limits when faced with ultra-hard materials or intricate internal geometries that require absolute structural integrity. XTPROTO eliminates these constraints through advanced Wire Electrical Discharge Machining (EDM), a non-contact spark-erosion process that ignores material hardness to achieve repeatable accuracy up to ±2 µm (0.0001″). By utilizing specialized wire diameters as small as 20 µm (0.0008″), we can execute complex profiles, razor-sharp internal corners, and narrow slots in materials such as tungsten, carbide, tool steel, and titanium—features that are physically impossible to produce with conventional milling. The result for our customers in the medical, aerospace, and electronics sectors is a seamless transition from specialized prototypes to consistent production runs, delivering high-performance components with flawless surface finishes and micron-level detail that perform exactly as intended in the field.

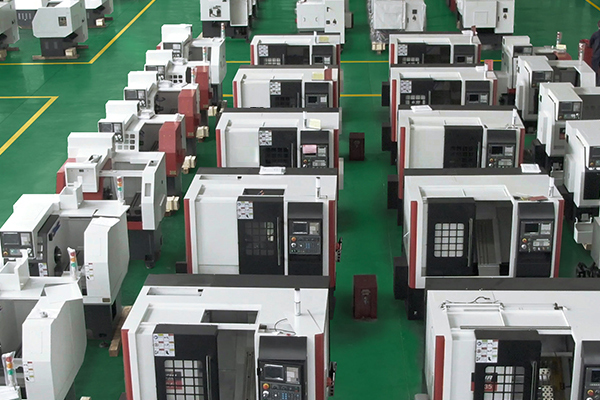

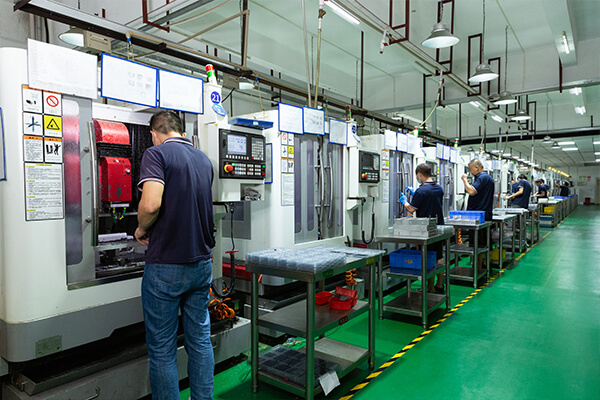

Our Wire EDM Factory
With over 20 years of experience, XTPROTO has been delivering precision Wire EDM and electrical discharge machining services for complex metal components and custom tooling. we have continuously expanded and upgraded our EDM capabilities, now operating a fleet of advanced Mitsubishi Wire EDM machines to produce molds, dies, and two-dimensional metal parts with micron-level tolerances. Our highly trained engineers and machinists collaborate closely with clients to develop tailored machining solutions, whether for high-volume production or specialized prototypes, and we have the flexibility to scale production from mold fabrication to large part orders efficiently. Leveraging decades of industry expertise and cutting-edge technology, we consistently deliver high-precision components from challenging materials such as Inconel, tool steels, and specialty alloys, meeting the strictest specifications while maintaining competitive pricing and rapid lead times. At XTPROTO, our commitment to quality, innovation, and customer collaboration ensures that every Wire EDM project meets global standards and the exacting needs of aerospace, medical, automotive, and industrial applications.
Why Work With Us For Wire EDM？
Quality Assurance
Strict process controls and inspections for reliable, repeatable parts.
Advanced Technology
Modern Wire EDM equipment and CAD/CAM systems for complex geometries.
On-Time Delivery
Efficient planning to meet project deadlines and production schedules.
Professional Facilities
Clean, organized machining environment ensures stable, high-quality outcomes.
Customer-Focused
Tailored solutions and support to meet your unique project needs.
Wire EDM Capabilities
Maintaining dimensional stability and surface integrity in thick or ultra-hard metal sections is a persistent challenge for standard machining, often leading to tool deflection and thermal distortion. XTPROTO eliminates these manufacturing risks by deploying advanced 4-axis Wire EDM technology capable of processing workpieces up to 16″ thick with a repeatable accuracy of ±2 µm (0.0001″). Our facility utilizes high-performance submerged cutting systems and auto-threading technology to ensure maximum thermal stability, allowing us to execute intricate contours and high-taper geometries that remain perfectly consistent across every part. By integrating small-diameter wires (0.004″) with sophisticated multi-pass power supplies, we achieve superior surface finishes and micron-level detail even during complex interrupted cuts. The result for our customers is a high-efficiency production model that supports everything from specialized prototypes to continuous “lights-out” high-volume manufacturing. This systematic approach maximizes material utilization and drastically reduces lead times, delivering production-ready components that meet the most rigorous aerospace and medical standards with absolute precision.
Quality Standards & Certifications
In high-precision Wire EDM, even a micron-level deviation can lead to catastrophic assembly failure or compromised mechanical performance in the field. XTPROTO eliminates these quality risks by integrating a rigorous ISO 9001:2015 certified quality management system into every stage of our production workflow. From initial material verification to final dimensional inspection, we employ advanced metrology tools—including CMM (Coordinate Measuring Machines), SPC monitoring, and high-resolution optical inspection systems—to verify that every complex contour meets your exact ±2 µm (0.0001″) specifications. By maintaining strict process control and comprehensive Quality Assurance procedures, we ensure absolute batch-to-batch consistency and structural reliability. The result for our customers is the delivery of high-performance components that not only meet but exceed the most demanding industry standards, providing total confidence in your most critical engineering applications.
Wire EDM Design Considerations
- Material & Hardness
Traditional tools struggle with hard alloys. Wire EDM uses spark erosion to cut any conductive material—from tool steel to carbide—with zero mechanical stress and total structural integrity. - Micro Internal Radii
Standard mills cannot cut sharp internal corners. Using wires as fine as 20 µm (0.0008″), we achieve near-zero radii and micro-slots that are physically impossible for conventional machining.
- Thin-Wall Stability
Cutting pressure often deforms delicate walls. As a non-contact process, Wire EDM produces high-aspect-ratio features without bending, maintaining a precise ±2 µm accuracy across the profile. - Thickness & Straightness
Maintaining verticality in thick parts is a challenge. Our systems handle up to 16″ thickness with submerged cutting, ensuring thermal stability and perfect vertical alignment for even the heaviest sections.
Materials for Wire EDM
Material Category | Representative Alloys | Key Advantages & Applications |
Tool & Alloy Steels | Hardened Steel, D2, A2, S7 | Ideal for high-pressure dies, molds, and precision tooling. |
High-Temp Superalloys | Inconel, Hastelloy, Cobalt | Maintains integrity in aerospace and chemical environments. |
Hard & Brittle Metals | Tungsten Carbide, Molybdenum | Perfect for wear-resistant components and high-melt parts. |
Corrosion Resistant | Stainless Steel (304, 316, 17-4 PH) | Ensures durability for medical and marine applications. |
Lightweight Alloys | Titanium, Aluminum (6061, 7075) | High strength-to-weight ratio for aerospace and defense. |
Conductive Alloys | Copper, Beryllium Copper, Brass | Essential for electrical contacts and EDM electrodes. |
Specialized Alloys | Kovar, Nickel Alloys | Controlled expansion for electronics and semiconductors. |
Materials for Wire EDM
Material Category | Representative Alloys | Key Advantages & Applications |
Tool & Alloy Steels | Hardened Steel, D2, A2, S7 | Ideal for high-pressure dies, molds, and precision tooling. |
High-Temp Superalloys | Inconel, Hastelloy, Cobalt | Maintains integrity in aerospace and chemical environments. |
Hard & Brittle Metals | Tungsten Carbide, Molybdenum | Perfect for wear-resistant components and high-melt parts. |
Corrosion Resistant | Stainless Steel (304, 316, 17-4 PH) | Ensures durability for medical and marine applications. |
Lightweight Alloys | Titanium, Aluminum (6061, 7075) | High strength-to-weight ratio for aerospace and defense. |
Conductive Alloys | Copper, Beryllium Copper, Brass | Essential for electrical contacts and EDM electrodes. |
Specialized Alloys | Kovar, Nickel Alloys | Controlled expansion for electronics and semiconductors. |
Wire EDM Tolerances
Precision Level | Tolerances (mm / inch) | Typical Applications |
Ultra-Precision | ±0.002 mm / ±0.00008″ | Micro-medical & Semiconductor tools |
High Precision | ±0.005 mm / ±0.0002″ | Aerospace parts & Precision molds |
Standard Precision | ±0.013 mm / ±0.0005″ | Structural parts & Rapid prototypes |
Wire EDM Surface Finishing
Finishing Process | Key Benefits | Typical Applications |
Precision Polishing | Removes micro-burrs; achieves Ra 0.1 µm smoothness. | Surgical tools & Optical molds |
Electropolishing | Eliminates recast layers and boosts corrosion resistance. | Medical implants & Semiconductors |
Stress Relieving | Prevents warping in thick or complex geometries. | Aerospace & Defense components |
Passivation | Enhances chemical stability and rust prevention. | Medical & Marine hardware |
Plating & Coating | Improves wear resistance and surface hardness. | Industrial tools & Connectors |
Thermal Oxidation | Increases durability and fatigue resistance. | High-stress engine parts |

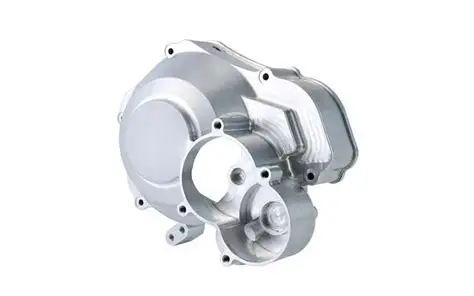

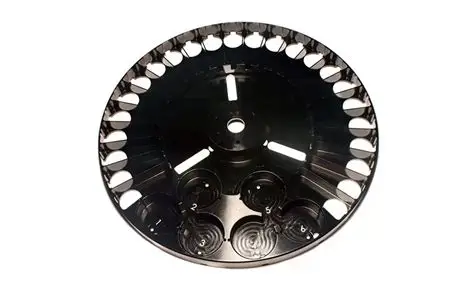

Wire EDM Machining Parts We Serve
Other EDM Services
Sinker EDM
Hole Popper EDM
Wire EDM Applications
Medical
Medical
Electronics
Automotive
Defense
Energy & Semiconductors
Other CNC Machining Services
CNC Machining
CNC Milling
CNC Turning
CNC Drilling
CNC Grinding
Sinker EDM
Free Wire EDM Service Quotes
At XTPROTO, we provide precision Wire EDM and high-speed small hole EDM services to clients around the world. With advanced equipment and extensive production experience, we can handle projects of any size or complexity, delivering high-quality parts on schedule.Have questions or ready to start your project? Contact us online today or request your free quote to get started.
What Is Wire EDM Machining & How It Works
Wire EDM machining is a precision process that uses a thin, electrically charged wire to cut electrically conductive metals without direct contact, producing parts with sharp corners, intricate angles, and complex geometries without deformation or mechanical stress. The cutting occurs in a dielectric fluid, which protects the workpiece, removes debris, and stabilizes temperature for high-accuracy results. This method is ideal for hard or exotic metals such as stainless steel, nickel alloys, tool steel, titanium, and carbide. With full CNC control along X and Y axes, Wire EDM enables tight tolerances, high repeatability, and consistent surface quality for prototypes, small-batch runs, or high-volume production. Our experienced team works directly with your designs to ensure every part meets your exact precision, tolerance, and performance requirements, making Wire EDM a reliable choice for demanding aerospace, medical, and industrial applications. Learn more about our CNC machining capabilities for a complete precision manufacturing solution.
Advantages Of Wire EDM
- No Mechanical Cutting Forces:The non-contact EDM process reduces burrs, distortion, and deformation, making it ideal for delicate parts.
- Ideal for Hard Materials:Efficiently cuts hardened tool steel, titanium, Inconel, and other difficult-to-machine conductive alloys.
- Excellent Surface Finish:Multi-pass wire EDM cutting can produce smooth surfaces with minimal secondary finishing.
- Perfect for Thin Walls & Narrow Slots:Suitable for thin sections, complex contours, and fragile components.
- No Custom Tooling Required:CNC-controlled cutting enables quick setup and shorter lead times for prototypes and production.
Limitations Of Wire EDM
- Conductive Materials Only:Wire EDM can only machine electrically conductive materials, such as metals and certain alloys.
- Slower Cutting Speed:Compared with conventional CNC machining, laser cutting, or waterjet cutting, wire EDM is generally slower for simple parts.
- Recast Layer Formation:A thin heat-affected or recast layer may form along the cut edge and sometimes requires secondary finishing.
- Specialized Setup Required:Achieving optimal results often requires experienced operators and precise programming.
FAQs:Wire EDM
How precise is Wire EDM machining?
What materials can be processed?
What is the minimum feature size available?
Can Wire EDM handle thick workpieces?
