Bakelite CNC Machining Services
Specialized in turning brittle Bakelite into intricate, high-performance components. From 1mm thin walls to complex 3D geometries, XTPROTO delivers where others fail.
Custom Bakelite CNC Machining Services
XTPROTO delivers turnkey CNC machining solutions for Bakelite and premium phenolic laminates, seamlessly transforming your CAD designs into high-precision components. By pairing engineered high-speed tooling with advanced 5-axis machining centers, we consistently achieve flawless, burr-free edges and exceptional dimensional stability.Specializing in brittle and layered synthetics, our refined manufacturing protocols completely mitigate the risks of micro-cracking, chipping, and delamination—guaranteeing structural integrity and repeatable quality for your most complex, high-spec applications.
Zero-Chipping Edge Integrity
XTPROTO redefines the precision limits of Bakelite machining through custom-engineered PCD (Polycrystalline Diamond) high-helix tooling and proprietary dynamic feed compensation algorithms. By transitioning traditional tearing-style cutting into high-precision micro-grinding, we meticulously manage thermal stress distribution at the tool-material interface. This advanced stress-management technique ensures that whether processing paper-based or canvas-based phenolics, every cross-hole, slot, and edge achieves a mirror-like finish with roughness levels as low as Ra 0.8μm. By eliminating visible burrs and microscopic white edges, we fundamentally prevent the formation of micro-cracks that trigger dielectric breakdown, delivering components with absolute electrical safety distances for the most demanding semiconductor and power-grid environments.
Extreme Geometry Mastery

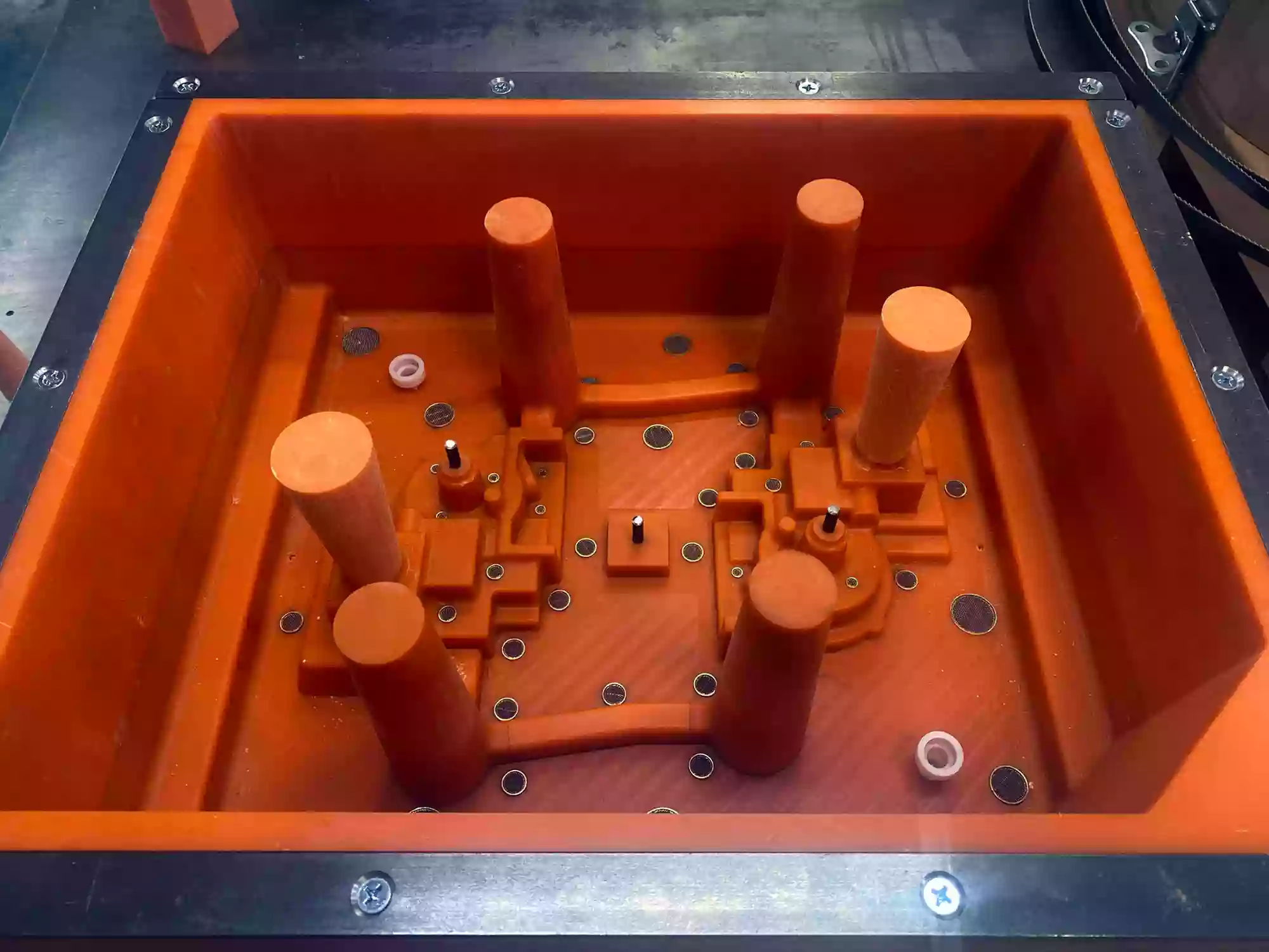

We have pushed Bakelite beyond its physical limitations as a brittle material, evolving it from simple flat panels into high-complexity 3D functional components. Leveraging 5-axis simultaneous machining centers and active harmonic vibration suppression, XTPROTO consistently achieves ultra-thin wall structures down to 1mm and high-aspect-ratio internal features without compromising structural integrity. Our synchronized multi-point vacuum adsorption systems neutralize high-frequency resonance during the machining process, enabling the precise execution of deep-cavity milling, non-linear surfaces, and high-density micro-hole arrays. This mastery over complex geometries empowers designers to integrate intricate mechanical features into phenolic parts, transforming Bakelite from a basic insulator into a high-precision core carrier for sophisticated instrumentation.
What is Bakelite?
Our mastery over complex shapes is rooted in a deep understanding of the raw material itself.Bakelite is a high-performance thermoset phenolic laminate manufactured by compressing resin-impregnated substrates under intense heat and pressure. Once cured, it undergoes a permanent chemical cross-linking, forming a rigid, non-melting structure with exceptional electrical insulation and mechanical stability.Compared to standard thermoplastics, Bakelite does not creep or deform under thermal stress and heavy mechanical loads, making it the industry standard for high-voltage and extreme-temperature environments.
Bakelite Material Grades & Categories
| Grade (NEMA) | Core Advantage | Technical Metrics |
| Paper-Based (X / XX / XXX) | Top-Tier Electrical Insulation | Flexural: 125 MPa / Dielectric: 500 V/mil |
| Canvas-Based (C / CE) | High Impact & Mechanical Strength | Flexural: 75 MPa / Dielectric: 200 V/mil |
| Linen-Based (L / LE) | Intricate & Micro Precision Machining | Fine Weave Matrix / Density: 1.36 g/cm³ |
| Glass-Cloth (G-Series / G-10) | Extreme Thermal & Structural Rigidity | Max Temp: 200 °C / Ultra-High Modulus |
Bakelite Material Technical Specifications
| Property | Typical Value | Description |
| Density | 1.35 – 1.45 g/cm³ | Lightweight yet dense engineering substrate. |
| Flexural Strength | 120 – 150 MPa | High bending resistance for structural components. |
| Tensile Strength | 70 – 100 MPa | Excellent mechanical rigidity and load-bearing capacity. |
| Hardness | 110 – 120 (Rockwell R) | High surface hardness optimized for clean, precision machining. |
| Thermal Resistance | 180 – 200 °C | Continuous stable performance under high thermal loads. |
| Elongation | 0.5 – 1.0 % | Minimal deformation, ensuring tight dimensional stability. |
| Dielectric Strength | 15 – 20 kV/mm | High electrical breakdown voltage for heavy-duty insulation. |
| Thermal Conductivity | 0.2 W/(m·K) | Superior thermal insulation to protect sensitive instruments. |
Pros of Bakelite CNC Machining
- Superior Insulation:High dielectric strength for total high-voltage safety.
- Thermal Stability:Maintains rigid structure without melting or deforming under heat.
- High Strength:Exceptional strength-to-weight ratio with superior surface hardness.
- Wear Resistance:Highly durable against scratches, impact, and chemical corrosion.
- Cost-Effective:Easy to CNC machine into complex shapes at a low production cost.
- Dimensional Stability:Holds tight tolerances and original shape under mechanical load.
Cons of Bakelite CNC Machining
- Brittle Nature:Low impact strength; prone to cracking or chipping under sharp impact or heavy stress.
- Abrasive Dust:Machining generates fine, hazardous dust that requires specialized vacuum extraction and PPE.
- Tool Wear:Extremely hard on cutting edges; requires specialized carbide or diamond (PCD) tooling.
- Zero Flexibility:A rigid thermoset that cannot be bent, welded, or softened once cured.
- Joining Difficulty:Cannot be solvent-welded; requires mechanical fasteners or specialized industrial epoxies.
- Environmental Impact:Production and disposal involve phenol and formaldehyde, requiring strict environmental controls.
Why Choose Us for Bakelite Machining？
XTPROTO Facility
Our facility integrates high-speed CNC centers with specialized dust extraction systems tailored for phenolic laminates. From large-format routing of NEMA-grade sheets to micro-drilling of semiconductor test jigs, our production line maintains ISO 9001:2015 precision. We utilize diamond-coated tooling to eliminate edge chipping and ensure burr-free finishes, supported by an on-site testing lab for dielectric strength and dimensional accuracy. Our scalable capacity handles everything from rapid prototyping to high-volume industrial runs with consistent structural integrity.
Engineering Expertise
Our technical backbone consists of over 120+ professional engineers specializing in advanced thermoset fabrication and CNC strategy. This extensive team provides localized DFM (Design for Manufacturing) expertise to navigate Bakelite’s inherent brittleness, ensuring complex designs are optimized for structural integrity and precision. By leveraging over 2 decades of collective experience, our engineers manage everything from high-tolerance electrical prototypes to large-scale industrial deployments. We don’t just machine parts; we provide full-stack technical support—optimizing tool paths, selecting the ideal NEMA grades, and solving thermal-mechanical challenges to ensure every component exceeds rigorous global standards.
General Capabilities
| Feature | Specification |
| Max Workpiece Size | 1200 mm x 800 mm x 100 mm |
| Min Feature Size | 0.5 mm (Width for slots and pockets) |
| Surface Roughness | Ra 1.6 – 3.2 μm (Standard as-machined) |
| Lead Time | Determined based on the order. |
| Accepted Formats | AutoCAD, STP, IGS, STEP, PDF, JPEG |
| Process Range | CNC Milling, Turning, Drilling, Tapping, Grinding |
Quality Control & Standards
- ISO 9001:2015:Certified quality management ensuring consistency in every CNC machined part.
- NEMA Standards:Strict adherence to X/XX/XXX grade benchmarks for electrical insulation.
- Dimensional Inspection:Full-spectrum CMM and caliper verification to ensure ±0.05mm precision.
- Surface Integrity:100% visual check to ensure zero delamination, chipping, or micro-cracks.
- Dielectric Testing:High-voltage verification to confirm safety and non-conductive performance.
- Hardness Testing:Rockwell hardness checks to verify full resin cure and material density.
- RoHS/REACH:Compliance certification for hazardous substance control and environmental safety.
Bakelite Machining Surface Finishing Options
Bakelite Machining Tolerances
- Standard Tolerance:±0.125 mm (±0.005″) for general industrial insulators and structural frames.
- Precision Tolerance:Up to ±0.050 mm (±0.002″) using specialized carbide tooling to prevent edge chipping.
- Hole Diameters:Maintained at ±0.05 mm to ensure precise fitment for electronic test jigs and pins.
- Flatness Control:Precision grinding achieves flatness within 0.1 mmfor large-area wear plates and vacuum chucks.
- Thread Accuracy:High-precision threading is achievable, though metal inserts are recommended for high-stress applications.
- Material Factor:Final accuracy is subject to the inherent thickness variations of the NEMA-grade laminate sheets.
OEM CNC Manufacturing Partner for Bakelite CNC Machining
XTPROTO provides OEM CNC machining services for Bakelite and phenolic materials, supporting the full process from design optimization to final production. Due to the brittle and laminated nature of Bakelite, we apply controlled machining strategies, optimized tooling, and advanced CNC equipment to ensure stable dimensional accuracy, clean edges, and consistent surface quality. Our process helps reduce common issues such as cracking, edge chipping, and delamination, making it suitable for both prototyping and mass production. We deliver reliable Bakelite CNC machined components for applications including electrical insulation parts, industrial fixtures, and structural components that require high precision and long-term stability.
Applications of CNC Machined Bakelite
Electronics & Electrical
Industrial Manufacturing
Mechanical Engineering
Aerospace
Automotive
Medical Technology
Bakelite Machining FAQs
How does XTPROTO prevent delamination during deep-hole drilling?
Can you achieve UL 94V-0 flame retardancy for all machined Bakelite parts?
Is Bakelite suitable for high-humidity environments?
What is the maximum thickness of Bakelite you can process?
Need a specialized solution for your next project?
Our deep expertise in NEMA-grade laminates combined with 5-axis precision ensures your Bakelite parts perform exactly as engineered. Contact our technical team today for a comprehensive DFM review.
