Carbon Fiber CNC Machining Services
Get high-performance carbon fiber components machined to your exact specifications. Our advanced CNC centers specialize in high-speed, dust-controlled cutting that preserves material integrity. Whether it’s rapid prototyping or mass production, expect burr-free finishes and mirror-perfect aesthetics every time.
One-Stop Carbon Fiber CNC Machining Services
Streamline Your Project from Raw Material to Finished Perfection.We offer a fully integrated solution for custom carbon fiber components. No more managing multiple vendors—we handle everything in-house. From selecting the right fiber orientation (0°/90°/45°) and weave (3K/6K/12K) to high-speed precision milling and professional surface finishing, we ensure a seamless transition from your CAD design to a high-performance reality.

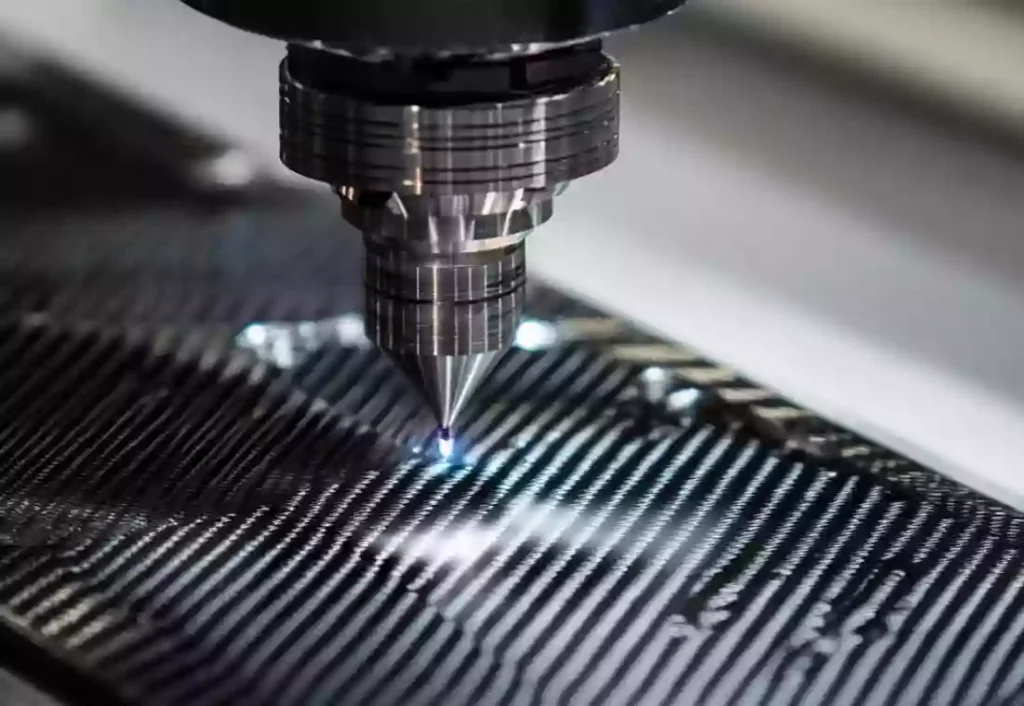

What is Carbon Fiber CNC Machining?
Carbon Fiber CNC machining is a high-precision process controlled by advanced software to cut, shape, and finish Carbon Fiber Reinforced Polymer (CFRP) composites. This process is essential for transforming raw CFRP—made of 5-10 micron carbon filaments bonded with epoxy resin—into high-performance, ready-to-use components.
Carbon Fiber Material Grades
- Standard Modulus:33-36 MSI (T300/T400) for general industrial & sports gear.
- Intermediate Modulus:42-47 MSI (T700/T800) for aerospace & automotive parts.
- High Modulus:55-57+ MSI (M-series) for satellites & high-precision equipment.
- Ultra-High Modulus:70+ MSI for specialized scientific & space applications.
Carbon Fiber Weave Types
- 3K Plain Weave:Symmetric 1×1 pattern for high structural stability.
- 3K Twill Weave:Diagonal 2×2 pattern for superior aesthetics and curves.
- Unidirectional (UD):Non-woven fibers for maximum strength in a single axis.
- Forged Carbon:Marbled aesthetic for complex shapes and luxury finishes.
- Large Tow (6K/12K):Bold, heavy-duty patterns for industrial-scale components.
Carbon Fiber CNC Machining Physical Comparison
Property | Carbon Fiber | Aluminum |
Density | 1.6 g/cm³ | 2.7 g/cm³ |
Weight | Lightest | Heavy (+60%) |
Corrosion | Excellent | Moderate |
Carbon Fiber CNC Machining Mechanical Strength Comparison
Property | Carbon Fiber (CFRP) | Stainless Steel |
Tensile Strength | 3500+ MPa | 500-800 MPa |
Specific Stiffness | Highest | Moderate |
Thermal Expansion | Near Zero | Moderate / High |
Electronic-Grade Dust Management
Residual carbon dust is conductive and poses a severe short-circuit risk to integrated electronics. Our process integrates industrial-grade HEPA vacuum systems during cutting, followed by a multi-stage ultrasonic cleaning cycle. This ensures every part reaches your assembly line 100% free of micro-dust, making it safe for immediate use in UAV frames and sensitive medical devices.
Superior Edge Integrity
Delamination and fiber fraying are the most common failures in carbon fiber machining. We eliminate these risks by utilizing specialized PCD (Polycrystalline Diamond) compression cutters. By applying inward pressure from both sides of the laminate simultaneously, we achieve mirror-smooth, burr-free edges that preserve the material’s structural integrity and require zero manual sanding.
Ultra-Precision & Thermal Stability
To prevent resin softening—a common cause of dimensional drift—our CNC centers operate with dynamic feed-rate control in a temperature-regulated environment. This rigorous thermal management ensures that frictional heat is dissipated instantly, allowing us to maintain tight tolerances within 0.02mm even for complex geometries and high-density hole patterns.
Carbon Fiber Machining Processes Services
CNC Machining

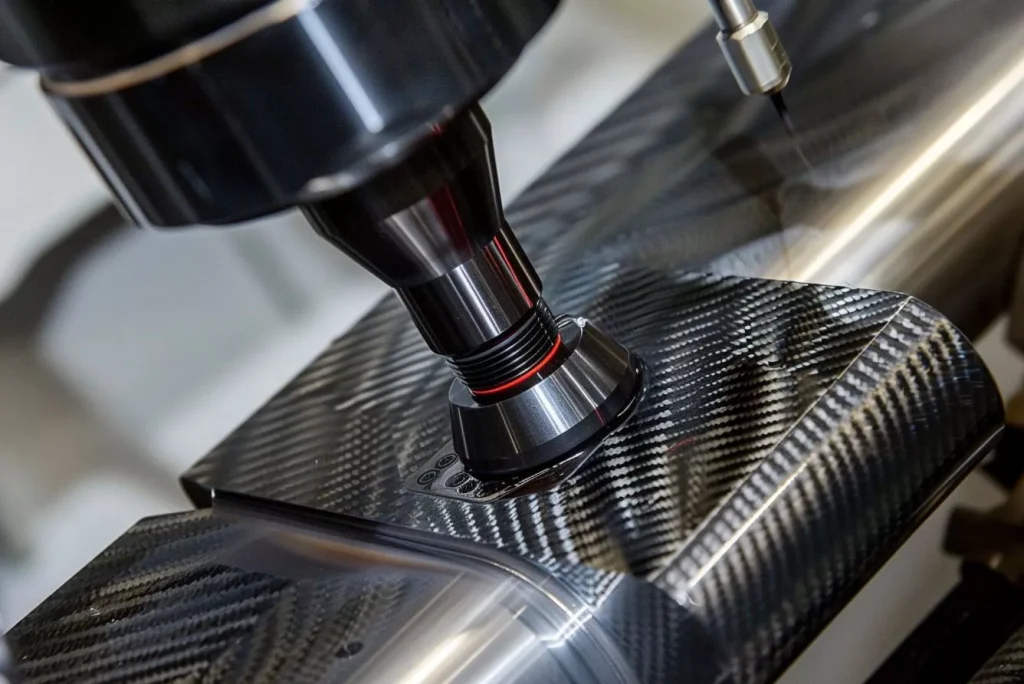

CNC Milling
CNC Turning
CNC Drilling
Waterjet Cutting
Edge Trimming & Profiling
Advantages of Carbon Fiber Machining
- Massive Weight Reduction:Outperforms steel and aluminum in tensile strength while cutting total mass by up to 80%.
- Uncompromising Rigidity:Delivers high-modulus stiffness to maintain structural integrity under extreme mechanical stress.
- All-Environment Durability:Naturally inert to chemicals and oxidation, outlasting metals in corrosive or marine conditions.
- Thermal Precision:Maintains critical tolerances with a near-zero expansion coefficient, even during rapid temperature shifts.
- Functional Conductivity:Offers inherent electrical conductivity for specialized applications requiring EMI shielding or grounding.
Carbon Fiber Machining Envelopes
Specification | Range / Capacity | Precision Tolerance |
Max Machining Area | 1500mm x 2500mm | 0.05mm |
Processing Thickness | 0.2mm – 50.0mm | 0.02mm |
Min Hole Diameter | 0.5mm | 0.01mm |
Carbon Fiber Machining Surface Finishing Options

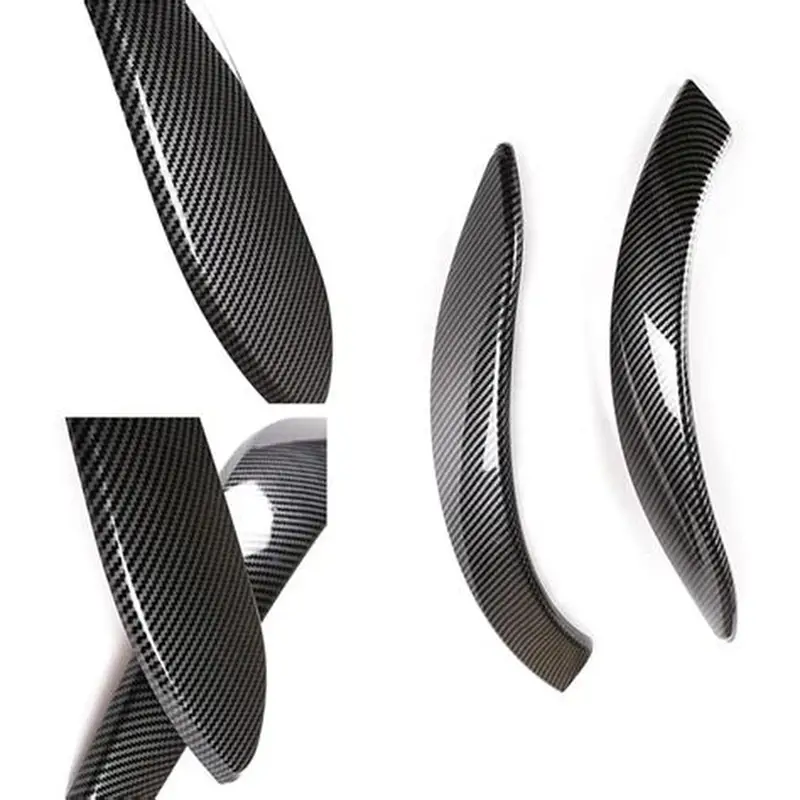

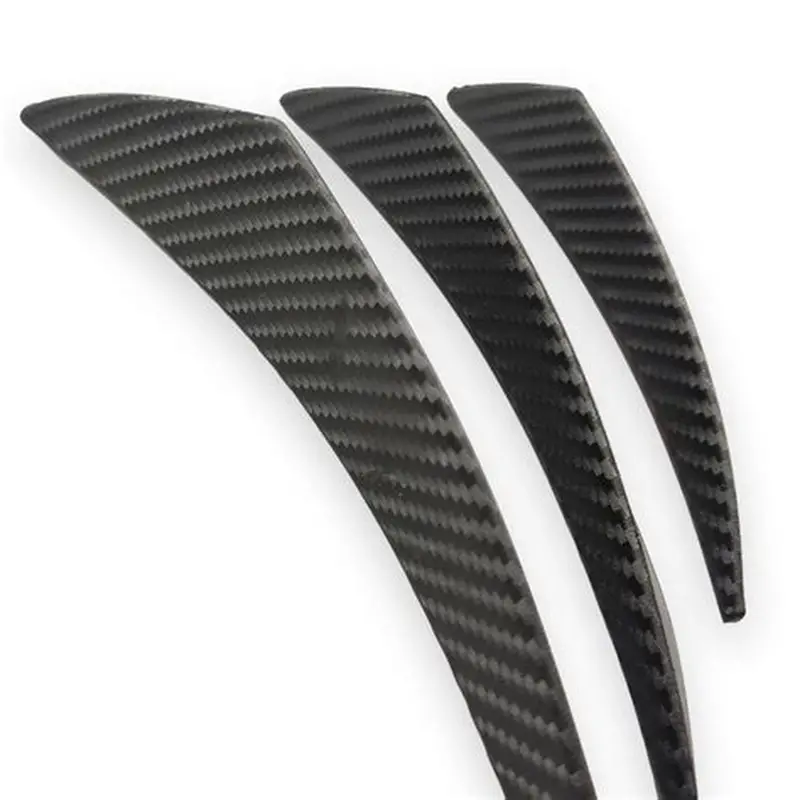

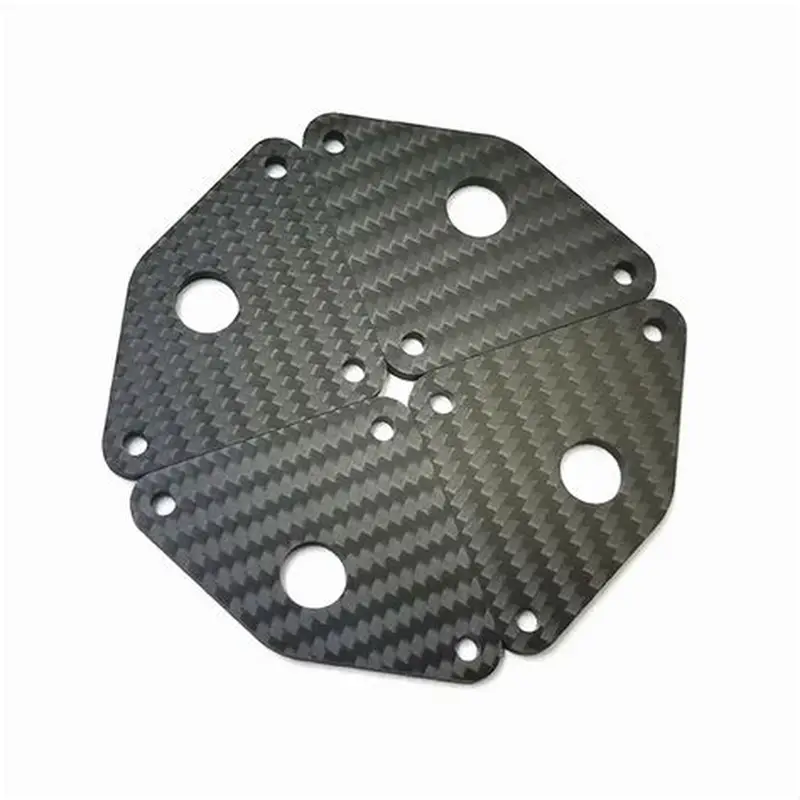

Custom CNC Machined Carbon Fiber Parts Gallery
Carbon Fiber Machining Quality Assurance & Inspection
- Dimensional Verification:Precision CMM and optical inspection ensure full compliance with CAD tolerances.
- Structural Integrity:Ultrasonic testing detects internal defects such as micro-cracks and voids.
- Surface Quality:Profilometer checks confirm smooth edges and Ra < 0.8 μm finish.
- Cleanliness Control:Parts are inspected after ultrasonic cleaning to ensure no residual carbon dust.
- Traceability:Each batch includes inspection reports and CoC with material and resin details.
Carbon Fiber Manufacturing Facility
Our specialized workshop is engineered exclusively for high-precision CFRP (Carbon Fiber Reinforced Polymer) machining. Unlike conventional machine shops, our facility features fully integrated conductive dust filtration systems and a high-speed multi-axis CNC matrix optimized for composite materials. This dedicated environment prevents electrical interference while ensuring structural integrity during high-velocity cutting at speeds up to 24,000 RPM. From rapid prototyping to large-scale OEM production, we utilize advanced vacuum adsorption and cold-cutting techniques to maintain rigorous tolerances of 0.02mm, effectively eliminating common issues such as delamination and edge splintering.
Engineering & Technical Team
Our engineering team consists of composite material experts with deep technical expertise ranging from fiber grading to high-end finishing. Beyond standard CNC programming, our team provides critical DFM (Design for Manufacturing) support, advising on optimal fiber modulus selection and ply orientation to meet specific structural load requirements. By precisely controlling cutting vectors and customizing tool paths, we preemptively resolve internal stress challenges inherent in complex geometries. As your technical partner, we bridge the gap between advanced engineering theory and carbon fiber’s unique physical properties, ensuring every complex CAD design is realized as a high-performance, lightweight component.
Why Choose Our Carbon Fiber Machining Services?
No splintering, no delamination. We use PCD-tipped tooling to ensure every cut and drill hole is crisp and structurally sound.
Break away from flat plates. Our 5-axis capability handles deep curves and intricate 3D geometries with zero setup errors.
We go beyond the cut. From DFM optimization to final bonding and assembly, we deliver finished components, not just parts.
Think big. Our 1300 x 2500 mm envelope allows for large-scale structural frames that most shops simply can't fit.
Carbon Fiber Machining Industries We Serve
Aerospace
Defense
Motorsport & Racing
Robotics & Automation
UAV & Drones
Medical Devices
Automotive
Marine & Offshore
Consumer Electronics
Carbon Fiber Machining FAQ
How do you ensure the internal strength of carbon fiber during cutting?
Can you machine carbon fiber bonded with aluminum or foam cores?
How do you guarantee parts are safe for sensitive electronics?
Do you have a Minimum Order Quantity (MOQ)?
Why use 5-axis CNC instead of standard 3-axis?
What is the typical lead time for custom parts?
On-Demand Fabrication: From CAD to Reality
Upload your designs for an instant technical quote. We are your direct source for precision Carbon Fiber and Aluminum machining. From professional UAVs and RC racing to custom Sim-Racing rigs, we turn your unique concepts into high-performance hardware—delivered fast, built to last.
