Hastelloy CNC Machining Services
Specializing in multi-grade Hastelloy and difficult-to-machine exotic metals. Backed by high-rigidity 5-axis CNC machining and rigorous DFM analysis, we effectively control work hardening, eliminate scrap risks, and guarantee zero-defect parts for extreme operating conditions.
Full-Service CNC Machining for Hastelloy
Navigating the intense thermal and mechanical challenges of Hastelloy leaves no room for error; it requires a disciplined, end-to-end manufacturing approach. Our full-service CNC machining capabilities are engineered to bridge the gap between complex engineering designs and flawless, mission-critical components. By maintaining complete control over every stage of the fabrication process—from initial blueprint analysis to final delivery—we effectively remove the volatility, work hardening, and tool wear typically associated with these superalloys. This unified, seamless workflow ensures a reliable supply of high-precision parts, allowing you to confidently deploy components that are built to perform in the world’s most demanding environments.
What is Hastelloy?
Engineered to survive where standard metals fail, Hastelloy is the definitive choice for handling aggressive chemical media, severe chloride exposure, and intense high-temperature exhaust. This supreme level of corrosion resistance stems from its premium nickel base, which is heavily fortified with strategic elements like chromium, molybdenum, tungsten, and copper to create an impervious passive barrier. However, the very characteristics that make it indestructible in the field—exceptional tensile strength and thermal stability—also make it highly resilient against cutting forces, causing rapid tool wear and work hardening that only advanced CNC setups can manage.
Primary Hastelloy Grades & Engineering Characteristics
To meet the rigorous demands of extreme operating environments, we precision-machine a comprehensive selection of Hastelloy alloys fully compliant with ASTM B575, B622, and B366 standards. Each grade possesses a distinct chemical balance tailored for specific survival attributes. Below is an overview of the primary Hastelloy grades we process and how their unique material properties interact with advanced CNC machining.
Hastelloy C-276 (UNS N10276)
Widely considered the gold standard for aggressive chemical processing, Hastelloy C-276 is a nickel-chromium-molybdenum-tungsten alloy renowned for its unmatched immunity to localized pitting, stress corrosion cracking, and strong oxidizing or reducing agents such as wet chlorine gas and ferric chlorides. While its high ductility makes it incredibly reliable in the field, this same toughness triggers immediate work-hardening during metal removal. Successfully shaping C-276 requires heavy-duty CNC setups, optimized chip-breaking cutter geometries, and continuous, high-pressure coolant delivery to prevent tool glazing and ensure precise dimensional stability for components like reactors and industrial valves.
Hastelloy C-22 (UNS N06022)
Formulated with an enhanced chromium content, Hastelloy C-22 delivers superior, versatile defense across shifting chemical streams containing both oxidizing and reducing media. This precise chemistry provides significantly better overall resistance to pitting and crevice corrosion than C-276, making it a staple for pharmaceutical equipment, petrochemical vessels, and aggressive bleaching systems. From a manufacturing standpoint, its extreme structural tenacity demands exceptionally rigid machine spindles and sharp, premium carbide tooling to counteract tool deflection and maintain the tight linear and geometric tolerances specified in complex engineering prints.
Hastelloy C-2000 (UNS N06200)
Hastelloy C-2000 pushes the boundaries of material versatility by incorporating a strategic injection of copper into its nickel-chromium-molybdenum matrix. This unique metallurgical blend grants the alloy exceptional durability and a highly uniform corrosion resistance when exposed to severe sulfuric and hydrochloric acid environments. However, this multi-element composition significantly accelerates cutting tool wear during CNC milling and turning. We overcome this severe structural tenacity by utilizing highly tailored speed-and-feed strategies that mitigate thermal buildup, ensuring pristine surface finishes for advanced chemical process machinery.
Hastelloy B-3 (UNS N10675)
Specifically engineered for ultimate resilience against pure hydrochloric acid at all temperatures and concentrations, Hastelloy B-3 features a high-concentration nickel-molybdenum chemistry that offers drastically improved thermal stability compared to older alloys like B-2. Because of its massive molybdenum content, B-3 is notoriously difficult to machine and places extreme mechanical stress on fabrication equipment. Overcoming its intense resistance to shearing forces requires ultra-hard, specialized cutting inserts and robust, low-vibration CNC configurations to eliminate structural distortion in critical energy manufacturing and chemical production parts.
Hastelloy X (UNS N06002)
Unlike the corrosion-focused C and B series, Hastelloy X is a nickel-chromium-iron-molybdenum superalloy celebrated primarily for its exceptional high-temperature strength and oxidation resistance up to 2200°F (1200°C). It maintains remarkable structural integrity and creep resistance under continuous thermal shock, making it indispensable for gas turbine engine components, aerospace tailpipes, and industrial furnace parts. While it exhibits relatively better machinability in both its wrought and cast forms than its high-molybdenum counterparts, strict process control over heat generation remains mandatory during high-speed CNC milling to prevent work hardening.
CNC Machining Capabilities for Hastelloy
Leveraging our deep understanding of these complex nickel superalloys, we have engineered a dedicated machining ecosystem to master Hastelloy’s severe material traits through three core operational capabilities:
Front-End Engineering & DFM Optimization
Front-End Manufacturing Engineering and DFM Analysis
Before a single millimeter of high-value Hastelloy stock enters production, our engineering team conducts a rigorous Design for Manufacturability (DFM) review specifically tailored to the severe mechanical behaviors of high-nickel superalloys. We analyze your 2D engineering prints and 3D CAD models to evaluate structural stiffness, internal corner radii, and deep-hole configurations, pinpointing critical geometric features that might trigger excessive work hardening or tool deflection. By proactively optimizing tool paths, proposing subtle design refinements, and establishing precise thermal management strategies during this digital simulation phase, we eliminate fabrication risks and secure a highly predictable, repeatable manufacturing workflow. This upfront engineering intelligence completely bypasses traditional, costly trial-and-error practices—bridging the gap between complex chemical or aerospace blueprints and flawless physical reality.
Precision Machining Expertise
Transforming raw Hastelloy into high-precision complex components requires far more than standard CNC equipment—it demands exceptional machine rigidity and extensive superalloy machining expertise. Our facility is equipped with heavy-duty CNC milling and turning centers capable of delivering the high torque and vibration stability needed to machine tough nickel-based alloys while suppressing chatter and dimensional instability. Through optimized cutting parameters and advanced multi-axis machining, we produce complex geometries in fewer setups, significantly reducing cumulative tolerance variation. Backed by deep experience with Hastelloy machining behavior, our team maintains tight tolerances and superior surface integrity while effectively controlling work hardening throughout production.
Cost Control
Because Hastelloy represents a significant material investment, our production strategy is built around maximizing material yield and minimizing manufacturing waste at every stage. Rather than compromising quality, we control costs through efficient production engineering—utilizing optimized nesting strategies, high-performance carbide tooling with extended tool life, and near-zero scrap rates achieved through upfront DFM validation. Our streamlined multi-axis machining workflows also reduce setup time, cycle time, and manual labor, lowering overall production costs while maintaining exceptional quality standards. This disciplined manufacturing approach allows us to deliver mission-critical Hastelloy components at a competitive total cost of ownership while minimizing the cost risks commonly associated with exotic alloy machining.
Hastelloy Manufacturing Facility
Behind this manufacturing efficiency is a modern production infrastructure engineered specifically for high-performance superalloy machining.
- High-rigidity machining environment engineered for difficult-to-machine superalloys
- Lean manufacturing workflow optimized for precision and production efficiency
- Climate-controlled production areas for improved dimensional consistency
- Integrated machining, inspection, and packaging operations under one facility
- Scalable production capacity for mission-critical industrial applications
- Continuous infrastructure investment supporting stable long-term supply chains
Advanced Machining Equipment
Our core manufacturing equipment includes Hermle 5-axis CNC machining centers for complex multi-axis component production, and AgieCharmilles wire EDM systems for intricate geometries and high-precision surface finishing. We utilize Zeiss metrology equipment for advanced quality control and dimensional inspection, ensuring strict adherence to tight tolerances. Our machining capabilities are further supported by DMG MORI CNC milling and turning centers, enabling high-precision production of complex geometries in demanding materials such as Hastelloy and other superalloys. Together, this equipment foundation ensures stable, repeatable manufacturing performance across both prototyping and full-scale production.
Quality Control
Operating under severe military and aerospace standards, our ISO-certified inspection labs leave zero room for error when validating complex Hastelloy components. By combining world-class automated metrology with full 3.1b material traceability, we guarantee that every part delivers flawless surface integrity and absolute print compliance.
AS9100D Certified | ISO 9001:2015 Certified
Keyence & Oasis Inspection Systems and Software
Full EN 10204 3.1b Material Certificates & Strict Administrative Governance
Surface Finishing & Treatment for Hastelloy CNC Machining
Hastelloy Machining Specifications
- Dimensional Tolerance:up to ±0.005 mm depending on part geometry and material conditions
- Maximum Part Size:supports both small precision components and large-format CNC machined parts
- Material Capability:Hastelloy, Inconel, Monel, Titanium, Stainless Steel, and other high-performance alloys
- Machining Complexity:capable of producing complex 3D geometries, deep cavities, and multi-axis freeform surfaces
- Surface Roughness:down to Ra 0.4 μm depending on process requirements and finishing method

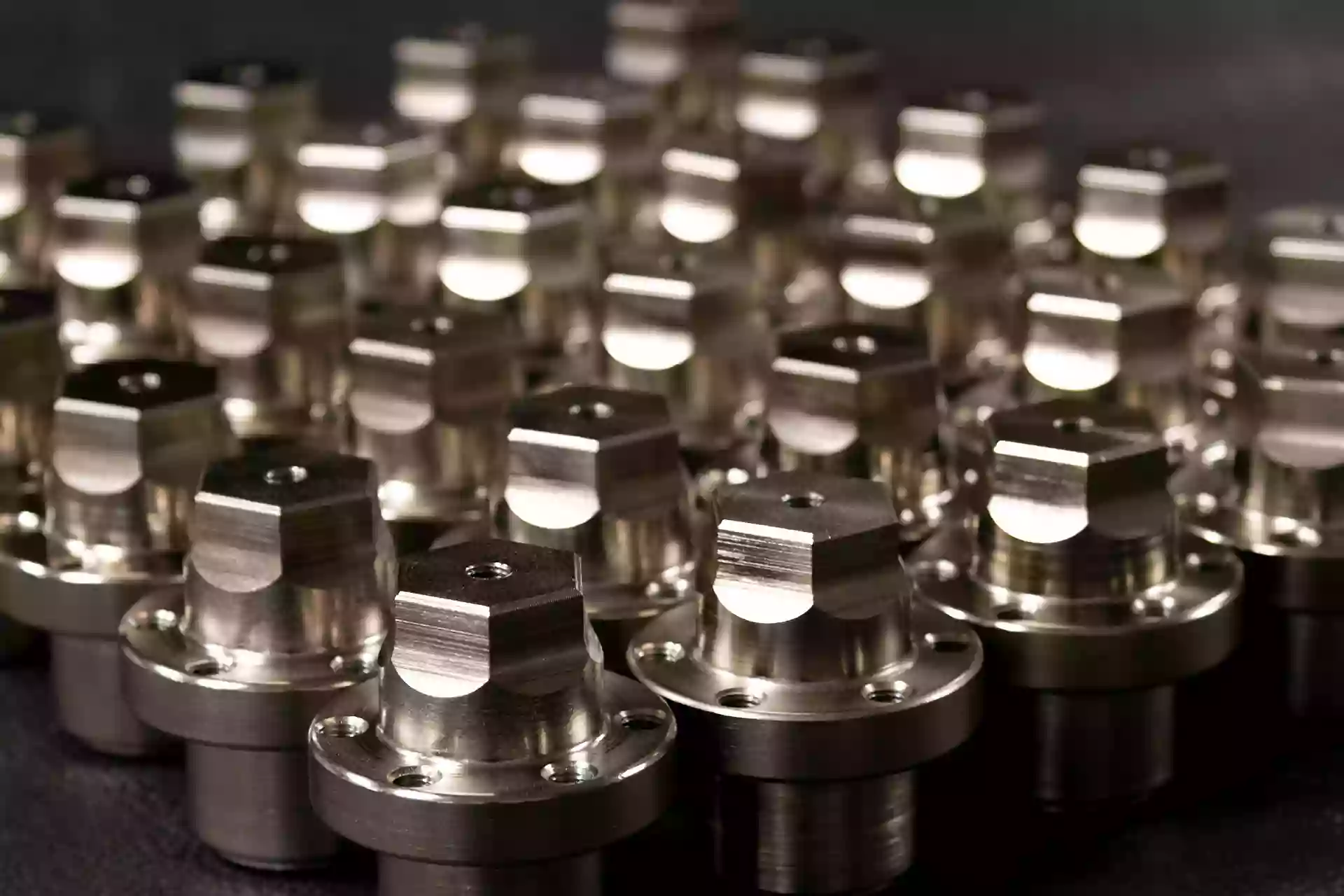

- Production Scale:supports prototyping, small batch, and full-scale production with consistent repeatability
- Lead Time:varies depending on part complexity, material, and production volume
Typical Hastelloy Machined Components
- Valve Bodies & Valve Seats
- Pump Housings & Impellers
- Heat Exchanger Components
- Sealing Rings & Retaining Rings
- Turbine Components
- Flanges & Pipe Connectors
- Chemical Processing Fittings
- High-Pressure Fluid System Parts
- Precision Shafts & Sleeves
- Custom CNC Machined Structural Parts
- Corrosion-Resistant Fasteners
- Reactor & Pressure Vessel Components
A Trusted Partner for Hastelloy Machining
At XTPROTO, we specialize in precision Hastelloy machining for complex, high-performance components that demand stability and tight control.Our engineering team brings extensive experience in machining nickel-based superalloys, ensuring reliable process planning and consistent production outcomes.From milling to turning operations, we focus on controlling work-hardening behavior and maintaining tight tolerances throughout manufacturing.This disciplined approach allows us to deliver high-quality, production-ready parts for critical industrial applications.If you are looking for a dependable partner for Hastelloy components, our team is ready to support your project.
Why Choose XTPROTO for Your Hastelloy Components?
- Full-Chain Control:We manage everything from raw material verification to final 5-axis machining, ensuring zero third-party delays.
- Direct Cost Savings:Our optimized nesting and high-performance tooling drastically reduce waste on expensive nickel alloys.
- Strict Quality Inspection:All materials undergo spectrometer testing and defect scanning to guarantee zero internal micro-cracks.
- Custom Cladding & Valves:We offer specialized capabilities for complex Hastelloy valves, flanges, thin foils, and weld overlays.
FAQs
Thanks to our high-rigidity 5-axis machines, we can safely achieve a minimum wall thickness of 0.5 mm to 0.8 mm. We use specialized tool paths and sharp positive-rake carbide inserts to cut cleanly rather than push the metal, which completely prevents the warping and micro-cracking common in thin-walled exotic alloys.
Yes, we hit Ra 0.4 μm directly from our CNC turning and milling centers without secondary operations. We do this by strictly controlling vibration and using premium PVD-coated tools. If your project requires a mirror finish for pharmaceutical or semiconductor use, we also offer in-house electropolishing down to Ra 0.1 μm.
We never use traditional tapping, which easily breaks inside tough Hastelloy. Instead, we use CNC thread milling combined with 70-bar through-spindle coolant to flush out chips and kill heat instantly. For extremely deep or intricate internal shapes, we switch to our advanced AgieCharmilles wire and sinker EDM systems.
Hastelloy raw material is incredibly expensive, so we run a full CAD simulation before cutting. Our DFM review catches issues early: we optimize internal corner radii to fit stronger tools, check deep-hole ratios to stop tool deflection, and adjust geometries to ensure the part can handle high clamping forces. This keeps our scrap rate near zero.
We machine Hastelloy bar stock, heavy plates, forgings, and investment castings. To guarantee metallurgical integrity, every single batch of raw material we receive is locked down and verified with a certified Mill Test Report (MTR) matching ASTM standards before it ever touches our workshop floor.
Heavy cutting naturally creates massive internal stress in nickel alloys, which causes parts to warp later. To ensure absolute dimensional stability, we insert a vacuum stress-relief annealing cycle right between our rough machining and final precision finishing phases. This locks the dimensions perfectly into place.
If a tool touches carbon steel and then cuts Hastelloy, microscopic iron particles will ruin its corrosion resistance. We prevent this by using dedicated tools, fresh cutting fluids, and isolated cleaning tanks exclusively for exotic metals. Every finished part also undergoes full chemical passivation to maximize its protective oxide layer.
Yes. Our engineers regularly help clients upgrade parts when stainless steel fails from pitting or high heat. We will analyze your part's failure mode and help you choose the most cost-effective Hastelloy grade—like switching to C-276 or C-22—to extend your equipment life without over-spending.
Ready to Eliminate Your Hastelloy Machining Risks?
Partner with XTPROTO to conquer the toughest nickel alloys without dimensional drift. Submit your 2D/3D designs today for a fast, hassle-free manufacturing evaluation and quote.
