Rubber CNC Machining Services
Leveraging advanced cryogenic cooling technology and custom fixturing, we deliver burr-free, high-precision rubber components—achieving a level of quality far beyond the capabilities of injection molding, and entirely without the need for tooling costs.
One-Stop Rubber CNC Machining Services
We provide a complete, one-stop rubber CNC machining service that takes your project from CAD files to finished components. From material sourcing and precision machining to final inspection, every step is managed in-house to ensure consistency, accuracy, and fast delivery.
Unlike traditional molding, our process requires no tooling, eliminating mold costs and significantly reducing lead times. This allows you to produce custom rubber parts quickly and cost-effectively, without long setup cycles.
With advanced CNC capabilities, we can achieve complex geometries and tight tolerances that are difficult or impossible with conventional molding methods. Whether for prototyping or low-volume production, we deliver high-quality parts with turnaround times as fast as 24–48 hours.
What Is Rubber CNC Machining?
Rubber CNC machining is a high-precision subtractive process that cuts finished parts directly from solid rubber, rather than forming them in molds. By removing material layer by layer, it enables greater design flexibility and tighter tolerances. To overcome rubber’s natural elasticity, we use optimized cutting strategies, high-speed tooling, and custom fixturing to minimize deformation, tearing, and burrs. Machining directly from CAD files eliminates tooling costs and long lead times, while allowing complex geometries that molding cannot achieve. We work with fully vulcanized rubber to maintain its mechanical properties and Shore hardness (30A–90A), delivering consistent, repeatable parts for applications in automotive, aerospace, and medical industries.
Why Choose CNC Machining for Rubber Parts?
No molds required. Parts are machined directly from raw material, eliminating thousands in tooling costs and making it ideal for prototypes and small-to-medium batches.
Skip the 4–6 week mold lead time. Go from CAD to finished parts in as fast as 24–48 hours—perfect for tight deadlines and rapid development cycles.
No mold constraints. Design changes only require updating the CAD file, allowing fast iterations without additional cost or delays.
CNC machining removes the limits of molding, enabling deep grooves, undercuts, and tight tolerances (±0.05 mm), with clean, burr-free finishes and no flash.
We machine a wide range of vulcanized rubber, including Silicone, Viton (FKM), EPDM, Nitrile (NBR), and Neoprene—ready for applications requiring heat, chemical, or wear resistance.

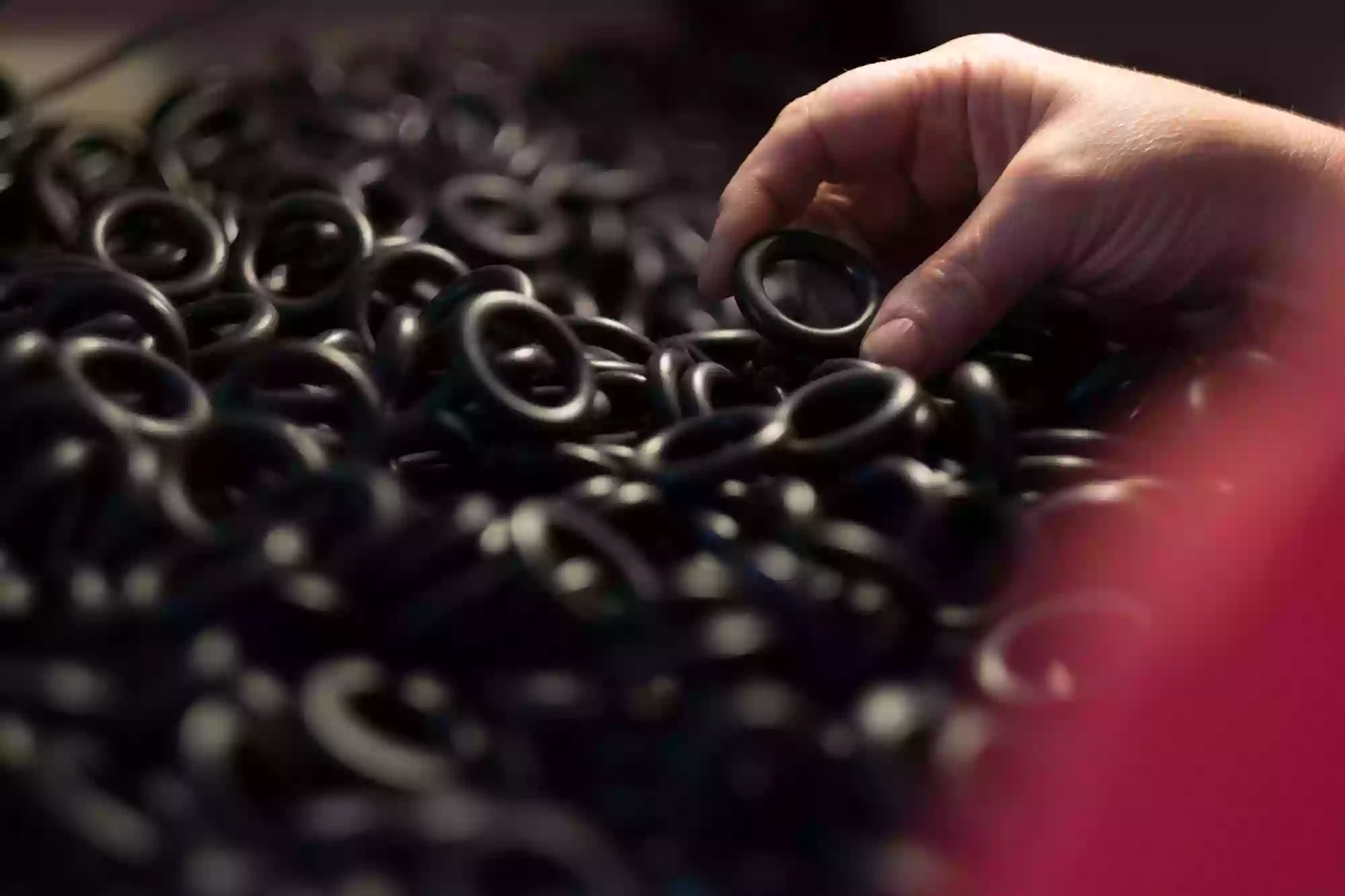

Rubber CNC Machining Materials
Material | Hardness (Shore) | Applications |
Viton™ (FKM) | 60A–90A | Extreme environments; heat (250°C), fuel & chemical resistance; aerospace engines |
Silicone | 20A–80A | Medical & food-grade seals; biocompatible parts; thermal insulation |
Nitrile (NBR) | 50A–90A | O-rings, fuel systems, hydrocarbon-resistant gaskets |
EPDM | 40A–80A | Outdoor seals; UV/ozone resistance; HVAC & hydraulic systems |
Polyurethane (PU/TPU) | 60A–80D | High wear parts; rollers, gears, impact components |
Neoprene (CR) | 40A–80A | Marine gaskets; HVAC sealing; general-purpose durability |
Natural Rubber | 40A–70A | Vibration damping; mounts; shock absorption |
Santoprene (TPV) | 35A–50D | Automotive seals; dynamic weather stripping |
Butyl | 40A–80A | Gas-tight seals; vacuum systems; chemical resistance |
ECH / Hypalon | 50A–80A | Fuel tubing; chemical & military-grade applications |
SBR / TPE | 30A–90A | Cost-effective parts; tires, grommets, medical tubing |
Precision Control for Elastic Rubber Materials

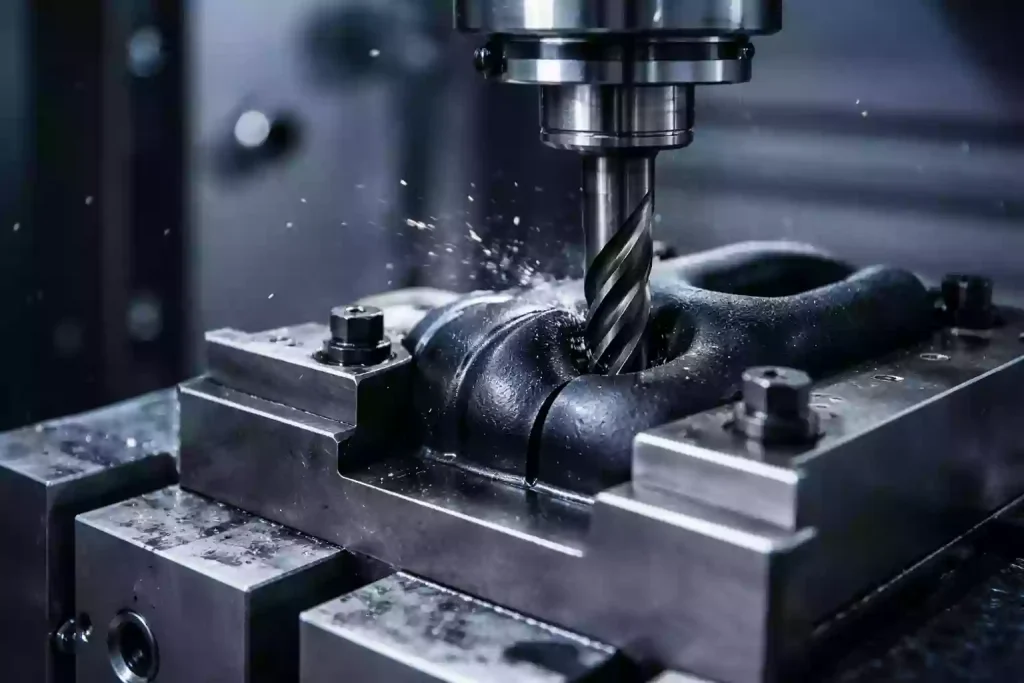

Rubber is inherently difficult to machine because it deforms under cutting force and rebounds after contact. This makes consistent precision a major challenge for most suppliers. As a specialized precision rubber parts machiner, we solve this by stabilizing the material during processing using cryogenic-assisted technology, high-speed spindles, and custom fixturing to control deformation at the source.As a result, we can reliably machine everything from ultra-soft elastomers (below Shore 40A) to hard compounds (up to 90A), maintaining tight tolerances of ±0.05 mm (±0.002”) with clean, burr-free edges and repeatable, metal-like accuracy.
Zero-Tooling Speed for Complex Rubber Parts
Traditional molding slows everything down with tooling costs, long lead times, and limited design flexibility, making it inefficient for prototyping and low-volume production. By eliminating molds entirely, we allow you to move directly from CAD to finished parts in as little as 24–48 hours, with no minimum order requirements. This not only reduces cost and accelerates development cycles, but also unlocks complex geometries—such as internal grooves, undercuts, and intricate cavities—that molding cannot achieve, giving you full design freedom without compromise.
Our CNC Rubber Machining Capabilities
CNC Milling
CNC Turning
CNC Grinding
CNC Machining
5-Axis CNC Machining
Assembly & Packaging
Our XTPROTO Facility
XTPROTO operates a high-capacity CNC machining hub with 600+ machines, enabling rapid prototyping and scalable production of rubber, polyurethane, and engineering plastic components. Our unified production system runs 24/7 with dedicated material-specific machining cells, eliminating bottlenecks and ensuring consistent precision at scale. Unlike traditional molding, we machine parts directly from solid stock, removing tooling costs and lead times while supporting everything from single prototypes to 10,000+ unit production runs. With specialized processing for elastomers and engineering plastics, we deliver tight-tolerance, complex geometries with production-level stability and speed.
Quality Assurance
At XTPROTO, quality is embedded in every stage of production. Machining rubber and other elastomers requires strict control of material deformation and thermal behavior, so our QC system combines advanced metrology with real-time process monitoring to ensure every part precisely matches CAD specifications. We use non-contact Automated Optical Inspection (AOI) for soft components, CMM systems for high-precision rigid parts, durometer testing for material hardness consistency, and surface profilometers to verify critical surface finishes.
Our quality process covers incoming material inspection, in-process control, and final 100% inspection with full traceability reports. To handle the challenges of flexible materials, we also use temperature- and humidity-controlled inspection environments along with custom fixturing to eliminate measurement deformation, ensuring parts are evaluated in their true manufactured state and consistently meet high-end engineering and aerospace-level precision standards.
Engineering Expertise
At XTPROTO, our engineering team bridges complex designs with production-ready machining solutions. With deep expertise in elastomer and polyurethane machining, we focus on optimizing every design for manufacturability, precision, and cost efficiency through structured DFM support, including tolerance refinement, material selection guidance, and geometry simplification before production begins.
Our engineers also specialize in solving the challenges of elastomer machining, such as custom tooling design, CAM-based compensation for deformation and shrinkage, and precision fixturing to prevent material distortion during processing. With full CAD/CAM integration and experience across 600+ CNC machines, we ensure every design is engineered for stable, scalable, and high-precision manufacturing.
Rubber Machining Surface Finishing Options
Rubber CNC Machining Tolerances
Machining elastomers requires precise control of tooling, speed, and temperature. At XTPROTO, we achieve stable, repeatable precision across rubber, polyurethane, and engineering plastics.
Standard Tolerances
- High-Precision Plastics / Rigid PU: Up to ±0.0038 mm (±0.00015”)
- High-Durometer Rubber (70A+): Up to ±0.127 mm (±0.005”)
- Standard Elastomers: ±0.25 mm (±0.010”)
- Large / Thin-Wall Parts: Controlled via optimized toolpaths and specialized fixturing.
How We Ensure Accuracy
- CNC interpolation for concentricity and dimensional control
- Digital programming for consistent batch repeatability
- Non-contact optical measurement to avoid material deformation
- Process compensation for temperature and material behavior
Why Choose XTPROTO?
Powered by 600+ in-house CNC machines, XTPROTO removes the cost and lead-time limitations of traditional molding while delivering high-precision elastomer machining at scale. We achieve up to ±0.00015” (±0.0038 mm) accuracy on demanding components, combining industrial production capacity with laboratory-level precision. By machining directly from solid stock, we eliminate tooling fees and enable full design flexibility from prototype to production.
Every project is supported by strict quality control and engineering-led DFM review to ensure optimal manufacturability, consistency, and performance. At XTPROTO, we deliver mission-critical rubber and polyurethane components with the speed, precision, and reliability required by the world’s most demanding industries.
Rubber CNC Machining Industries We Serve
Aerospace & Defense
Medical & Healthcare
Automotive & Transportation
Industrial & HVAC Systems
Electronics
Telecommunications
Rubber Machining FAQ
Which rubber material is best for high-temperature environments?
Do you provide rubber-to-metal or rubber-to-plastic bonding?
Do you produce custom gaskets or O-rings?
Is CNC rubber machining safe?
Can you handle fully custom projects?
Get Your Precision Rubber Machining Quote Today
Experience the exceptional CNC capabilities of XTPROTO. Powered by our efficient instant quoting system and deep expertise in elastomer processing, we provide a seamless manufacturing journey from prototype to full-scale production. As a leading precision rubber parts machiner, we are dedicated to transforming your designs into high-performance industrial reality.
