CNC Threading Services
Custom internal and external threads with unmatched precision, flexible production for single prototypes or high-volume runs, and rigorous quality control to ensure reliable results across automotive, aerospace, and industrial applications.
Custom CNC Threading Services
At XTPROTO, we provide comprehensive CNC threading services for businesses seeking reliable, high-precision threaded components. From single prototypes to large-scale OEM and contract manufacturing projects, our team delivers custom internal and external threads across a wide range of materials with unmatched accuracy. Every part undergoes rigorous quality control to ensure consistent performance, while our flexible production capabilities allow us to meet both standard and non-standard specifications for automotive, aerospace, medical, and industrial applications. Whether you need turnkey threaded solutions or support for complex contract manufacturing, XTPROTO combines advanced CNC technology with engineering expertise to deliver parts you can trust.
Quality Control & Trusted Results

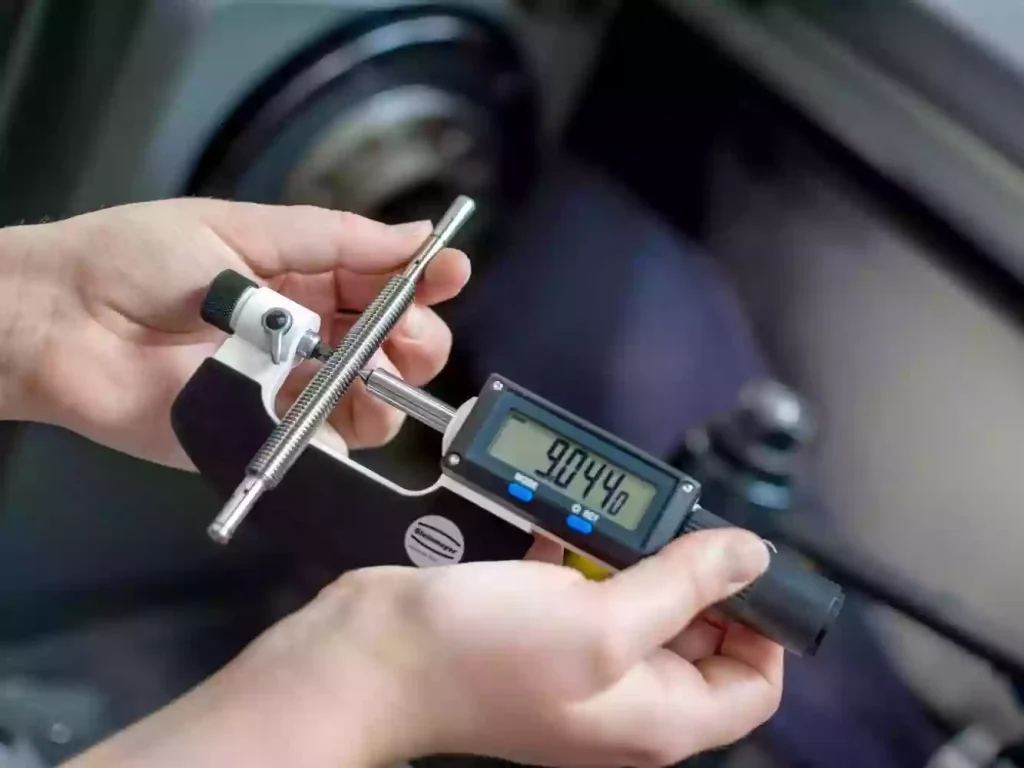

Every CNC threading component passes through a rigorous multi-step quality control process to ensure absolute reliability. Our workflow includes 100% dimensional inspection using calibrated micrometers and thread gauges, in-process verification with CNC probing systems, and final visual and functional checks to confirm thread engagement and torque performance. We maintain tolerances as tight as ±0.02 mm and routinely conduct statistical process control (SPC) to monitor batch consistency. Whether producing a single prototype, OEM batch, or large-scale contract order, our documented quality protocols and traceable inspection records give clients confidence in every part, reducing assembly errors and downtime. With XTPROTO, precision is backed by verified data, standardized procedures, and trusted engineering oversight—delivering threaded components that meet specifications every time.
Why Choose XTPROTO for CNC Threading
Our CNC Threading Capabilities
At XTPROTO, we provide full-service CNC threading solutions that combine advanced equipment and engineering expertise to deliver high-precision internal and external threads across a wide range of sizes and materials, including steel, aluminum, copper, and titanium. Whether it’s a single prototype, custom OEM order, or large-scale contract manufacturing project, we offer flexible production and fast turnaround to meet your schedule. Every part undergoes rigorous quality control, ensuring consistent performance and reliability, so you can trust XTPROTO to deliver precision threading solutions for any project.

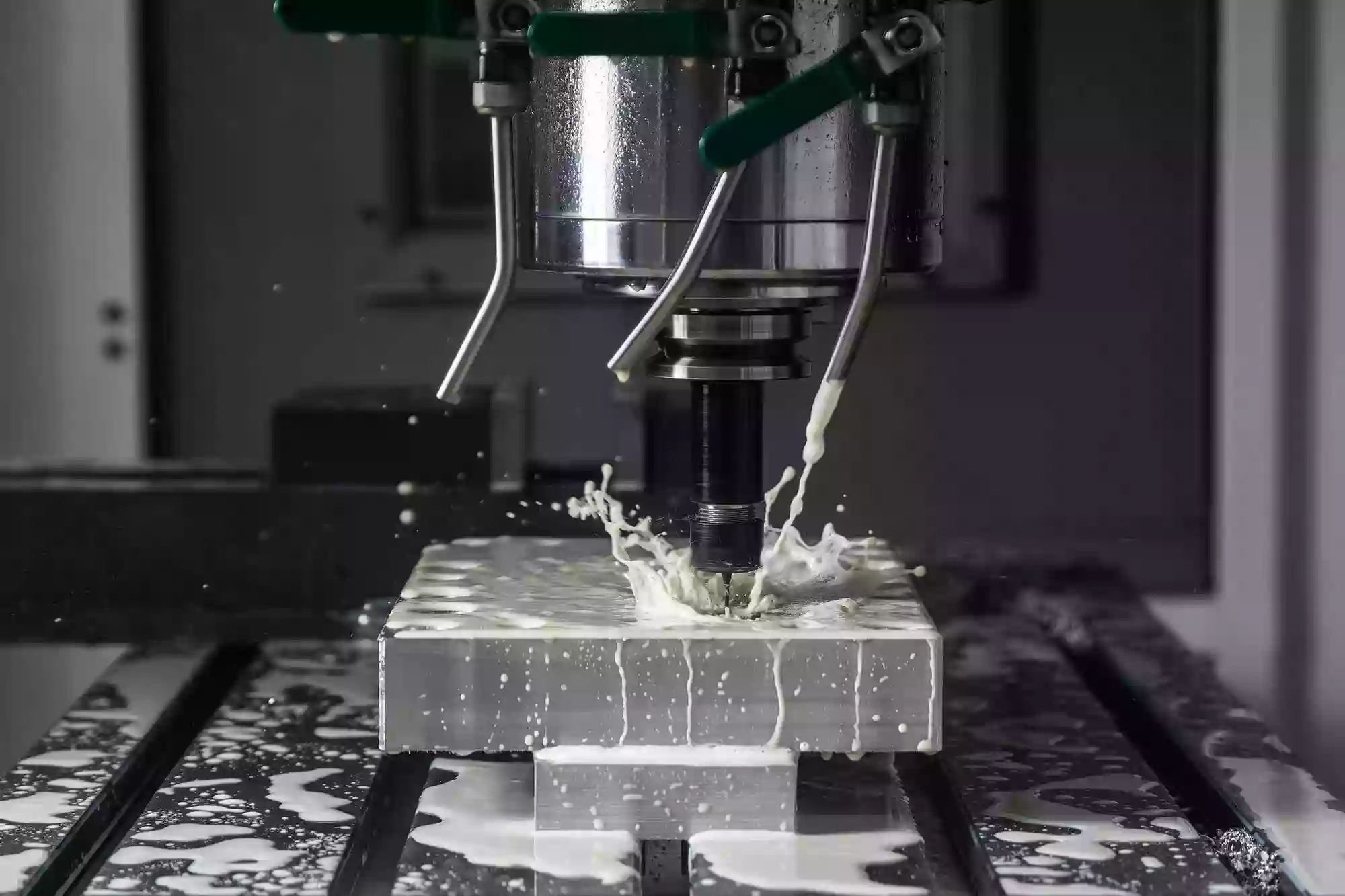

Advanced 5-Axis CNC Machining
In many industries, the precision of thread machining is paramount—particularly when dealing with large-angle internal threads or ultra-precision external threads. Even the slightest error can compromise assembly accuracy or, worse, bring an entire production line to a standstill. XTPROTO’s 5-axis CNC machining systems are specifically engineered to meet these complex thread machining requirements with exacting precision. Leveraging our automated tool control systems and modular fixturing solutions, we guarantee 100% repeatability in thread machining operations—from the very first prototype to OEM production runs of up to 10,000 units. We offer more than just thread-cutting services; by integrating multi-axis precision machining technology with a Just-In-Time (JIT) manufacturing model, we deliver high-quality, highly reliable solutions. This ensures that every component achieves a perfect fit, thereby helping you accelerate production timelines, mitigate supply chain risks, and guarantee that every product strictly adheres to precise specifications—ultimately ensuring the smooth and efficient operation of your business.
Flexible Production & Fast Turnaround
In today’s fast-paced manufacturing world, meeting tight deadlines and adapting to varying production volumes are critical challenges. Whether you need a single prototype, a small batch, or a large-scale OEM or contract manufacturing run, these demands often require high flexibility and precision to avoid delays and cost overruns. At XTPROTO, we understand these pain points and are equipped to handle any order size by adapting our workflows and equipment to meet the specific requirements of each project.
Our advanced threading capabilities, combined with multi-axis CNC machines, automated tool change systems, and modular fixturing, ensure we can seamlessly switch between different thread types, materials, and part sizes without sacrificing quality. Typical lead times range from as fast as 1 day for rapid machining to 1–4 weeks for larger-scale OEM or contract manufacturing orders. We offer real-time production tracking to ensure every project stays on schedule. With just-in-time scheduling and batch monitoring, XTPROTO ensures timely, high-quality threaded components, helping your production processes stay smooth, reliable, and efficient.
Our Manufacturing Facility
At XTPROTO, our production-ready facility is built for reliability and scalability, supporting projects from rapid prototyping to high-volume OEM and contract manufacturing. Spanning over 160,000 sq ft and staffed with 500+ skilled technicians and 120+ engineering specialists, we have the expertise and capacity to produce complex internal and external threads across a wide range of materials and part sizes. Equipped with advanced 3-axis, 4-axis, and 5-axis CNC systems, along with automated tool management and modular fixturing, our workflows ensure efficiency, batch control, and precise quality validation. XTPROTO consistently delivers tight tolerances, stable lead times, and dependable results, making us a trusted partner for long-term industrial supply chains.
Quality Inspection & Assurance
Quality is built into every stage of our CNC threading process and supported by an ISO 9001:2015 certified quality management system, ensuring consistent, traceable, and reliable results.
A standardized quality management framework that ensures process control, consistency, and continuous improvement across all operations.
Initial samples are fully validated against drawings before production begins, ensuring accuracy from the start.
Ongoing inspection during machining to monitor thread dimensions, pitch accuracy, and surface quality, preventing deviations early.
Each component is checked using calibrated thread gauges (Go/No-Go) and precision measurement tools to ensure proper fit and compliance.
Every order is documented and tracked, ensuring repeatable quality from prototypes to high-volume OEM and contract manufacturing.
Detailed dimensional reports and quality records are available upon request to support your internal QA and compliance needs.
CNC Threading Materials We Work With
With optimized toolpaths, specialized cooling, and 5-axis CNC precision, XTPROTO ensures burr-free threads, consistent pitch accuracy, and zero material deformation, from prototypes to full-scale OEM or contract manufacturing runs.
Engineering Plastics
- PEEK & Ultem– High thermal and mechanical stability.
- POM (Acetal/Delrin)– Low-friction, precise threads.
- Nylon & PTFE– Self-lubricating, chemically resistant.
High-Performance Metals
- Aluminum Alloys (6061-T6, 7075-T6, 2024)– Lightweight, strong, and ideal for threaded components.
- Stainless Steel (304, 316L, 17-4 PH)– Corrosion-resistant with precise thread integrity.
- Steels: Carbon, Alloy, Tool Steels– Durable threads for industrial applications.
- Red Metals: Brass, Copper, Bronze– Burr-free threads with excellent conductivity.
- Titanium (Grade 2, Grade 5)– High-strength threads, including biocompatible applications.
- Superalloys: Inconel, Hastelloy– Extreme heat and chemical resistance for demanding projects.
Thread Tolerances
Thread Type | Standard Tolerance | Notes / High-Precision Options |
Internal Threads | ±0.02 mm (±0.0008″) | Tighter tolerances available on request; ensures perfect pitch and concentricity |
External Threads | ±0.02 mm (±0.0008″) | Suitable for high-precision assemblies; repeatable across prototypes and OEM runs |
Pitch & Thread Profile | Standard & Custom | Custom tolerances supported for demanding designs and materials |
CNC Threading Process
- Review your CAD files or technical drawings
- Advise on thread type, pitch, material, and manufacturability
- Optimize for cost, speed, and precision
- Choose the ideal metal or engineering plastic
- Cut raw stock to size, pre-machining inspection
- Set up material-specific tooling and cooling parameters
- Program threads for internal and external features
- Utilize 5-axis CNC machines for complex geometries
- Automated toolpaths ensure repeatable, burr-free threads
- Measure thread pitch, concentricity, and tolerance
- Use advanced metrology tools for precise verification
- Ensure compliance with client specifications and OEM standards
- Deburring, surface treatment, or coating as needed
- Packaging optimized for safe transport
- Fast, reliable delivery for prototypes, OEM batches, and contract manufacturing
CNC Threading For Surface Finishing
After the CNC threading process, surface finishing is a critical step to improve both the functionality and appearance of threaded components. This additional treatment ensures the threads are smooth, durable, and capable of withstanding wear, corrosion, and other environmental factors. At XTPROTO, we offer a variety of surface finishing options tailored to meet your specific requirements.
Surface Finishing | Description | Benefits |
Anodizing | A process that adds a protective oxide layer to the surface of aluminum parts. It enhances corrosion resistance and surface hardness. | Increases durability, wear resistance, and corrosion protection. |
Electroplating | A coating process where a metal layer is deposited onto the threaded part, often used for components requiring extra protection against corrosion. | Provides corrosion resistance and improves wear resistance. |
Polishing | A surface finishing technique that smooths the surface to a mirror-like finish, often used for aesthetic or functional applications. | Improves appearance, reduces friction, and enhances thread engagement. |
Passivation | A chemical treatment used to enhance the corrosion resistance of stainless steel parts by removing free iron from the surface. | Protects against rust and corrosion, especially in harsh environments. |
Coating | Applying a protective layer, such as a dry film lubricant or a specialized coating, to increase resistance to wear, heat, or chemicals. | Provides additional protection for demanding applications and environments. |
Supported Thread Sizes
Thread Type | Size Range (Metric / Imperial) | Notes / Capabilities |
Internal Threads | M1 – M36 / #0 – 1-1/2″ | Standard & custom pitches; deep internal threads supported |
External Threads | M1 – M50 / #0 – 2″ | Complex external threads on cylindrical and multi-axis surfaces |
Max Length / Depth | Up to 300 mm (12″) / Depth 150 mm (6″) | Long threads and blind threads supported for prototypes and OEM runs |
Applications Of CNC Threading
Aerospace Industry
Automotive
Medical Devices
Electronics & Telecom
Energy & Power Systems
Military & Defense
What is CNC Threading?
CNC threading is a precision process that uses computer-controlled machines to create internal or external threads on parts. This method offers exceptional accuracy and repeatability, allowing for the production of complex, non-standard threads across a variety of materials like steel, aluminum, copper, and titanium.
At XTPROTO, we handle everything from one-off prototypes to large-scale OEM and contract manufacturing orders. Our threaded components meet stringent tolerances and industry standards, serving sectors such as automotive, aerospace, medical, and industrial. By combining cutting-edge technology with expert engineering, we ensure each part performs reliably and fits perfectly into its intended assembly.
Thread Types
Thread Type | Description / Features |
Metric Threads (M1 – M36) | Standard ISO threads for international applications. Ideal for precision prototypes and OEM runs. |
Imperial Threads (#0 – 2″) | UNC, UNF, NPT, BSPP threads for global industrial standards. Reliable, repeatable performance. |
Custom & Special Threads | Non-standard pitches, angled threads, ACME / Trapezoidal profiles. Multi-axis and complex geometries handled. |
Internal Threads | Blind or through-hole threads for precision assemblies. Supports deep threads and high-repeatability prototypes. |
External Threads | Cylindrical and multi-axis external threads. Handles long, tapered, and complex surfaces with tight tolerances. |
Other CNC Machining Processes
CNC Milling
CNC Turning
CNC Drilling & Tapping
CNC Routing
CNC Grinding
Wire & Sinker EDM
CNC Machining
Frequently Asked Questions Of CNC Threading
What types of threads can you produce?
What materials are suitable for CNC threading?
What tolerances can you achieve for threaded parts?
Do you support custom thread specifications?
What is your typical lead time?
How do you ensure thread quality?
Precision CNC Threading, Delivered
From prototypes to high-volume OEM projects, XTPROTO provides reliable, high-precision CNC threading across a wide range of materials. Advanced 5-axis machining, strict quality control, and flexible production workflows ensure every thread meets your specifications—on time, every time.
