PVC CNC Machining
Consolidate your supply chain with our end-to-end CNC machining and professional fabrication services. We deliver high-tolerance PVC components and welded assemblies ready for immediate installation in your fluid handling systems.
A Leading Manufacturer of Precision CNC Machining PVC Parts
We provide high-performance PVC machining services tailored for the most demanding chemical and industrial applications. Our expertise focuses on preserving the chemical integrity of the material while delivering complex integrated assemblies that go beyond simple parts.
Utilizing specialized tooling and stress-relief techniques, we ensure every component is dimensionally stable, warp-free, and ready for critical environments. From rapid prototyping to full-scale structural fabrication, we are your single source for high-reliability PVC solutions.
What is PVC CNC Machining?

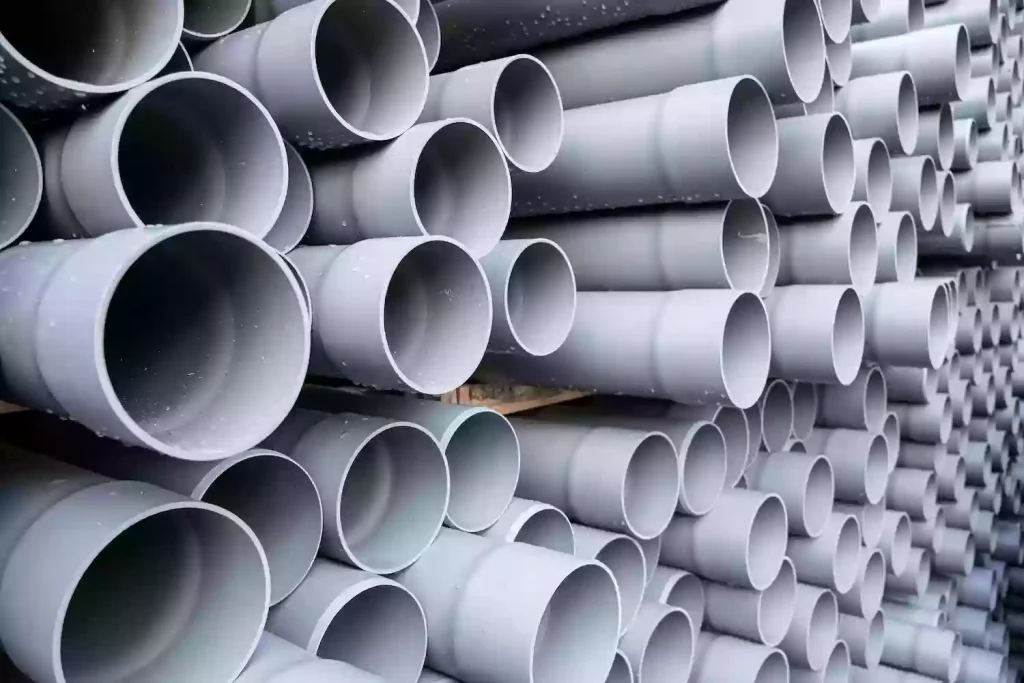

PVC (Polyvinyl Chloride) is a durable, chemical-resistant thermoplastic widely used in fluid handling, chemical processing, and industrial applications. It offers a lightweight and cost-effective alternative to metal for corrosion-resistant components.

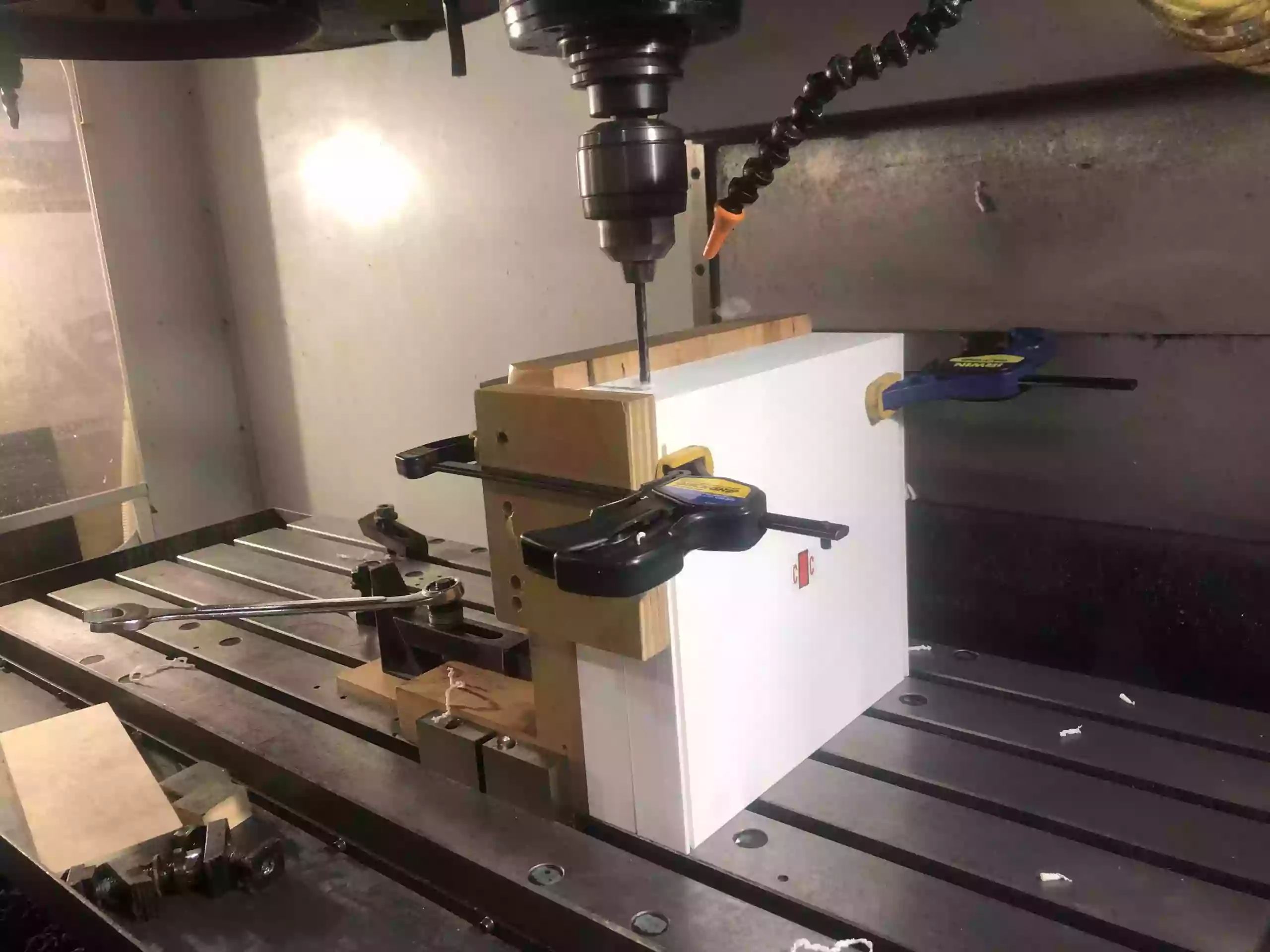

PVC CNC machining is the precision manufacturing process of shaping PVC into custom parts using computer-controlled cutting tools. Because PVC is heat-sensitive, proper machining requires controlled cutting parameters to prevent melting or warping. The result is accurate, high-tolerance components with excellent chemical stability and reliable performance in demanding environments.
Types of PVC Materials We Machine at XTPROTO
At XTPROTO, we provide precision PVC CNC machining services across a wide range of industrial, chemical, and engineering applications. We machine multiple grades of PVC to meet specific performance and environmental requirements:
PVC Material Properties
| Property | Unit | Value |
| Density | g/cm³ | 1.38–1.39 |
| Tensile Strength | MPa | 50–80 |
| Elongation at Break | % | 20–40 |
| Hardness | Shore D / Rockwell | D77 / HRR >90 |
| Elastic Modulus | MPa | 2900–3400 |
| Melting Point | °C | 212 |
| Glass Transition Temperature | °C | 87 |
| Operating Temperature | °C | -15 to 80 |
| Thermal Conductivity | W/(m·K) | 0.16 |
| Water Absorption | % | 0.04–0.75 |
| Thermal Expansion Coefficient | /K | 8×10⁻⁵ |
| Colors Available | — | Off-white, Gray |
Pons of PVC CNC Machining
- Excellent Chemical Resistance
- Strong Electrical Insulation
- High Durability & Corrosion Resistance
- Flame Retardant Properties
- Good Mechanical Strength
- Lightweight & Easy to Machine
Common PVC Machined Parts
- Valve bodies and pump components
- Wear plates and chain guides
- PVC pipes, tubes, and fittings
- Electrical housings and insulation parts
- Semiconductor equipment components
- Medical and laboratory device parts
- Gaskets and bearing-related components
- Marine and corrosion-resistant parts
- Custom industrial structural components
Precision PVC Machining: The XTPROTO Standard
Uncompromising accuracy. Superior chemical resistance. Complex integrated assemblies. Discover how our specialized CNC capabilities transform PVC into your most reliable engineering assets.
Preserving Chemical Integrity
Standard machining processes can introduce heat stress and surface contamination, reducing PVC’s chemical resistance in aggressive acid or alkali conditions. At XTPROTO, we apply controlled dry cutting and low-friction tooling to minimize thermal impact and preserve material stability. Components retain full corrosion resistance and long-term structural reliability.
Integrated Structural Fabrication
Complex PVC parts such as manifolds, housings, or chemical tanks often require multi-process manufacturing. Instead of fragmented production, XTPROTO integrates multi-axis CNC machining with precision bonding and assembly processes to ensure dimensional alignment across the entire structure.Fully assembled, installation-ready components with consistent accuracy and reduced supply chain complexity.
XTPROTO PVC CNC Machining Capabilities
Precision Multi-Axis Machining
We utilize 3-axis, 4-axis, and 5-axis CNC machining systems to produce high-precision PVC components with complex geometries and consistent dimensional accuracy.
Capability Highlights:
- Tight tolerance machining up to ±0.005 mm
- Complex 3D geometry production
- High repeatability for batch manufacturing
Chemical-Resistant Process Control
PVC is sensitive to heat and surface stress. We use optimized cutting parameters and controlled dry machining processes to prevent deformation and preserve chemical resistance.
Capability Highlights:
- Low-heat cutting strategy
- Anti-contamination machining environment
- Stable performance for corrosive applications
Integrated Manufacturing Solutions
We combine CNC machining with bonding, welding, and surface finishing to deliver fully functional PVC assemblies without external processing delays.
Capability Highlights:
- CNC machining + assembly integration
- Precision bonding and sealing
- Reduced supply chain complexity
Custom Engineering Support
Our engineering team supports material selection, design optimization, and manufacturability analysis to ensure each PVC part performs reliably in its application.
Capability Highlights:
- DFM (Design for Manufacturability) review
- Material grade selection (PVC-U / CPVC / PVC-M / etc.)
- Prototype to mass production support
Scalable Production Capacity
XTPROTO supports both low-volume prototyping and large-scale production runs with consistent quality control and fast turnaround times.
Capability Highlights:
- Rapid prototyping capability
- Stable batch production control
- Fast delivery for OEM/ODM projects
Quality Control for Every PVC Component
Dimensional Inspection
We verify all critical dimensions using high-precision measuring equipment to ensure compliance with design specifications and tight tolerances.
- CMM (Coordinate Measuring Machine) inspection
- Caliper & micrometer verification
- Critical tolerance control up to ±0.005 mm
Material Verification
We ensure all PVC materials meet required specifications before and after machining to guarantee consistent mechanical and chemical performance.
- Raw material grade confirmation (PVC-U / CPVC / PVC-M etc.)
- Density and hardness checks
- Batch traceability control
Surface Quality Inspection
All machined surfaces are inspected to ensure smoothness, cleanliness, and defect-free finishing suitable for industrial applications.
- Visual inspection for scratches and defects
- Burr-free edge verification
- Surface consistency control
Functional & Assembly Testing
For assembled or multi-part components, we perform fit and functional verification to ensure proper integration.
- Dry fit testing
- Assembly alignment check
- Leak or pressure test (if required)
Final Quality Assurance (FQC)
Each batch undergoes final inspection before shipment to ensure consistent quality and compliance with customer requirements.
- Final dimensional audit
- Documentation & inspection reports
- 100% visual check before packaging
Expert Engineering Support Behind Every PVC Part
DFM Analysis
We evaluate your CAD models to optimize geometry, reduce machining risks, and improve production efficiency.
- Geometry optimization for CNC machining
- Tolerance feasibility analysis
- Cost and efficiency improvement suggestions
Material Selection Guidance
Our engineers help select the most suitable PVC grade based on mechanical, chemical, and environmental requirements.
- PVC-U / CPVC / PVC-M / PVC-O selection support
- Application-based material matching
- Performance optimization recommendations
Process Planning & Machining Strategy
We develop efficient machining strategies to ensure precision, stability, and repeatability in production.
- Multi-axis machining strategy planning
- Tool selection and cutting parameter optimization
Heat control and deformation prevention
Prototype Development Support
We assist in rapid prototyping to validate design, function, and manufacturability before mass production.
- Fast-turnaround prototype machining
- Functional verification support
- Iterative design improvement
Production Engineering Support
From small batches to full-scale manufacturing, we ensure stable processes and consistent quality output.
- Process standardization
- Batch consistency control
- Production scaling support
XTPROTO Manufacturing Facility
Our facility is optimized for precision PVC and engineering plastic production, equipped with multi-axis CNC systems and organized production zones.
By keeping all machining, finishing, and assembly in-house , we maintain total control over quality and lead times. Our workflow is built for both rapid prototyping and stable, high-volume production, ensuring every component meets your exact specifications through consistent, rigorous inspection.
From Machining to Complete Delivery
Additional processes and support services that ensure reliable production outcomes.
PVC CNC Machining Specifications
- Maximum Part Size:Up to 500 × 500 × 500 mm (depending on part geometry and machining conditions)
- Tolerance:As low as ±0.010 in (±0.25 mm), depending on material and design requirements
- Lead Time:From 1–3 days (as fast as 1 day depending on complexity)
- Wall Thickness:From 0.8 mm
- Surface Finish:CNC machined finish (Ra 3.2–1.6 μm typical), deburring available
Surface Finishing for PVC Machining
Although PVC is typically used for functional applications, surface finishing can be applied to improve fit, safety, and performance in specific use cases.
Why Choose XTPROTO for PVC Machining?
- Precision Engineering:Tight tolerances up to ±0.002″ for stable and accurate industrial components.
- Material Control:PVC sourced from verified suppliers for consistent and reliable material properties.
- Scalable Production:From prototypes to high-volume manufacturing with consistent repeatability.
- In-House Process:CAD support, CNC machining, welding, and finishing all handled internally.
- ISO 9001 Quality System:Structured inspection process ensuring every part meets specification requirements.
- Complex Machining Capability:5-axis CNC machining for intricate parts including manifolds and housings.
Industries We Serve
XTPROTO provides precision PVC CNC machining solutions for a wide range of industrial applications where chemical resistance, insulation, and durability are critical.
Semiconductor
Medical & Laboratory Equipment
Electronics & Electrical
Marine & Offshore Engineering
Food Processing
Industrial Equipment
FAQ
How do you control thermal deformation and dimensional deviation in PVC machining?
How do you prevent micro-cracking during PVC machining?
How do you ensure strength and sealing performance in complex PVC welded assemblies?
What compliance-grade PVC materials do you support?
How do you handle surface finish inside deep holes or complex internal channels?
Ready to Start Your PVC CNC Project?
High-performance applications require precision engineering, not just machining. At XTPROTO, we deliver reliable PVC components built for demanding industrial environments.
