Semiconductor CNC Machining Services
CNC machining for the semiconductor industry. We machine PEEK, Quartz, and Stainless Steel components. 5-axis machining for vacuum chambers and wafer handling tools.

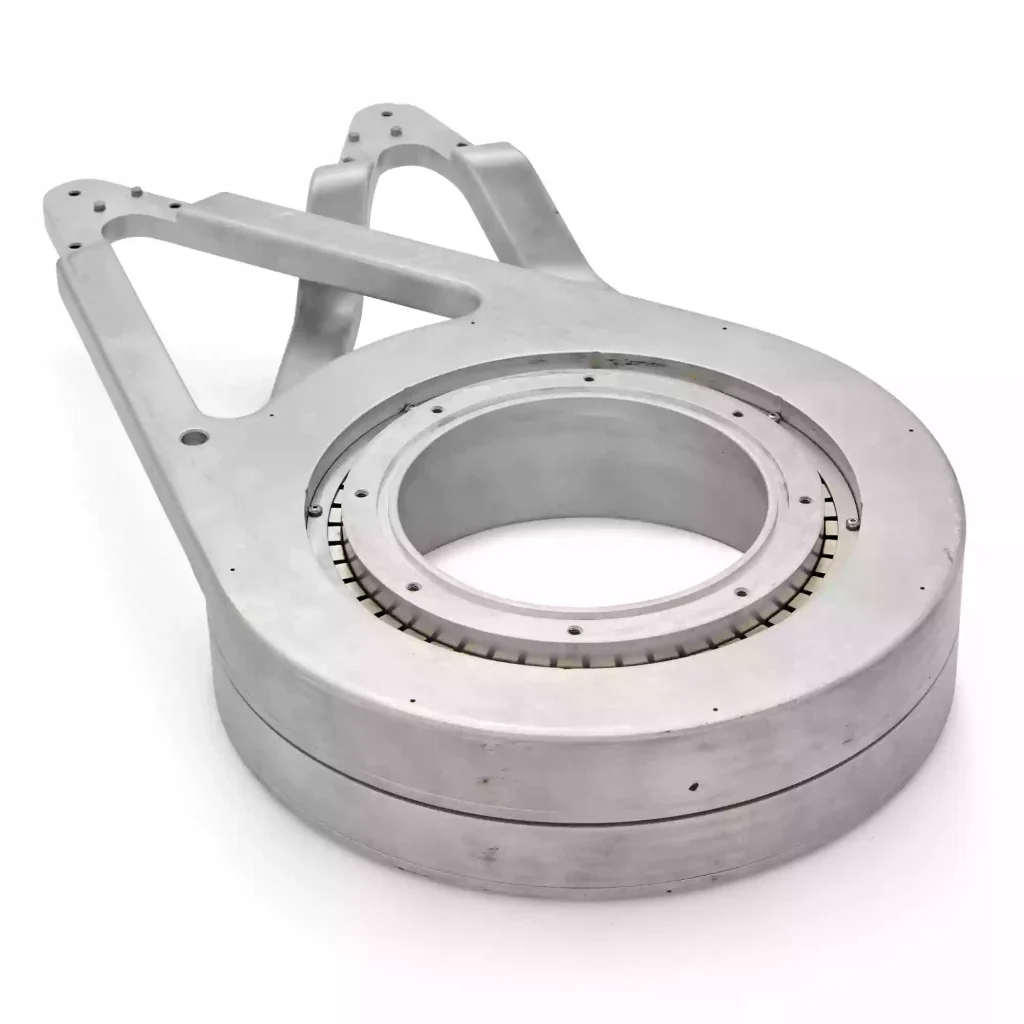

Custom Semiconductor CNC Machining Services
XTPROTO provides high-precision Semiconductor CNC Machining Services, delivering critical components for wafer fabrication equipment and cleanroom applications. We specialize in build-to-print manufacturing, utilizing advanced 3-, 4-, and 5-axis CNC technology to transform complex designs into finished parts. From NPI prototyping and First-Article Inspection (FAI) to scalable production, we streamline your transition from engineering to assembly.
Our machining processes are optimized for contamination-sensitive and particle-critical environments, with strict control over surface finish, burr minimization, and dimensional repeatability. We achieve tight tolerances down to ±0.005 mm while maintaining consistent quality across batches. We process a wide range of materials, including aluminum, stainless steel, and high-performance plastics such as PEEK, ensuring compatibility with vacuum and high-purity applications.With integrated inventory planning and reliable global delivery, XTPROTO supports stable production scheduling—while maintaining the precision, consistency, and traceability required for semiconductor manufacturing.
Semiconductor CNC Machining Contract Manufacturing Factory
XTPROTO operates a 160,000 sq. ft. advanced CNC manufacturing facility equipped with over 600 machining centers and supporting production systems. Supported by a workforce of more than 500 employees, including 120+ engineers and manufacturing specialists, we provide the industrial capacity required for global semiconductor equipment production.
Our integrated manufacturing system unifies engineering, CNC machining, and quality management into a single controlled workflow, enabling stable execution from NPI prototyping to high-volume contract manufacturing. This structure ensures consistent output, controlled lead times, and scalable production for complex, tight-tolerance components.
We maintain a dedicated engineering and quality organization responsible for process planning, DFM analysis, and production validation. This enables early identification of manufacturability risks and ensures full compliance with engineering requirements throughout the product lifecycle. With extensive experience in precision manufacturing for advanced industries, XTPROTO supports complex assemblies and recurring production programs with stable, repeatable performance.
Semiconductor CNC Machining Capabilities
XTPROTO utilizes advanced 3-, 4-, and 5-axis CNC machining centers to machine complex semiconductor components. By enabling multi-surface processing in a single setup, we ensure high geometric accuracy and strong repeatability across production runs.
We achieve tolerances as tight as ±0.005 mm through stable thermal control and optimized machining parameters. Our process is reinforced by in-house CMM inspection at critical stages, ensuring full compliance with engineering drawings.
By strictly monitoring tool wear, surface finish, and burr formation, we maintain consistent dimensional quality and reliable performance across both prototypes and production volumes.
Advanced Material Expertise
Semiconductor components operate in vacuum, plasma, and chemically aggressive environments where material instability can lead to deformation, contamination, or premature failure. XTPROTO addresses this by machining a wide range of high-performance materials, including Al6061-T6, 316L stainless steel, and engineering plastics such as PEEK, Vespel, and Torlon, with full material traceability throughout production. Our machining parameters are optimized for the thermal expansion, hardness, and chemical resistance characteristics of each material, ensuring structural stability and dimensional reliability in critical semiconductor applications.
Micron-Level Precision & Tight Tolerances
In semiconductor equipment, even micron-level deviations in concentricity, flatness, or hole alignment can impact system performance and process yield. XTPROTO utilizes advanced 5-axis CNC machining combined with controlled thermal management to maintain tolerances as tight as ±0.005 mm across complex geometries. All critical features are validated through in-house CMM and optical inspection, ensuring full compliance with engineering drawings and consistent dimensional accuracy from prototype to production.
NPI to Scalable Production Support
Semiconductor development cycles require rapid iteration at early stages while maintaining strict consistency during volume scaling. XTPROTO supports this transition through a structured NPI workflow, enabling fast prototype validation and controlled first-article inspection before ramping into scheduled batch production. With integrated production planning and flexible manufacturing capacity, we ensure stable lead times and repeatable output across both low- and high-volume runs, supporting uninterrupted supply for semiconductor equipment manufacturers.
Contamination & Surface Integrity Control
Particle contamination and surface defects such as burrs or inconsistent roughness can compromise wafer handling, gas delivery, and vacuum integrity. To mitigate these risks, XTPROTO implements strict process controls focused on burr minimization and surface finish stability (Ra per specification). Each component undergoes ultrasonic cleaning and controlled handling procedures, followed by vacuum-grade packaging to prevent cross-contamination, ensuring immediate readiness for cleanroom integration.
Semiconductor CNC Machining Service Options
CNC Machining
CNC Milling
CNC Turning
5-Axis CNC Machining
Wire EDM
CNC Drilling
Swiss Machining
CNC Routing
CNC Grinding
Quality Assurance & Metrology
Quality is embedded throughout XTPROTO’s semiconductor CNC machining process. We operate a fully implemented Quality Management System (QMS) certified to ISO 9001, ISO 14001, and IATF 16949 standards, ensuring controlled and repeatable production from material intake to final inspection. Every component is verified against engineering drawings through structured inspection workflows, ensuring full dimensional and functional compliance. Each shipment includes complete traceability documentation, including CMM inspection reports, Material Test Reports (MTR), and Certificates of Conformance (CoC).
Our advanced metrology system integrates Hexagon CMMs, 2D optical comparators, and digital height gauges for dimensional inspection, supported by optical measurement systems and precision gauges for geometric verification including flatness, concentricity, threads, and profiles. Surface roughness testing (Ra per specification), XRF material analysis, and high-magnification digital microscopy ensure surface integrity, alloy verification, and micro-feature inspection.
Across all production stages, we maintain strict process control over tool wear, thermal stability, and machining consistency. Post-machining validation includes contamination inspection, ultrasonic cleaning verification, and particle-free packaging, ensuring consistent, traceable, and high-reliability quality performance for semiconductor applications.
Engineering & Technical Support
At XTPROTO, our engineering team bridges complex semiconductor designs with precision CNC machining execution. With 120+ engineers and manufacturing specialists, we support NPI (New Product Introduction) and custom machining projects by analyzing design intent, improving machinability, and ensuring stable CNC execution for complex geometries and tight-tolerance parts.
We provide comprehensive DFM (Design for Manufacturability) review, identifying machining risks, simplifying complex features, and optimizing designs for stable CNC processing. Our capabilities include process engineering and fixture design for multi-axis machining stability, CAM programming and toolpath optimization to improve efficiency and reduce tool wear, and material engineering support for aluminum alloys, 316L stainless steel, and engineering plastics such as PEEK and Vespel to ensure performance in vacuum and harsh environments. Through early-stage technical consultation and risk analysis (thermal deformation, tool interference, structural constraints), we help ensure reliable and efficient CNC machining execution from design stage onward.
Advanced CNC Machining Fleet & Capacity
XTPROTO operates a high-capacity CNC machining facility with over 600 advanced machining units, supporting semiconductor-grade precision components across prototyping and production programs. Our equipment is organized into dedicated machining clusters including 80+ 5-axis CNC machining centers, 300+ 3/4-axis milling systems, 150+ precision lathes, and 70+ Swiss-type machines. This large-scale production base allows us to flexibly scale from NPI builds to continuous batch production while maintaining stable repeatability and process control. By supporting multi-surface processing in a single setup, our fleet ensures high geometric accuracy for complex semiconductor geometries and provides sufficient production coverage for high-volume machining programs with 0.005 mm tolerance consistency.
Semiconductor CNC Machining Materials
XTPROTO machines a wide range of metals and high-performance engineering plastics used in semiconductor and precision applications.
Semiconductor Metal Materials
Material | Grades | Typical Applications |
Aluminum | 6061-T6, 7075, 5083 | Vacuum chambers, structural frames, enclosures |
Stainless Steel | 304, 316, 316L | Gas systems, fluid handling, corrosion-resistant parts |
Copper | C101, C110, CuCrZr | Thermal management, RF components, conductive parts |
Semiconductor Engineering Plastics
Material | Key Properties | Typical Applications |
PEEK | High temperature resistance, vacuum compatible | Semiconductor fixtures, insulation parts |
Vespel (Polyimide) | Ultra-low outgassing, thermal stability | Cleanroom and vacuum components |
PTFE (Teflon) | Chemical resistance, low friction | Seals, insulation, chemical systems |
Semiconductor CNC Machining Surface Finishing
XTPROTO provides surface finishing solutions for semiconductor CNC machined components, improving cleanliness, corrosion resistance, vacuum compatibility, and functional durability in demanding environments.
Functional Category | Surface Finishing Processes | Semiconductor Applications |
Cleanliness & Particle Control | Ultra-fine Polishing, CMP, Mirror Buffing | Reduces particle generation for wafer handling and cleanroom components |
Corrosion & Chemical Resistance | Anodizing (Type II/III), Hard Anodizing, Chem Film | Protects aluminum parts exposed to acids, solvents, and cleaning agents |
Vacuum & UHV Compatibility | Electropolishing, Nitric/Citric Passivation | Improves outgassing performance for stainless steel vacuum systems |
Wear Resistance & Durability | Hard Chrome, Electroless Nickel, DLC Coating | Enhances hardness and reduces friction for motion systems |
Conductivity & Thermal Management | Gold/Silver Plating, Copper Plating | Ensures conductivity and thermal transfer for RF and heat components |
Dielectric & Plasma Stability | Ceramic Coatings (Al₂O₃, TiO₂), PFA Coating | Provides insulation and plasma resistance for high-energy environments |
Tolerances for Semiconductor CNC Machining
Application Area | Key Tolerance Requirements | Example Components |
Vacuum & Sealing Interfaces | Flatness, perpendicularity, surface finish (±0.005–0.02 mm) | Vacuum chambers, sealing rings, ISO-KF/CF flanges |
Wafer Handling & Robotics | Positional accuracy, parallelism, motion stability (±0.005–0.02 mm) | Robot arms, alignment brackets, end effectors |
Thermal Management Systems | Surface flatness, depth accuracy, thermal contact (±0.01–0.02 mm) | Cold plates, heat sinks, thermal housings |
Optical & Sensor Modules | Hole position, slot width, angular accuracy (±0.005–0.015 mm) | Optical mounts, sensor bases, camera brackets |
Fluid & Gas Delivery Systems | Concentricity, channel accuracy, sealing fit (±0.005–0.02 mm) | Manifolds, MFC housings, micro-channel blocks |
Fixtures & Test Equipment | Repeatability, dimensional stability, edge quality (±0.005–0.02 mm) | PEEK nests, test sockets, precision bases |
Semiconductor Applications & Machined Parts
Vacuum chambers · Wafer chucks · Gas manifolds · Electrostatic chucks · Cooling plates
Alignment stages · Lens mounts · Precision frames · Protective housings · Optical brackets
End effectors · Robotic arms · Wafer carriers · Linear guides · Positioning fixtures
Test sockets · Probe fixtures · Connector modules · Precision housings · Inspection bases
Machine bases · Structural frames · Panels · Mounting brackets · Protective covers
Heat sinks · RF housings · Sensor enclosures · Micro connectors · Custom adapters
What is Semiconductor CNC Machining?
Semiconductor CNC machining is a computer-controlled manufacturing process used to produce high-precision components for semiconductor equipment. It enables milling, turning, drilling, and shaping operations with micron-level accuracy and repeatability based on digital programming.
These parts are used in wafer processing, vacuum systems, motion control, and testing equipment, including heat sinks, wafer handling components, precision housings, and custom connectors. Due to strict requirements for vacuum compatibility, thermal stability, and cleanliness, components must meet tight tolerances and controlled surface quality.
XTPROTO machines semiconductor-grade materials including aluminum alloys, stainless steel, copper, and engineering plastics such as PEEK, PTFE, Ultem, and Torlon, ensuring stable performance in critical applications.
Why Choose XTPROTO for Semiconductor Machining?
XTPROTO delivers high-precision CNC machined components for semiconductor equipment with tight tolerances, cleanroom-compatible processing, and stable performance in vacuum and high-purity environments. We support rapid prototyping to full production with consistent quality, backed by strict contamination control, ISO 9001-based inspection, and end-to-end engineering support including DFM and process optimization.
Frequently Asked Questions for Semiconductor Machining
What is XTPROTO’s typical lead time for semiconductor components?
Can you machine high-performance plastics like Vespel and PEEK?
How do you ensure part cleanliness for cleanroom use?
What is your Minimum Order Quantity (MOQ)?
Do you support DFM (Design for Manufacturability)?
How do you protect intellectual property (IP)?
Trusted CNC Machining Partner for Semiconductor Applications
XTPROTO is a precision CNC machining partner for semiconductor equipment manufacturers, delivering high-quality components for wafer processing, vacuum systems, and advanced electronic assemblies. We are committed to supporting your projects with consistent quality, engineering expertise, and reliable delivery from prototype to production. Contact our team to discuss your requirements and see how we can support your next semiconductor project.
