Electronics CNC Machining Services
Precision-driven CNC machining for electronic products, achieving tolerances down to ±0.005 mm for high-precision parts. We optimize heat dissipation, ensure effective EMI shielding, and maintain low-resistance electrical performance. Supporting features as small as 0.2 mm and wall thicknesses down to 0.5 mm, we deliver prototypes in 1–3 days and scale to full production with consistent, repeatable quality.
Integrated Contract Manufacturing for Electronics
From precision electronic parts to complex thermal enclosures, we offer specialized electronics CNC machining services. As a professional contract manufacturer, we provide custom electronics machining strictly according to your drawings and specifications, with tolerances down to ±0.005 mm.
Our expertise delivers optimized thermal management and reliable EMI/RFI shielding for your custom housings and frames. Whether for rapid machining or high-volume production, we ensure consistent quality for diverse electronic device applications—supported by transparent processes and engineering-led DFM optimization.
Key Requirements for Electronics CNC Machining
Our facility is meticulously designed to meet the stringent precision, thermal, and shielding requirements of high-performance electronic hardware.
Micro-Precision and Thin-Wall Structures in Electronic CNC Machining
To prevent vibration and deformation in high-density electronics, our team leverages high-speed spindles and vibration-dampening fixturing. This ensures absolute stability for miniaturized designs, delivering ±0.005 mm precision and 0.2 mm thin walls for perfect mechanical housing and alignment of your sensors and connectors.
- Precision Control：We achieve tight tolerances down to ±0.005 mm through optimized machining strategies and in-process inspection, ensuring precise alignment and reliable snap-fit assembly.
- Complex Geometry Capability：Our engineers develop advanced toolpaths to produce micro-holes, deep slots, and intricate internal features required for sensors, connectors, and actuator components.
- Material Stability：By carefully controlling cutting parameters and tool engagement, we reduce internal stress and deformation when machining aluminum alloys (6061/7075) and stainless steel (316L), ensuring consistent dimensional stability in thin-wall structures.
Advanced Thermal Management Solutions
Heat dissipation is crucial for the reliability of high-power electronic devices; even slight heat buildup can lead to component failure. Leveraging over 20 years of expertise and our specialized precision manufacturing capabilities, we maximize heat dissipation performance through optimized geometry and the precision machining of high thermal conductivity materials such as oxygen-free copper and aluminum alloys, ensuring your system remains stable under peak thermal loads.
- For High-Density Heat Sinks: We mill complex fin structures to maximize surface area while maintaining structural integrity.
- For Liquid Cold Plates: We engineer internal sealed channels ensuring 100% leak-free operation in server and power systems.
- For Thermal Interfaces: We achieve Ra ≤ 0.2 μm finishes to minimize contact resistance and accelerate heat transfer.
- For Material Stability: We optimize Al/Copper cutting parameters to suppress stress and ensure accuracy across thermal cycles.
Integrated EMI/RFI Shielding CNC Solutions
To solve the critical challenge of signal interference and structural instability in miniaturized devices,we provide end-to-end CNC shielding solutions—from DFM optimization to high-precision production.Leveraging 20 years of expertise, our engineering team ensures your complex mechanical assemblies achieve the perfect balance of structural integrity and signal isolation.
Solving RF Drift: We hold tolerances at ±0.01 mm via high-speed milling. This ensures consistent geometries that eliminate high-frequency resonance, keeping your signals rock-solid.
Stopping Interface Leakage: Poor contact means signal leaks. We push finishing to Ra ≤ 0.2 μm, ensuring EMI gaskets fit seamlessly for zero-leakage performance.
Challenging Ultra-Thin Enclosures: We precision-machine walls down to 0.3 mm. This maximizes your internal assembly clearance while maintaining high-performance shielding.
Supporting EMC Compliance: Our precision machining of Aluminum, Copper, and PEEK provides the physical foundation to support ≥90 dB shielding efficiency, helping you pass certification with ease.
Professional Surface Integrity in ENC Machining
Electrical reliability depends on surface integrity. We offer specialized electronic CNC machining services to optimize conductivity and prevent component failure in high-power applications.
- For High-Conductivity Alloys (Cu/BeCu): Our engineers optimize toolpaths to suppress work hardening, maintaining >98% IACS conductivity for efficient power transmission.
- For High-Frequency Interconnects: We achieve a precision surface finish of Ra ≤ 0.4 μm, minimizing skin-effect losses and ensuring stable signal integrity at frequencies up to 40 GHz.
- For High-Voltage Busbars: We implement automated 0.2 mm edge radiusing to eliminate micro-burrs, reducing the risk of corona discharge in compact power modules by 40%.
- For Harsh Thermal Cycling: By controlling residual stress during machining, we help customers extend fatigue life by 2-3x, ensuring stability across -55°C to +125°C.
CNC machining electronic services
CNC Machining
CNC Milling
CNC Turning

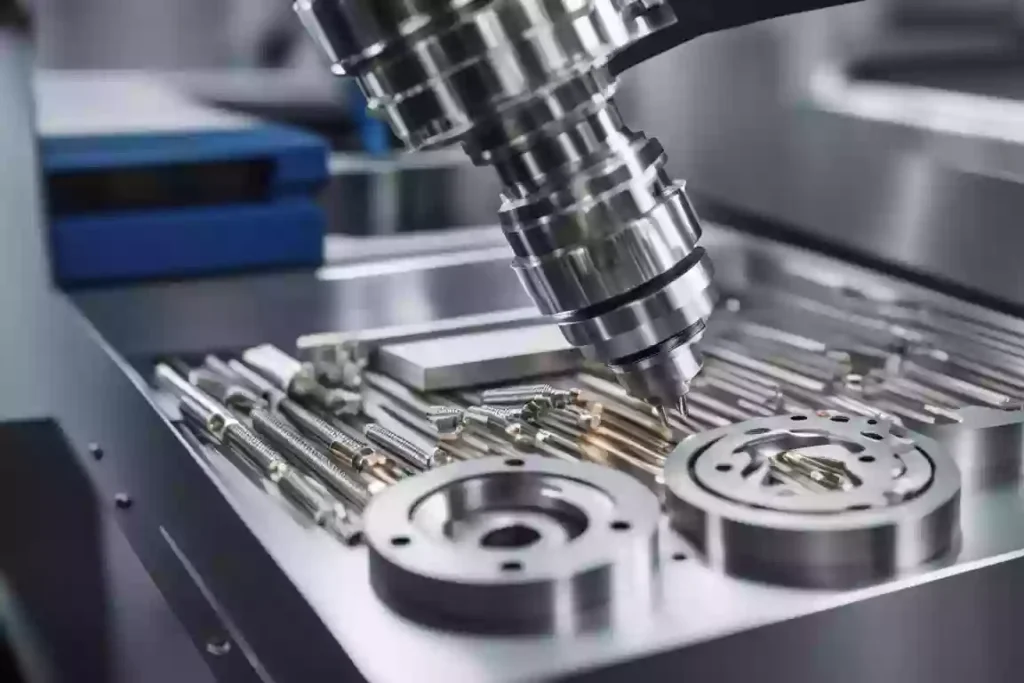

Swiss CNC Machining
CNC EDM / Wire Cutting
CNC Tapping
CNC Machining Services for the Global Electronics Industry
XTPROTO consistently benchmarks itself against the highest global standards within the electronics field. Our reliable and highly scalable CNC machining solutions serve as a bridge, connecting the exacting specifications of industrial sectors with the precision demands of consumer electronics.
Quality Assurance
1. Advanced Inspection Suite
- Hexagon CMM (3D Coordinate Measuring): Automated high-precision tactile sensing for complex GD&T, ensuring perfect alignment for multi-cavity RF enclosures.
- High-Resolution Video Measuring Systems (VMS): Non-contact optical inspection for micro-features, thin-wall structures, and fragile electronic pins.
- X-Ray Fluorescence (XRF) Analysis: Non-destructive testing to verify plating thickness (Gold, Silver, Nickel) and material composition compliance (RoHS).
- Surface Profilometry: Laser-based measurement of surface roughness ($Ra$) to ensure optimal thermal contact and friction-free interfaces.
2. Rigorous Testing Protocols
- FAI (First Article Inspection): Comprehensive verification of the first production part before the full run begins.
- In-Process Monitoring: Real-time SPC (Statistical Process Control) to maintain consistency across high-volume contract manufacturing orders.
- Hermetic & Leak Testing: Vacuum and pressure decay testing for IP67/IP68 rated outdoor electronic housings.
- Full Traceability: Every shipment includes detailed inspection reports and raw material certifications (MTR).
Factory & Production Scale
Our manufacturing headquarters spans 160,000 sq ft, staffed by a dedicated team of 120 engineers and technicians, purpose-built for the demanding cycles of the global electronics industry. The facility integrates clean-room-standard processing areas with climate-controlled precision machining zones, ensuring material stability for ultra-tight tolerance components. Equipped with a fleet of high-speed 3, 4, and 5-axis CNC machining centers, high-torque spindles optimized for Aluminum and Copper, and automated pallet systems, we deliver consistent precision for complex geometries, multi-cavity RF components, and high-density electronics assemblies.
Reliable Electronics Parts Manufacturing
Operating under a robust ISO-certified quality management system, our production infrastructure scales seamlessly from high-mix, low-volume prototypes to full-scale Tier-1 mass production, supported by localized, high-resiliency supply chains and dedicated post-processing lines. This integration of advanced manufacturing capabilities, clean production environments, and logistical reliability ensures that every component—from semiconductor test sockets to telecommunications chassis—is delivered with uncompromising precision, surface integrity, and on-time performance.
Advanced CNC Production Infrastructure
Our facility is a high-capacity production hub specifically engineered for the rapid cycles of the electronics industry. We operate an extensive fleet of high-speed 3, 4, and 5-axis CNC machining centers, capable of maintaining the dynamic precision required for complex geometry and multi-cavity RF components. By integrating automated pallet systems and high-torque spindles optimized for non-ferrous alloys like Aluminum and Copper, we ensure scalable contract manufacturing—bridging the gap from rapid 24-hour prototyping to high-volume Tier-1 production. Our clean-room-standard assembly environments and specialized deburring stations guarantee that every component, from high-density semiconductor test sockets to large-scale telecommunications chassis, is delivered with uncompromising structural integrity and absolute particulate control.
Engineering Team And DFM Optimization
Our in-house engineering team serves as a strategic extension of your R&D department, providing Design for Manufacturing (DFM) support to optimize part geometry for cost efficiency, functional performance, and manufacturability. From refining intricate cooling fin structures for optimal airflow to selecting high-purity alloys that minimize signal loss in RF enclosures, we apply technical foresight to de-risk production and enhance product reliability. Leveraging advanced CAD/CAM integration, real-time prototyping feedback, and simulation-driven design validation, we ensure every micron of your design translates into a high-yield, precision-machined component. This approach not only reduces lead times but also accelerates your time-to-market, enabling next-generation electronics to move seamlessly from concept to high-volume production while maintaining uncompromising quality and performance standards.
High-Performance Material for Electronics
Selecting the right substrate is critical for heat dissipation, electrical conductivity, and signal integrity. We maintain a robust inventory of aerospace-grade metals and high-dielectric plastics, ensuring your components meet rigorous Thermal Expansion (CTE), conductivity, and mechanical stability requirements.
| Material | Key Features | Electronics Apps |
| Aluminum Alloys (6061, 7075, 5052) | High Thermal; Fast Milling | Mobile Frames, Heat Sinks |
| Oxygen-Free Copper (C101, C110) | Superior Conductivity | Cold Plates, Busbars |
| Engineering Plastics (PEEK, PTFE) | Dielectric; Insulating | Antenna Mounts, Sockets |
| Stainless Steel (304, 316L, 17-4) | Durable; Thin-Wall | Sensor Shells, Cases |
| Specialty Alloys (Kovar, Invar, Ti) | Low CTE; High Stability | Optical & Microwave Bases |
Advanced Surface Finish For Electronics CNC Machining
In electronics CNC machining, surface finishing is an extension of mechanical performance. Our one-stop post-processing ensures your components combine extreme precision with optimal EMI/RFI shielding, low contact resistance, and superior solderability for seamless hardware integration.
Tolerances
Application | Critical Tolerance | Functional Target |
RF Enclosures | ±0.005 mm | 5G/6G Signal Resonance |
Power Heat Sinks | <0.01 mm Flatness | Maximize TDP Transfer |
Micro-Connectors | ±0.002 mm | High-Pin-Count Alignment |
Press-Fit Holes | +0.02 / 0 mm | Robotic SMT Assembly |
Sealing Grooves | ±0.01 mm Depth | EMI Shielding Continuity |
Semiconductor | Ra 0.2 μm | Prevent Voltage Arcing |
Precision Components Portfolio
- Enclosures & Housings:Precision-machined Multi-cavity RF shielding boxes and IP67/68-rated sensor housings designed for electromagnetic integrity and harsh-environment protection.
- Thermal Management:High-performance High-density finned heat sinks and FSW-welded (Friction Stir Welded) liquid cold plates for maximum heat dissipation in power-dense applications.
- Interconnects & Connectors:Ultra-precise Gold-plated micro-pins, High-current busbars, and Coaxial interfaces ensuring low contact resistance and high signal fidelity.
- Structural Hardware:Critical Precision-aligned optical frames, Internal PCB support brackets, and Chassis stiffeners that provide the backbone for complex electronic assemblies.
Cross-Industry Applications of Electronic CNC Machining
Semiconductor Equipment
Aerospace & Avionics
Automotive & EV Power
Medical Electronics
Telecommunications
Industrial & Test Equipment
Uncompromising Reliability in Every Measurement
A facility is only as capable as its commitment to the final micron. While high-speed 5-axis spindles provide the power to create, it is our obsessive metrology and ‘Zero-Defect’ culture that provides the confidence to deliver. We understand that in the electronics supply chain, trust is built on consistency. Every measurement we take and every report we generate is a testament to our role as the final guardian of your product’s reliability.
What is Electronics CNC Machining?
Electronics CNC machining uses computer-controlled tools to produce high-precision components for the electronics industry. It focuses on ultra-tight tolerances, thin-wall structures, and complex geometries required for devices like RF enclosures, heat sinks, busbars, connectors, and sensor housings.
By combining multi-axis milling, micro-drilling, and precision finishing with material expertise and DFM optimization, this process ensures signal integrity, thermal efficiency, and mechanical reliability, enabling mission-critical electronic assemblies across semiconductors, aerospace, automotive, medical, and telecom applications.
Why Partner With Us for Electronics Manufacturing?
Experience the synergy of high-speed manufacturing and electronic engineering excellence. We are more than a CNC machine shop; we are a strategic production partner dedicated to the reliability and performance of your next-generation technology. By choosing us, you gain a manufacturing foundation built on three core pillars:
FAQ
What is your typical lead time for electronic prototypes?
Can you provide RoHS and REACH compliant materials/finishing?
Do you support "High-Mix, Low-Volume" (HMLV) orders?
Ready to Bring Your Electronics Designs to Life?
Partner with a precision-focused CNC manufacturer that delivers ultra-tight tolerances, advanced thermal management, EMI/RFI shielding, and stable electrical conductivity—across semiconductors, telecom, aerospace, automotive, and medical electronics.
