Kovar Alloy CNC Machining Services

Kovar Alloy is a controlled-expansion alloy. We provide Kovar Alloy CNC machining and custom manufacturing services with high precision, fast turnaround, and competitive pricing.

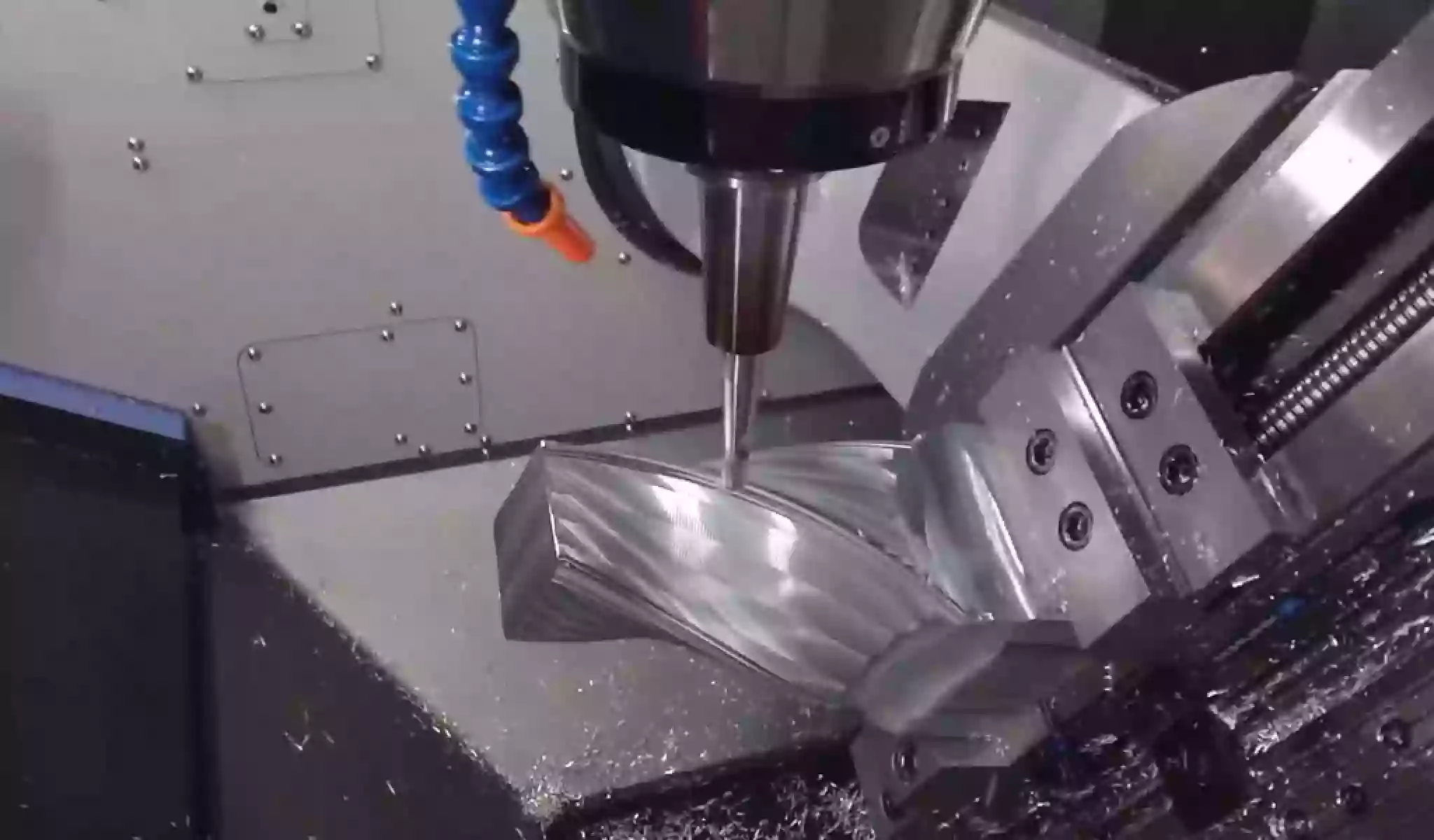

Custom Kovar Alloy CNC Machining Services

To meet the rigorous hermetic sealing requirements of the aerospace and electronics industries, we offer professional, high-precision Kovar alloy CNC machining services. As an ideal nickel-cobalt-iron controlled expansion alloy, Kovar is essential for achieving reliable glass-to-metal and ceramic-to-metal seals. Utilizing advanced CNC technology, we expertly overcome the material’s toughness to deliver components with tight tolerances and exceptional surface finishes. From prototyping to high-volume production, we provide tailor-made, high-quality precision sealing solutions with fast turnaround times and competitive pricing.

What is Kovar Alloy?

Kovar is a vacuum-melted, nickel-cobalt-iron alloy (approximately 29% Ni, 17% Co, and balance Fe) engineered for high-reliability hermetic sealing applications. Its defining characteristic is a thermal expansion coefficient that precisely matches hard glasses (such as borosilicate glass) and alumina ceramics. This unique property ensures that seals remain stable and crack-free even under extreme temperature fluctuations, making Kovar the industry standard for microelectronic packaging, power tubes, and vacuum components.

Kovar Grades & Types for CNC Machining

We source and machine a wide range of Kovar alloy grades and specialized types in-house to meet your exact application requirements:

Standard Kovar (ASTM F15)

The industry standard for hermetic sealing. It features a low coefficient of thermal expansion (CTE) perfectly matched to borosilicate glass, offering excellent weldability and precision machinability.

Modified Kovar

Formulated with an adjusted nickel-cobalt-iron composition, this grade delivers a tailored magnetic or thermal expansion response optimized for specialized glass or ceramic joining.

Oxide-Free Kovar (Vacuum Grade)

Chemically cleaned to achieve an ultra-clean, oxide-free surface. It is the premier choice for high-vacuum electronic components and cleanroom applications.

Pre-Plated Kovar (Ni/Au Plating)

Features a pre-plated nickel or gold layer over the Kovar core. This provides a ready-to-bond surface with exceptional solderability for direct wire and cable connections.

Controlled Expansion Kovar

Engineered for extreme environments, it offers an ultra-low variation in CTE to ensure exceptional dimensional stability under drastic temperature fluctuations.

Kovar Material Specifications

Chemical Composition (Wt%)

Ni: 29%
Co: 17%
Fe: Balance (~54%)
Trace Elements: Mn (≤0.5%), Si (≤0.2%), C (≤0.03%)

Mechanical & Physical Properties

Density: 8.36 g/cm³
Melting Point: 1455°C
Tensile / Yield Strength: 517–586 MPa / 275 MPa
Hardness / Elongation: 150–200 HB / 30%

Why Choose Kovar Alloy for Your Projects?

Matched CTE

Minimizes thermal stress through precise thermal expansion matching with glass and ceramics.

High Reliability

Provides excellent structural stability, strength, and magnetic performance.

Excellent Manufacturability

Supports reliable welding, sealing, and high-precision CNC machining.

XTPROTO Kovar Machining Facility

XTPROTO is an ISO-certified precision manufacturing facility equipped with advanced 4-axis and 5-axis CNC machining centers, Swiss-type lathes, and wire EDM systems. We specialize in machining Kovar Alloy, a challenging nickel-cobalt-iron material known for rapid work-hardening and heat sensitivity. To ensure stability during machining, we use rigid custom fixturing, controlled cutting parameters, sulfurized lubricants, and sharp positive-rake tooling to achieve clean cutting and minimize deformation, with each process closely monitored by experienced machinists to maintain thermal control and consistent quality throughout production. Our facility is capable of holding tight tolerances down to ±0.0005 inches (±0.01 mm), supported by full CMM inspection and complete material traceability, ensuring every Kovar Alloy component meets strict performance and bonding requirements.

ISO-Certified Quality Workflow & Full Traceability

Our facility operates under an ISO 9001:2015 certified quality management system, ensuring fully controlled and traceable production for every Kovar Alloy component. For aerospace, defense, and precision electronics, we guarantee consistent batch-to-batch quality with zero compromise.

In-Process Inspection & Controlled Manufacturing

Quality control is embedded at every stage of Kovar Alloy machining and production. We apply part-specific process sheets and setup validations during both roughing and finishing stages, allowing us to identify and eliminate risks early in the manufacturing cycle. This ensures every Kovar Alloy component is produced strictly according to specification.

Final Verification & CMM Inspection

All finished Kovar Alloy parts undergo Coordinate Measuring Machine (CMM) and optical vision inspection to verify critical dimensions such as flatness, roundness, and profile accuracy. Each shipment includes digital inspection records and testing reports to ensure full transparency and compliance.

Full Traceability & Documentation System

We maintain complete material and process traceability for every Kovar Alloy batch. Each production step is recorded, reviewed, and archived, with ISO-controlled documentation, part-specific process flow sheets, and batch tracking systems ensuring full visibility from raw material to final delivery. This guarantees consistent quality and repeatable performance across all production runs.

Scalable Production to Support Your Growth

We support rapid machining, small-batch production, and large-scale manufacturing with a fully controlled and scalable production system.

6 Excellent Reasons To Give Rapid Prototyping A Try

Rapid Machining

Fast-turnaround production for early-stage validation and urgent requirements, supported by advanced production scheduling systems that eliminate delays and track every order by batch size and delivery timeline, ensuring reliable on-time delivery from prototype stages onward.

Small-Batch Production

Cost-effective low-volume manufacturing for pilot runs or limited production needs, with fully controlled workflows and repeatable precision systems where fixtures, tooling data, and CNC programs are securely stored and standardized, ensuring consistent quality across every batch.

High volume Production sheet metal parts

Large-Scale Manufacturing

High-volume production of complex Kovar Alloy components with stable process control and scalable capacity, supported by repeatable precision at every stage—ensuring identical dimensional accuracy and consistency from prototypes to full production runs.

Our Kovar Machining Capabilities

From rapid prototyping to full-scale production, we provide complete precision machining solutions for Kovar Alloy components with certified quality assurance and advanced process control.

Swiss Machining

High-precision Swiss turning for small-diameter Kovar Alloy parts with tolerances up to ±0.0002", delivering exceptional surface finishes for critical applications.

CNC Milling

Advanced 3-axis, 4-axis, and 5-axis CNC milling enables the production of complex Kovar geometries and intricate features requiring tight repeatability.

CNC Turning

Precision CNC turning for cylindrical and complex Kovar Alloy components with excellent dimensional accuracy and smooth surface finishes for demanding applications.

CNC Machining

Comprehensive CNC machining services for custom Kovar Alloy parts, combining multi-axis milling, turning, drilling, and finishing processes to achieve tight tolerances and consistent production quality.

Laser Cutting

High-precision laser cutting with minimal heat-affected zones, ideal for intricate patterns, thin materials, and repeatable high-volume production.

High-Accuracy Drilling & Reaming

We utilize cobalt and carbide tooling with controlled feed rates and peck drilling cycles to improve chip evacuation and reduce work-hardening. Precision reaming with rigid spindle alignment and TiN/TiAlN-coated tools enables tolerances up to ±0.005 mm.

Wire EDM

Ideal for intricate geometries, sharp internal corners, and delicate thin-rib structures, Wire EDM machining eliminates mechanical cutting stress while achieving fine surface finishes of Ra 0.4–0.8 μm without micro-cracking.

Sinker EDM

Suitable for complex cavities and deep 3D features, Sinker EDM provides high-precision shaping without mechanical force, ensuring excellent dimensional stability and surface integrity in difficult-to-machine Kovar Alloy parts.

Precision Thread Tapping

Synchronized CNC tapping with Ti-coated HSS or carbide tools ensures accurate thread pitch and superior thread quality. Specialized sulfur-based and synthetic lubricants effectively reduce material adhesion in both blind and through-hole applications.

How We Overcome Kovar Machining Challenges

Machining Kovar requires more than just standard CNC equipment; it demands deep metallurgical expertise and precise process control. Here is how our engineered solutions guarantee flawless Kovar components for your projects:

Advanced Thermal Management

To combat Kovar’s poor heat dissipation, we utilize high-pressure, targeted cooling systems and optimized cutting parameters. This prevents destructive heat buildup, eliminating tool wear and maintaining strict dimensional stability throughout the production cycle.

Defeating Work-Hardening

We overcome Kovar’s notorious work-hardening tendencies by maintaining constant feed rates, stable spindle speeds, and continuous tool paths. This ensures smooth, uninterrupted cutting across the material surface without inducing microscopic cracking or stress zones.

Advanced Tooling Selection

To handle Kovar’s highly abrasive nature, we deploy ultra-sharp solid carbide and premium High-Speed Steel (HSS) tools enhanced with specialized, heat-resistant coatings. Combined with high-clamping rigid fixturing, this setup entirely eliminates vibration and premature tool wear.

Micron-Level Tolerances

For critical glass-to-metal sealing applications, we deploy multi-axis CNC machining centers managed by expert technicians. Our rigid physical setups and real-time monitoring guarantee that strict tolerances are met flawlessly on every batch.

Precision Heat Treatment

We utilize precise pre-machining annealing to effectively reduce the 4J29 Kovar alloy's structural hardness while dramatically improving its plasticity. This process relieves raw material internal stress, creating the perfect metallurgical foundation for intricate machining.

Comprehensive Post-Processing

We offer in-house stress-relief heat treatment and specialized chemical cleaning (Oxide-Free processing) post-machining. This fully restores the alloy’s optimal thermal expansion properties, ensuring the finished parts are ready for immediate hermetic bonding.

Engineering Support for Kovar

At XTPROTO, we provide more than precision Kovar Alloy parts—we act as your engineering partner throughout the entire development process. Our team supports you from R&D, design optimization, and prototyping through to scalable CNC machining, forming, and supply chain coordination. Because Kovar Alloy requires careful design and processing control, we deliver early-stage Design for Manufacturability (DFM) analysis to improve part performance, reduce risk, and optimize production cost, while also supporting complex post-processing requirements including photochemical etching, glass/ceramic bonding, plating, and deburring, ensuring seamless integration between design intent and final manufacturing results. From concept to production, the XTPROTO engineering team helps solve technical challenges, improve manufacturability, and ensure reliable performance for demanding Kovar Alloy applications.

Kovar Alloy CNC Machining Design Tips

To maximize the performance and machinability of Kovar Alloy, consider the following design and machining recommendations:

Match Thermal Expansion

Kovar Alloy is commonly used in glass-to-metal and ceramic sealing applications, so its thermal expansion should be carefully matched with adjacent materials to reduce stress and maintain dimensional stability during temperature changes.

Optimize Machining Parameters

Lower cutting speeds combined with stable feed rates help reduce work-hardening, improve surface quality, and maintain machining precision. Proper machining parameters are critical for preventing heat buildup and material deformation.

Use Sharp Carbide Tooling

Sharp carbide or coated tools with positive rake angles are recommended to reduce friction, minimize material adhesion, and achieve cleaner cutting performance when machining Kovar Alloy.

Control Heat & Internal Stress

Because Kovar Alloy is sensitive to excessive heat, rigid fixturing, controlled coolant strategies, and stress-relief annealing are often used to improve dimensional stability and maintain part accuracy throughout machining.

Surface Finishing for Kovar Machining

Raw Kovar can be bead-blasted or tumbled, but most high-reliability applications require precise surface treatments. XTPROTO delivers clean, burr-free, and oxidation-free components straight off the machine, holding strict Ra roughness standards for immediate bonding.

To maximize corrosion resistance and solderability, we offer industry-standard, MIL-compliant plating options:

Gold over Nickel (50 µin Au over 50 µin Ni)

Compliant with MIL-G-45204 and MIL-C-26074. The default standard for hermetic electronic packaging and RF devices.

Electrolytic Nickel (100–300 μin)

Compliant with MIL-QQ-N-290 (Matte). Optimized for low-cost packaging and anti-corrosion mechanical parts.

Silver Plating (100 μin)

Tailored for downstream silver-brazing to ceramic or copper assemblies.

Electroless Nickel

Ensures flawless, uniform thickness over highly complex or intricate geometries.

Passivation & Chemical Etching

Eliminates surface impurities to guarantee optimal oxide-free bonding performance.

Kovar Alloy CNC Machining Specifications

Tolerance:±0.05 mm
Maximum Part Size:600 mm × 500 mm × 400 mm
Machining Processes:CNC Milling, CNC Turning, Grinding, Drilling
Surface Finish:Ra 0.2 – 0.8 μm
Standard Lead Time:Based on project complexity and order quantity

Kovar Alloy Precision Machined Components

1. Hermetic Sensor Housings & Enclosures

Engineered for aerospace and medical electronics protection, these housings require ultra-precise CNC machining to ensure perfect glass-to-metal sealing, vacuum integrity, and resistance to thermal shock and pressure variation.

2. RF & Microwave Shield Covers

Designed for high-frequency telecom and radar systems, these components utilize Kovar Alloy’s magnetic shielding properties to reduce signal distortion and maintain strict flatness for stable microwave performance.

3. Laser Diode Headers & LED Bases

Critical optoelectronic interfaces requiring excellent thermal control and CTE matching. Precision machining ensures burr-free surfaces for stable heat dissipation and reliable optical alignment.

4. Precision Vacuum Flange Rings

Used in scientific instruments, cryogenic systems, and vacuum chambers. Multi-axis CNC turning ensures ultra-tight tolerances to eliminate micro-leaks and maintain stable vacuum performance.

5. IC Lead Frames & Micro-Sleeves

Miniature, high-density components for semiconductor and medical applications. Advanced micro-machining ensures tight dimensional control and controlled surface roughness for reliable bonding and long-term stability.

6. Optical Fiber Connector Joints

Precision-turned connectors that ensure stable optical transmission by matching thermal expansion between metal and glass, preventing seal failure and signal loss in high-speed communication systems.

Your Trusted Partner for Kovar CNC Machining

XTPROTO provides high-precision Kovar Alloy CNC machining services for industries requiring strict thermal stability, hermetic sealing performance, and tight dimensional control. With advanced multi-axis CNC equipment, experienced engineers, and ISO-certified quality systems, we support everything from prototyping to high-volume production with reliable quality, fast turnaround, and consistent precision.

Why Choose XTPROTO for Kovar Alloy CNC Machining?

Extensive Kovar Alloy Expertise

We specialize in machining difficult nickel-cobalt-iron alloys, ensuring stable thermal performance and reliable dimensional accuracy for demanding applications.

Ultra-Tight Tolerances

Equipped with advanced Swiss turning and multi-axis CNC systems, we achieve precision tolerances up to ±0.0002 inches (±0.005 mm).

Certified Quality Control

Our ISO 9001 and AS9100-compliant workflows include full traceability, in-process inspection, and strict quality verification throughout production.

Excellent Surface Integrity

Through precision milling, turning, grinding, and EDM, we deliver clean, burr-free surfaces with surface finishes as fine as Ra 0.4–1.6 μm.

Flexible Production Capacity

From rapid prototyping to high-volume manufacturing, we provide scalable Kovar Alloy machining solutions tailored to your project requirements.

Secure Supply Chain & Global Delivery

We protect customer intellectual property through strict NDA management while ensuring reliable worldwide delivery through efficient production and logistics systems.

Applications of Kovar Parts

Aerospace

Designed for extreme thermal cycling, pressure variation, and harsh aerospace environments. Used for satellite sensor housings, navigation brackets, hermetic sealing flanges, and thermal shielding components requiring long-term reliability.

Defense

Manufactured to strict military standards with precise thermal and mechanical tolerances. Common applications include missile guidance enclosures, radar shielding covers, optics bases, and rugged military connectors.

Medical Devices

Kovar Alloy offers excellent biocompatibility and hermetic sealing performance for sensitive medical electronics. Widely used in pacemaker housings, neurostimulator shells, and precision diagnostic components.

Electronics & Semiconductors

Ideal for glass-to-metal and ceramic-to-metal sealing applications requiring stable thermal expansion and vacuum integrity. Commonly used in IC packaging, laser diode headers, power tube interfaces, and LED bases.

Telecommunications & RF

Stable thermal and magnetic properties help reduce signal distortion in high-frequency systems. Applications include RF housings, waveguide components, fiber optic connectors, and oscillator enclosures.

Scientific Instruments

Provides dimensional stability and reliable sealing performance in vacuum and cryogenic environments. Used for vacuum flanges, spectrometer housings, feedthrough isolators, and electron microscope components.

Kovar CNC Machining FAQ

Can XTPROTO supply and machine Kovar material with certified quality and full traceability?

Yes. We supply and machine Kovar Alloy with full material traceability, sourced in compliance with ASTM F15, UNS K94610, and 4J29 standards. Each order is provided with Mill Test Certificates (MTC), chemical composition reports, and heat-treatment documentation, ensuring consistent quality control and compliance with international industrial requirements for aerospace, electronics, and precision engineering applications.

How do you handle pre-oxidation for glass-to-metal sealing (GTMS) applications?

We offer both oxide-free surface preparation for vacuum applications and controlled pre-oxidation heat treatment for GTMS bonding. By carefully controlling furnace temperature and atmosphere conditions, we produce a uniform oxide layer suitable for stable glass-to-metal sealing performance.

How do you prevent warping in thin-walled Kovar components?

We use multi-stage stress control processes, including intermediate stress-relief annealing between roughing and finishing operations. This helps reduce internal stress and ensures dimensional stability for thin-walled and complex geometries.

What do you do to ensure good performance for welding or brazing applications?

We maintain strict control over machining fluids and surface cleanliness, avoiding contamination that could affect weld quality. After machining, parts undergo ultrasonic cleaning to ensure a clean surface suitable for laser welding and brazing processes.

Can you achieve the surface finish required for plating and wire bonding?

Yes. Using precision CNC machining and Swiss turning, we achieve surface finishes of Ra 0.4–0.8 μm. This provides a stable base for electroplating, gold deposition, and micro wire bonding applications without additional heavy polishing.
