Titanium CNC Machining Services
Leveraging advanced 5-axis machining and high-pressure cooling, we excel in machining diverse titanium alloys including medical-grade materials. From vacuum stress relieving to ultrasonic cleaning, we deliver superior dimensional stability and surface consistency for the most stringent aerospace and medical titanium parts.
Titanium CNC Machining Service
Renowned for their lightweight nature and exceptional strength—boasting a superior strength-to-weight ratio (40% lighter than steel yet comparable in strength)—titanium and its alloys represent an ideal choice for the CNC machining of precision components. We offer comprehensive, one-stop CNC machining services for titanium alloys. Leveraging our extensive expertise in tool life management and cutting heat control, we integrate 5-axis simultaneous machining, stress-relieving heat treatments, and ultrasonic cleaning processes to ensure the delivery of high-precision titanium components. Whether for rapid machining or small-to-large batch production, we are dedicated to providing customized solutions of exceptional performance to clients across the aerospace, medical, and high-end industrial sectors.
Industry-Leading Titanium CNC Machining with Precision and Efficiency
While titanium alloys exhibit excellent properties, their inherent low thermal conductivity and high chemical reactivity present significant challenges, often generating localized high temperatures exceeding 1000°C, leading to severe work hardening and structural deformation. We overcome these challenges through proprietary, highly efficient cooling strategies and rigorous tool management, thereby controlling precision tolerances to within ±0.005mm. By optimizing every cutting path and parameter, we ensure that each component possesses exceptional fatigue strength and perfect surface integrity while reducing production cycles by 30%. We are able to perfectly combine extremely high technical precision with high manufacturing efficiency, thus providing titanium alloy solutions with superior quality, stable cost structure, and reliable delivery times.
Titanium CNC Machining Materials
With extensive technical expertise, we offer high-precision CNC machining for a wide range of titanium materials. From Commercially Pure (CP) Titanium (Grades 1-11), known for its biocompatibility and corrosion resistance in medical and chemical applications, to High-Performance Alloys (Grades 5, 23, 9, 12, and high-temp grades) designed for exceptional strength-to-weight ratios. We deliver custom components for demanding industries, including orthopedic implants, chemical pressure vessels, jet engine parts, and aerospace structures.
Commercially Pure (CP) Titanium
CP Titanium grades offer the highest corrosion resistance and excellent biocompatibility, making them the standard for chemical and medical applications.
Grade | Material Characteristics | Key Applications |
Grade 1 / CP4 | Most ductile and softest CP grade. Excellent cold formability and impact toughness. | Medical, Marine, Architecture, Desalination |
Grade 2 / CP3 | The “Workhorse” of CP Titanium. Best balance of strength, weldability, and corrosion resistance. | Chemical Processing, Pressure Vessels, Medical Implants |
Grade 3 / CP2 | Higher mechanical strength than Grades 1 & 2 while maintaining good ductility. | Aerospace Structures, Power Generation, Hydrocarbon Processing |
Grade 4 / CP1 | The strongest CP grade. Exceptional corrosion resistance in highly aggressive environments. | Aerospace Components, Surgical Instruments, Industrial Parts |
Grade 7 / 11 | Enhanced with Palladium (Pd) for superior resistance to reducing acids and crevice corrosion. | Chemical Manufacturing, Chlorate Production, Desalination |
High-Performance Titanium Alloys
Alloy Grade | Technical Highlights | Typical Uses |
Grade 5 (Ti-6Al-4V) | The Global Standard. High strength-to-weight ratio, heat treatable, and excellent corrosion resistance. | Jet Engines, Airframes, High-End Sports Gear |
Grade 23 (6Al-4V ELI) | Extra Low Interstitials. Improved fracture toughness and fatigue strength for critical safety apps. | Orthopedic Implants, Dental Fixations, Aerospace Fasteners |
Grade 9 (3Al-2.5V) | Strength between CP and Grade 5. Excellent cold formability and weldability. | Hydraulic Tubing, Bicycle Frames, Golf Club Shafts |
Grade 12 (Ti-0.3Mo-0.8Ni) | Outstanding resistance to oxidizing and mildly reducing environments at elevated temperatures. | Heat Exchangers, Marine Components, Power Plants |
6-2-4-2 / 6-2-4-6 | High-strength, heat-treated alloys with superior creep resistance up to 500°C. | Turbine Disks, Rocket Engine Cases, Compressor Parts |
8-1-1 (8Al-1Mo-1V) | Highest modulus and best creep resistance among alpha-beta alloys. | Jet Engine Parts, High-Temp Airframe Components |
Titanium CNC Machining Capabilities
With over 20 years of experience in machining mission-critical titanium components, we possess the technical expertise and specialized knowledge required to produce high-quality precision parts. As a full-service precision CNC machining contract manufacturer, we excel at managing the challenges of titanium’s high toughness and low thermal conductivity, delivering a wide array of complex parts such as airframe structures, bulkheads, and manifolds.
Precision 5-Axis Machining
Expert Process Control
Comprehensive One-Stop Post-Processing
Full-Cycle Production Response
Precision 5-Axis Machining

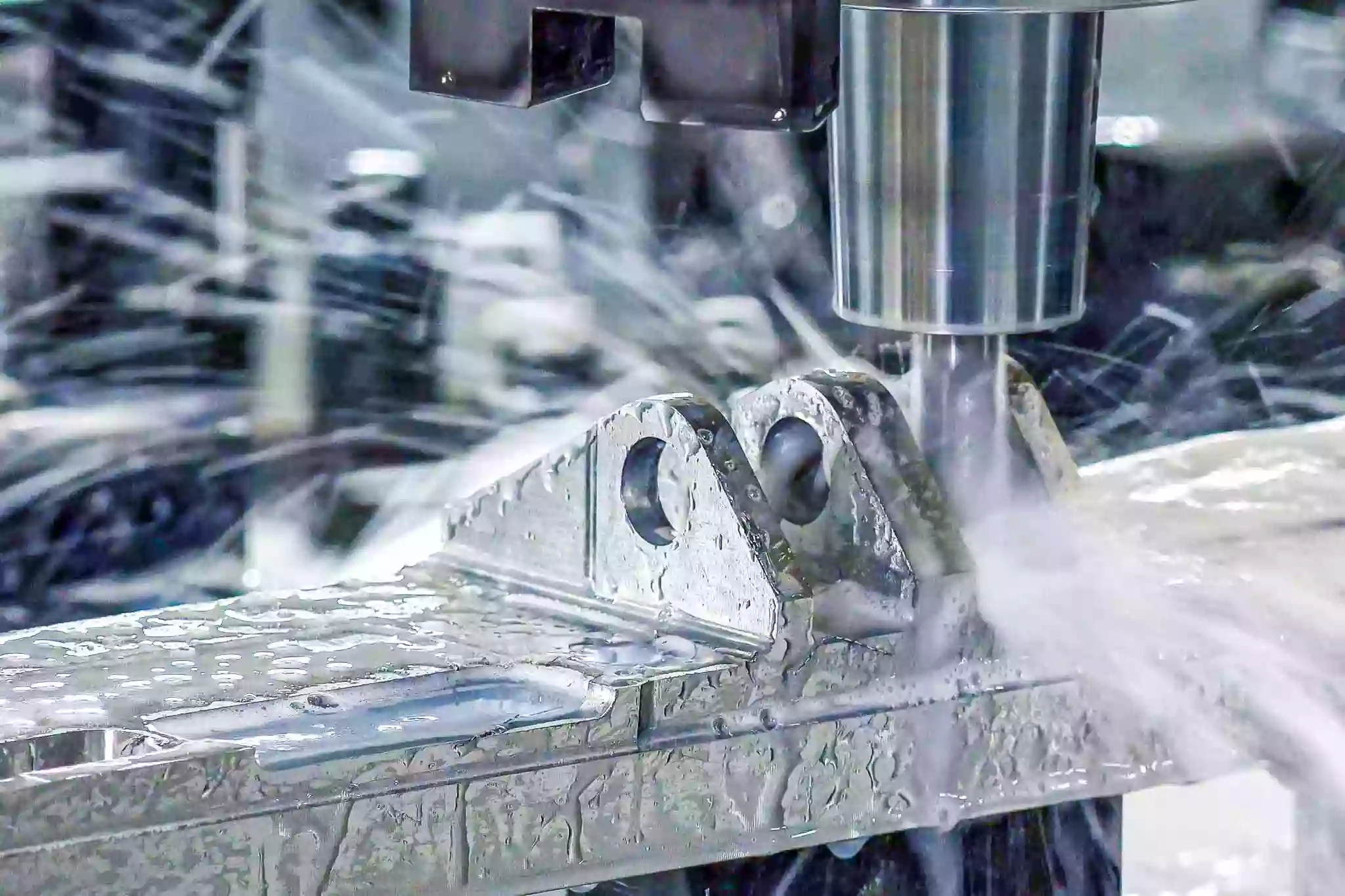

To master the extreme toughness and thermal sensitivity of titanium, we leverage advanced Simultaneous 5-Axis CNC technology to transform complex CAD designs into high-performance components with uncompromising precision.
Titanium parts with complex geometries often suffer from precision loss during manual re-fixturing. We utilize Simultaneous 5-Axis CNC Centers to machine multiple faces in a single setup ("One-Done"), allowing you to achieve uncompromising tolerances as tight as 0.005mm.
Titanium’s low thermal conductivity can lead to rapid tool wear and material hardening. Our 5-axis linkage maintains the optimal tool attack angle and constant engagement, which prevents friction heat and ensures a superior surface finish (Ra 0.4 μm) for your critical components.
Deep cavities and undercut contours are nearly impossible to reach with standard 3-axis machines without causing chatter. By employing 5-axis tool tilting, we use shorter, more rigid cutters to reach inaccessible areas, providing you with vibration-free machining for thin-walled and intricate designs.
Machining expensive titanium requires extreme stability to avoid scrapping parts. Our high-precision multi-axis control ensures stable, repeatable production, helping you minimize material waste and significantly shorten project lead times.
Expert Process Control
Titanium is prone to rapid heat build-up and work hardening during processing, which can lead to decreased machining accuracy and material damage, affecting the quality of the final product. Our factory has implemented a rigorous expert process control system, combined with advanced cooling technology, to ensure stable temperature control of the titanium during processing, avoiding excessive heat build-up and hardening, and ensuring that the final delivered titanium alloy parts meet stringent quality standards.
Titanium exhibits poor thermal conductivity, making it highly prone to inducing tool failure and part deformation. We employ high-pressure through-spindle coolant technology, complemented by optimized chip evacuation strategies, to efficiently dissipate heat—thereby ensuring the dimensional stability of delivered parts and guaranteeing that their internal material structure remains free of residual stress.
The abrasive nature of titanium rapidly causes wear on cutting edges, subsequently compromising workpiece surface quality. By monitoring tool wear in real-time and implementing precise tool presetting, our team proactively manages tool life; this ensures that every component—from the very first to the very last—maintains a consistent surface finish.
During the milling of deep cavities or thin-walled structures, high-strength titanium alloys often tend to induce harmonic vibrations. Our engineers calculate optimal spindle speeds and feed rates based on the material's specific harmonic characteristics, thereby completely eliminating chatter at its source. This ensures exceptional surface integrity and significantly mitigates the risk of costly rework resulting from scrapped parts.
Comprehensive One-Stop Post-Processing
To eliminate internal processing stresses and micro-contaminants that could affect the lifespan of parts, we offer a complete suite of in-house post-processing services to ensure your titanium alloy components are fully capable of performing their tasks upon delivery.
Intense cutting forces during titanium machining often leave residual internal stresses that cause late-stage warping. We implement vacuum stress-relieving cycles to stabilize the material’s crystalline structure, providing you with perfect dimensional stability over the part’s entire lifecycle.
Titanium alloys have a high affinity for oxygen, and high-pressure coolant is used during CNC machining of titanium, often leaving stubborn dirt residue in deep cavities and precision threads. We employ an automated, multi-stage ultrasonic cleaning system that thoroughly removes 100% of contaminants, ensuring your titanium components meet the stringent cleanliness standards required for aerospace and medical equipment assembly.
Coordinating with multiple suppliers for grinding, honing, or special coating treatments not only extends delivery times but also increases logistical management risks. Our centralized, one-stop workflow covers the entire process from raw material procurement to final certification and assembly, significantly shortening the time to market for titanium products.
Full-Cycle Production Response
We offer a seamless production transition from rapid machining to mass production, ensuring your titanium projects are completed on time and within budget.
Validating complex titanium alloy designs typically requires lengthy lead times for specialized materials and molds. With our dedicated prototyping unit and readily available titanium alloy inventory, we can deliver fully functional, high-precision titanium product prototypes in as little as one day, helping you shorten development cycles and accelerate time-to-market.
The transition from single-piece production to mass production often brings consistency issues and soaring costs. Our standardized process architecture and automated five-axis machining centers enable us to scale production while maintaining the same quality standards, providing you with predictable costs and complete parts interchangeability.
Fluctuations in titanium supply can lead to production disruptions. We maintain long-term partnerships with certified aerospace-grade titanium steel mills (such as BaoTi Group (Baoji Titanium Industry)) and implement strategic inventory buffers to mitigate material risks and ensure a stable, uninterrupted supply to your production lines.
Design changes to high-toughness alloys during production are typically costly and difficult to implement. Our field engineering team provides proactive DFM feedback at every stage to help you optimize material utilization and reduce total unit costs throughout the project.
XTPROTO: A Legacy of Excellence in Titanium CNC Machining
With over 20 years of specialized expertise in Titanium CNC machining, XTPROTO is a premier provider of precision medical devices, high-performance implants, and mission-critical components for the aerospace and defense industries. Our manufacturing floor is anchored by world-class technology, including the DMG MORI NVX 5100 and Makino a51nx, operated by a dedicated team of over 120 expert machinists. This powerful synergy of cutting-edge hardware and human expertise ensures that every project meets the most exacting standards of quality and ultra-high precision. Our commitment to excellence is deeply embedded in a rigorous quality control framework; from the initial design phase to final inspection, every stage of production is meticulously monitored and continuously optimized to guarantee the delivery of components with unparalleled structural integrity.
Advanced Manufacturing Solutions & Integrated Supply Chain
XTPROTO delivers high-quality CNC machining solutions compatible with a vast range of exotic materials, specifically tailored to satisfy the complex requirements of the aerospace, medical, and defense sectors. We utilize the world-leading HyperMILL CAM system to implement advanced toolpath strategies, achieving high-speed, high-efficiency material removal that significantly optimizes machining cycles. This approach allows us to produce superior titanium components with maximum efficiency and cost-effectiveness. Beyond our robust in-house manufacturing capabilities, we leverage a comprehensive local supply chain to provide integrated secondary services, including specialized surface treatments and Non-Destructive Testing (NDT). Every project is overseen by a dedicated project manager who ensures strict adherence to our global quality standards, providing a seamless transition from raw material to final high-performance delivery.
Titanium Machining Engineering Team
To mitigate the risks of cost overruns and manufacturability hurdles often encountered during the transition of titanium components from R&D to mass production, we leverage a specialized team of over 120 senior machinists and application engineers to provide in-depth Design for Manufacturing (DFM) analysis and process optimization. Drawing on over two decades of technical heritage, our experts offer critical insights into material utilization, advanced toolpath strategies, and thermal stress prediction for even the most intricate CAD designs. This high-level technical support not only minimizes the waste of expensive titanium alloys but also transforms complex engineering challenges into predictable, repeatable, high-precision outcomes, ensuring your titanium projects move seamlessly from concept to final delivery in the shortest time possible.
Our commitment to quality
To eliminate inherent risks in complex titanium processing—such as micro-cracking, thermal distortion, and dimensional instability.XTPROTO has established a comprehensive quality management system that spans from raw material intake to final delivery. Our facility is equipped with advanced metrology instruments, including 6-axis CMMs, optical comparators, and digital 3D scanners, ensuring that every critical tolerance is validated with absolute precision. Through real-time process monitoring and exhaustive documentation, including FAI (First Article Inspection) and CPK analysis, we guarantee not only dimensional accuracy but also the consistent mechanical integrity of your high-performance components. Our in-house testing laboratory conducts rigorous dimensional, geometric, and hardness evaluations to ensure every part fulfills the most stringent customer and industry specifications. Whether serving the aerospace, medical, defense, or automotive sectors, we strictly adhere to ISO 9001:2015, AS9100D, and Nadcap standards. This steadfast commitment to quality has earned XTPROTO widespread industry acclaim and established us as a trusted partner for your most critical engineering projects.
Machining Tolerances of Titanium Profiles
Machining Category | Linear Tolerance | Typical Applications & Technical Requirements |
Standard | ±0.002″ ∼ ±0.010″ | General industrial parts, brackets; Conventional CNC milling/turning |
Precision | ±0.001″ ∼ ±0.002″ | Aircraft engine parts, surgical tools; 5-axis machining, thermal compensation |
Ultra-Precision | ±0.0005″ ∼ ±0.001″ | Implants, flight control components; Wire EDM, precision grinding, online inspection |
Surface Finishing Options for Titanium
Surface treatments play a pivotal role in enhancing the durability, aesthetics, and performance of custom titanium alloy parts. We offer a comprehensive range of tailored surface finishing solutions designed to meet your unique requirements, ensuring that your components possess both exceptional functionality and visual appeal. These solutions encompass a variety of processes, including polishing, anodizing, passivation, powder coating, and sandblasting. Each process offers distinct advantages, enabling you to select the ideal solution that best aligns with your specific needs.
Why Choose XTPROTO for Your Precision Titanium Machining?
Your Trusted Partner for Titanium CNC Machining
Are you seeking high-standard titanium CNC machining services? XTPROTO is at your service. Our expert team possesses exceptional technical proficiency and extensive experience in delivering top-tier, high-precision titanium machining services. Whether your project involves rigorous tolerance requirements or complex geometric structures, we leverage our deep expertise to ensure a flawless outcome.
What is Titanium?
Titanium is a premier material for CNC machining, highly valued for its exceptional strength-to-weight ratio, superior corrosion resistance, and biocompatibility. While its high strength, low thermal conductivity, and tendency to work harden present unique machining challenges, this non-toxic metal provides the strength of steel at a fraction of the weight and excels in resisting saltwater and extreme environmental exposure. XTPROTO leverages specialized expertise to overcome these obstacles, offering diverse end-use finishing options to ensure every precision component meets the highest functional and aesthetic standards.
Pros of Titanium CNC Machining
Machining titanium alloys offers numerous advantages, making them a popular choice for industries requiring robust and reliable components. However, the process also presents specific challenges that must be addressed during manufacturing.
Titanium alloys possess exceptional strength while being significantly lighter than steel.
They exhibit outstanding resistance to corrosion, making them an ideal choice for harsh environments.
Titanium features excellent biocompatibility and non-toxic properties, making it an ideal material for applications within the medical industry.
Titanium boasts exceptional durability, making it highly suitable for manufacturing CNC-machined parts capable of withstanding harsh or extreme operating conditions.
It maintains stability amidst temperature fluctuations.
Titanium is non-magnetic and possesses excellent oxidation resistance, contributing to its strong resistance to corrosion.
Titanium CNC Machining Applications
Titanium CNC machined parts are widely used across various industries due to their superior strength, light weight, and excellent corrosion resistance. CNC machining ensures the precision and complexity of titanium components, which is crucial for meeting the stringent tolerance requirements in critical applications.
Aerospace
Medical
Automotive
Marine
Energy & Power Generation
Oil & Gas
FAQs：Titanium CNC Machining
What is Titanium CNC Machining?
What grades and tolerances do you offer?
Do you machine aluminum or plastic parts?
How to get a quote and what is the turnaround?
Request Your Quote for Titanium CNC Machining
Precision projects demand a partner with technical mastery. XTPROTO provides tailored titanium solutions, guiding you from material selection to CNC milling and turning optimization.With a dedicated point of contact and full transparency from design review to final inspection, we ensure your project’s success. If you need a Titanium machine shop that excels in complex challenges, upload your CAD files today.
