Tool Steel CNC Machining Services
Get precision-machined, dimensionally stable tool steel parts with fully managed heat treatment to deliver maximum toughness, wear resistance, and flawless assembly.
Your One-Stop Custom Tool Steel Machining Partner
We provide a fully controlled tool steel manufacturing system that integrates CNC machining, vacuum heat treatment, and precision finishing under one coordinated workflow.Instead of fragmented outsourcing, every stage is managed within a unified production system to ensure stable communication, consistent quality, and predictable lead times.
Our End-to-End Tool Steel Manufacturing Solution
We provide a fully integrated tool steel manufacturing solution that covers every critical stage of production—from material selection and precision CNC machining to heat treatment coordination and final inspection.Instead of working with multiple fragmented suppliers, our in-house and closely controlled process ensures consistent communication, stable quality, and shorter lead times.Each step is managed with precision and traceability, so your tooling components maintain accuracy and performance from prototype to mass production.
Tool Steel Machining Challenges We Solve
Machining tool steel requires more than just standard cutting; it demands deep metallurgical knowledge and adaptive manufacturing strategies. At XTPROTO, we have engineered our workflow to seamlessly resolve the core difficulties inherent in tool steel fabrication.
The high-temperature quenching required to harden tool steels often induces warping, shrinkage, or micro-cracking, which can easily ruin tight tolerances. To counteract this, we utilize predictive dimensioning during the annealed machining phase, leaving a precise amount of grinding stock. Once the parts return from vacuum heat treatment, we perform corrective surface grinding and wire EDM to shave off any micro-deformations, ensuring the final component aligns perfectly with your blueprint.
Once tool steel reaches its target hardness of 60+ HRC, standard milling cutters can no longer machine intricate details like deep slots, sharp internal corners, or complex cavities without breaking. We bypass this limitation by integrating Sinker EDM and Wire EDM into our finishing process. Because EDM relies on controlled electrical spark erosion rather than physical cutting forces, we can easily carve highly detailed features into fully hardened steel without introducing structural or thermal stress.
A major bottleneck in tool steel manufacturing is fragmented outsourcing—most machine shops cut the soft metal, ship it to a heat treater, and then forward it to a third specialist for grinding, adding weeks to your timeline. XTPROTO offers a fully integrated, one-stop workflow. We manage every single phase under one roof, from initial CNC milling and synchronized vacuum hardening to final precision grinding, reducing traditional production lead times by up to 30%.
The massive volume of hard alloy carbides in grades like D2 and M2 causes rapid tool wear, which typically results in torn surfaces, burrs, and poor roughness. We solve this by pairing ultra-rigid CNC setups with custom-coated carbide and ceramic tooling engineered specifically for hardened materials. By meticulously optimizing our cutting speeds, feed rates, and high-pressure coolant delivery, we consistently deliver smooth surface finishes down to Ra 0.4 μm, or even Ra 0.1 μm after post-grinding.
What is Tool Steel Machining?
Tool steel machining is the specialized process of shaping ultra-hard carbon and alloy steels engineered for exceptional wear resistance, toughness, and thermal stability. Because tool steel is difficult to cut, components are typically CNC machined in the annealed state, then heat treated to achieve final hardness, followed by precision grinding or Wire EDM to ensure dimensional accuracy. At XTPROTO, we combine rigid CNC machining centers, high-performance carbide tooling, and advanced cooling strategies to produce high-precision tooling and mold components with outstanding strength, stability, and reliability.
We serve different types of tool steel
We machine a wide range of cold-work, hot-work, high-speed, and shock-resistant tool steels for molds, dies, industrial tooling, and precision wear components. Each grade is selected based on hardness, toughness, thermal stability, wear resistance, and machining performance.
D2 Tool Steel
Cold-work steel with high wear resistance and compressive strength. Ideal for blanking dies, shear blades, and forming tools.
A2 Tool Steel
Air-hardening tool steel with balanced toughness, dimensional stability, and wear resistance. Commonly used for punches, gauges, and forming dies.
O1 Tool Steel
Oil-hardening steel with excellent machinability and reliable hardness for general-purpose tooling applications.
A3 Tool Steel
High-carbon cold-work steel offering improved wear resistance over A2 while maintaining good toughness.
2083 Tool Steel
Advanced cold-work steel with high toughness and fatigue resistance for demanding stamping and forming operations.
M2 Tool Steel
General-purpose high-speed steel with strong wear resistance and cutting-edge retention for industrial cutting tools.
M42 Tool Steel
Cobalt high-speed steel with superior red hardness for machining hardened alloys and difficult materials.
P20 Tool Steel
Pre-hardened mold steel with excellent machinability and polishability for injection mold manufacturing.
DC53 Tool Steel
Corrosion-resistant stainless mold steel with outstanding mirror-polish capability for optical and medical molds.
H13 Tool Steel
Industry-standard hot-work steel with excellent thermal fatigue resistance for molds, die casting, and extrusion tooling.
H11 Tool Steel
Tough hot-work steel designed for repeated thermal cycling and high-temperature structural applications.
S7 Tool Steel
High-impact tool steel engineered to resist cracking and shock loading in heavy-duty tooling applications.
Tool Steel Performance Specifications
- Tool Steel D2
58–62 HRC | 7.7 g/cm³ | ~1,850 MPa
High wear resistance, ideal for long-life cutting and abrasive tooling. - Tool Steel A2
57–62 HRC | 7.8 g/cm³ | ~1,650 MPa
Balanced toughness and wear resistance for general tooling applications. - Tool Steel O1
57–62 HRC | 7.8 g/cm³ | ~1,400 MPa
Oil-hardening steel for low to medium-load tooling. - Tool Steel A3
57–62 HRC | 7.8 g/cm³ | ~1,650 MPa
Suitable for standard die and general tooling applications. - Tool Steel P20
28–32 HRC | 7.8 g/cm³ | ~950 MPa
Pre-hardened steel for mold bases and fast machining. - Tool Steel 1.2083
48–52 HRC | 7.7 g/cm³ | ~1,500 MPa
Corrosion-resistant mold steel for plastic tooling applications.
- Tool Steel DC53
60–64 HRC | 7.8 g/cm³ | ~2,000 MPa
Enhanced toughness and wear resistance for precision tooling. - Tool Steel H13
48–54 HRC | 7.8 g/cm³ | ~1,350 MPa
High-temperature resistance for die casting and hot work tools. - Tool Steel H11
48–54 HRC | 7.8 g/cm³ | ~1,300 MPa
Hot work steel for thermal fatigue resistance applications. - Tool Steel S7
54–58 HRC | 7.7 g/cm³ | ~1,550 MPa
High impact resistance for shock-loaded tooling. - Tool Steel M2
60–65 HRC | 8.1 g/cm³ | ~2,200 MPa
High-speed steel for high-temperature cutting tools. - Tool Steel M42
65–68 HRC | 8.1 g/cm³ | ~2,400 MPa
Ultra high-speed steel for extreme machining conditions.
Advantages and Applications of Different Types of Tool Steel
- Wear Resistance:D2 / DC53 / A2 / A3 – Best for long-life cutting, stamping, and high-abrasion tooling.
- Impact Resistance:S7 / H11 – Engineered for heavy shock loads, jackhammers, and high-vibration parts.
- Heat Resistance:H13 / M42 / M2 – Ideal for high-temperature molds, die casting, and high-speed cutting.
- Easy Machining:O1 / P20 / 1.2083 – Optimized for fast fabrication, lower tooling costs, and mold bases.
For material selection support or custom requirements, contact our engineering team.
Why Choose XTPROTO for tool steel CNC machining？
- Achievable precision down to ±0.002 mm for critical tool steel components
- Full in-house capability covering CNC machining, EDM, and precision grinding
- Production planning optimized for short lead times and stable delivery schedules
- ISO 9001-based quality control with multi-stage inspection and verification
- Engineering-driven approach for complex tool steel geometries and manufacturability
- Technical support covering material selection, machining strategy, and process planning
Factory & Equipment
XTPROTO operates a massive 160,000 sq ft manufacturing facility optimized specifically for demanding tool steel production. Our workshop features heavy-duty, high-mass machine setups with active spindle cooling and rigid workholding to easily absorb the extreme cutting forces required for hardened tool steels. By housing all heavy-metal processing, precise heat treating, and final high-hardness finishing under one roof, we eliminate multi-vendor logistics to ensure complete control over your project’s quality and delivery speed.
Engineering & Technical Support
At XTPROTO, we support customers from design to production with practical engineering input for tool steel machining.We provide DFM feedback to optimize part geometry and recommend suitable tool steel grades for manufacturability. Our CAM programming is tailored for hardened materials, using optimized toolpaths to ensure stable cutting and reduce tool wear. We also advise on heat treatment strategies, including vacuum hardening and stress relief, to minimize distortion and maintain dimensional accuracy. For production stability, we design custom fixtures and jigs to ensure rigid clamping and repeatable machining results.
Design for Tool Steel Components
Tool steel requires high hardness and strength, making precise geometric design critical. Sharp corners should be replaced with smooth radii, and wall thickness should be optimized to reduce stress concentration and improve fatigue resistance.For heat-treated components, a machine-then-grind strategy is recommended. Leaving controlled machining allowance before quenching ensures final accuracy is achieved through precision grinding, providing greater dimensional stability than in-process deformation control.At XTPROTO, our DFM analysis focuses on identifying geometric and structural risks such as sharp internal radii and insufficient support, ensuring reliable manufacturability and extended mold life.
Quality Assurance & Inspection
We ensure every tool steel component meets strict dimensional and material requirements through a multi-stage inspection process.
- ISO 9001 Certified Quality System
All production and inspection processes are controlled under ISO 9001 quality management standards to ensure consistent manufacturing reliability. - CMM Dimensional Inspection
Used to verify complex geometries and tight-tolerance features with high precision. - Rockwell Hardness Testing
Post-heat-treatment testing to confirm required HRC hardness levels are achieved. - Surface Roughness Measurement
Profilometer inspection to ensure Ra values meet specification for machined and EDM surfaces. - Full Traceability Documentation
Each batch includes dimensional reports, material certificates, and heat treatment records.

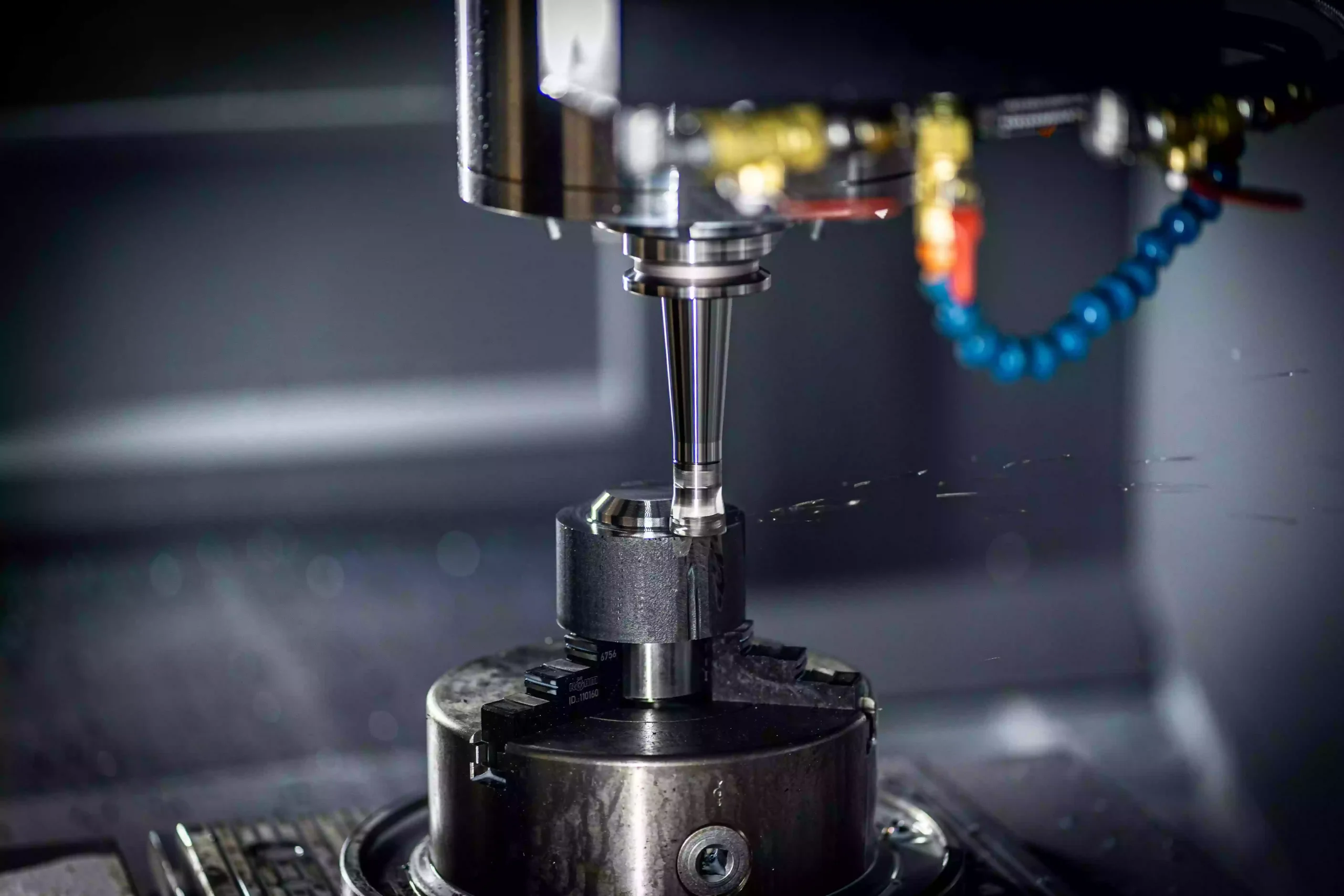

Our CNC Machining Capabilities for Tool Steel
To execute high-precision cuts on incredibly tough and abrasive tool steels, XTPROTO operates high-rigidity CNC machining centers equipped with advanced spindle cooling, specialized carbide tooling, and rigid clamping setups.
Technical Specifications
- Tolerance:CNC ±0.005 mm / Grinding & EDM ±0.002 mm
- Lead Time:Prototype 3–7 days / Production 2–3 weeks
- Surface Roughness (Ra):CNC Ra 1.6–0.8 μm / EDM Ra 0.8–0.4 μm / Grinding Ra 0.2–0.1 μm
- Maximum Machining Size:1200 × 600 × 500 mm
- Turning Capacity:Ø400 × 1000 mm
- Minimum Wall Thickness:≥ 0.5 mm
- Material Hardness Range:Annealed to 60–65+ HRC hardened tool steels
Surface Finishing Options for Tool Steel Machining
We offer a full range of surface finishing processes to improve appearance, corrosion resistance, wear performance, and functional requirements of tool steel components.
Electroless Nickel Plating
Uniform corrosion-resistant coating for complex geometries.
Hard Chrome Plating
Thick chrome layer for improved wear resistance and reduced friction.
PVD Coating (TiN / AlTiN)
Ultra-hard thin-film coating for extended tool life and surface durability.
PTFE (Teflon) Coating
Low-friction, non-stick coating for mold release applications.
As-Machined
Standard CNC finish with visible tool marks (Ra 1.6–3.2 μm).
Media Blasting
Uniform matte texture created with glass bead blasting.
Mechanical Polishing
Smooth or mirror-like finish for reduced friction and improved surface quality.
Brushing
Directional satin finish for decorative or sliding surfaces.
Vacuum Heat Treatment
Hardening and tempering process for high-strength tool steel applications.
Nitriding & QPQ
Surface hardening treatment for enhanced wear and fatigue resistance.
Passivation
Improves corrosion resistance of stainless-grade tool steels.
Black Oxide
Thin black conversion coating for mild corrosion protection.
Electropolishing
Burr-free electrochemical polishing with mirror-like surface quality.
Laser Engraving
Permanent marking for logos, serial numbers, and traceability.

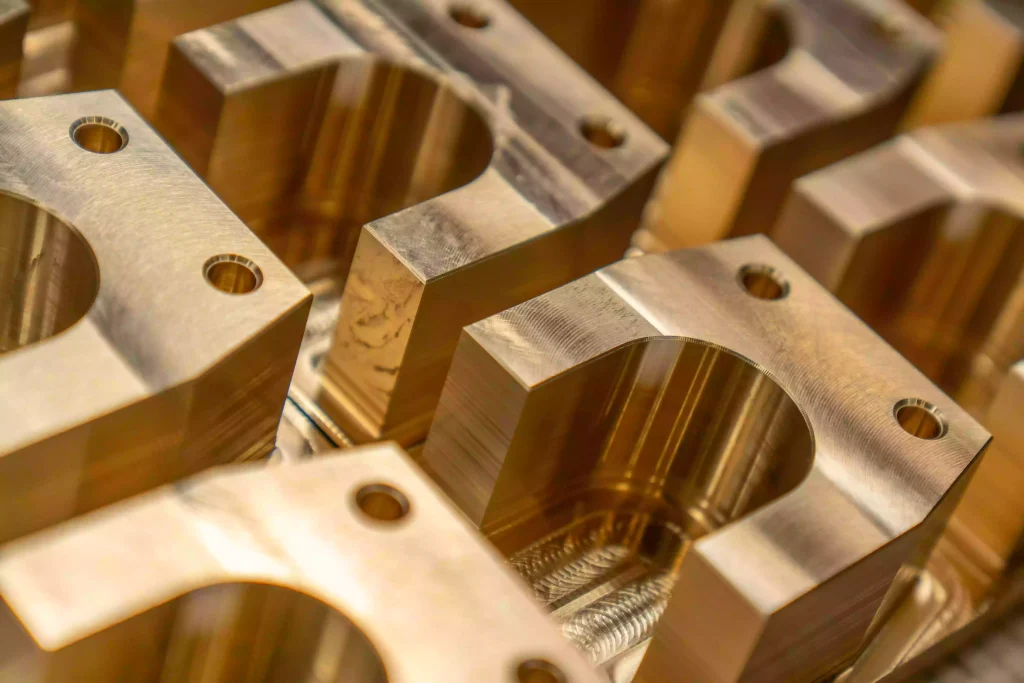

CNC Tool Steel Machined Parts We Machined
Our machining capability supports both functional tooling elements and high-duty mechanical components used in demanding manufacturing conditions.
Industrial Tooling Systems
Tool steel is commonly applied in structural and functional tooling where precision alignment and wear resistance are required over long production cycles.
- Precision fixtures
- Assembly jigs
- Tool bases
- Structural tooling elements
High-Usage Functional Parts
For components exposed to repeated motion or mechanical stress, tool steel provides the durability needed to maintain consistent performance over time.
- Wear-resistant inserts
- Mechanical stops
- Functional positioning components
- Replacement wear elements
Load-Bearing & Motion Components
In systems involving movement, clamping, or guided operation, tool steel components ensure stable performance under continuous stress and load conditions.
- Guide components
- Clamping elements
- Linear motion parts
- Support rails
Trusted Experts in Tool Steel CNC Machining
At XTPROTO, we integrate precision CNC machining, controlled heat treatment, advanced surface finishing, and engineering expertise into a fully coordinated tool steel manufacturing system.Every stage of production is managed under a unified process to ensure dimensional accuracy, material stability, and consistent quality across prototype and production runs.From complex geometries to high-performance industrial components, our manufacturing capability is built to deliver reliable, precision-engineered tool steel parts that meet demanding application requirements.
CNC Tool Steel Machining Industries
Automotive
Aerospace
Die Casting
Medical & Dental
Industrial Machinery
Energy, Oil & Gas
Tool Steel CNC Machining FAQ
What is your MOQ for tool steel parts?
What files are required for quotation and production?
How do you verify hardness after heat treatment?
Can parts be supplied in the annealed (soft) state?
How are tool steel parts protected during shipping?
Need Custom Tool Steel Machining?
Share your project requirements with XTPROTO today. Our engineering team will provide detailed quotations, optimized manufacturing solutions, reliable lead times, and professional material recommendations to ensure your tool steel components meet the highest performance and durability standards.
