CNC machining for solar energy
Lowering your LCOE with cost-effective, high-volume manufacturing. From rapid prototyping to mass production, we deliver heavy-duty PV components with tight tolerances and strict deadlines.
OEM & Contract CNC Machining for the Solar Energy Industry
As a trusted contract manufacturing partner, we provide precision OEM CNC machining services for the global solar energy sector. We specialize in high-volume production of durable PV components, including solar tracker parts, mounting brackets, and inverter housings.
With advanced multi-axis milling, turning, and certified surface treatments (like thick-film anodizing), we transform your CAD designs into rugged components built to withstand 25+ years of outdoor exposure. From rapid prototyping to gigawatt-scale manufacturing, we ensure tight tolerances, factory-direct pricing, and on-time delivery to keep your solar projects on schedule.
What is CNC Machining for the Solar Industry?
Solar CNC machining is the precision manufacturing process used to create high-strength, weather-resistant metal and plastic components for renewable energy infrastructure. Unlike standard machining, it focuses heavily on using solar-grade materials (like 6061 aluminum and stainless steel) and specialized surface treatments to ensure parts can survive 25+ years of harsh outdoor exposure, extreme winds, and UV radiation.
Advantages in Solar Equipment CNC Machining
Our facility meets the stringent requirements of the solar industry:
- Multi-Axis Precision:3-, 4-, and 5-axis CNC milling and turning with ±0.01 mm tolerances for complex components.
- Solar-Grade Materials:Skilled in 6061-T6/6063-T6 aluminum, 304/316 stainless steel, and heavy-duty carbon steel.
- Durable Finishes:Thick-film anodizing (≥15 μm), hot-dip galvanizing, and outdoor-rated powder coatings for 25+ years of durability.
- High-Volume Production:Automated cells enable rapid prototyping and smooth scale-up to gigawatt-level manufacturing.
- IP-Rated Sealing:Precision milling ensures surface finishes that support IP65–IP67 waterproofing for inverters and junction boxes.
Solving Solar Engineering Challenges
We eliminate field failures and optimization bottlenecks by addressing the core engineering challenges of solar hardware:
High winds cause continuous vibration on solar trackers. We use high-precision multi-axis CNC milling to eliminate tool marks and surface stress concentrations on moving joints and bearing housings, preventing micro-cracks and premature mechanical fatigue.
When steel and aluminum touch outdoors, galvanic corrosion occurs. We strictly control machining tolerances to allow for precise protective inserts and apply heavy-duty, uniform anodizing (≥ 15µm) that stops rust in desert UV and coastal salt spray.
Minor surface warping during machining ruins waterproof seals, risking inverter short circuits. We utilize optimized cutting paths and high-speed face milling to achieve tight flatness tolerances and ultra-smooth gasket grooves, ensuring a perfect airtight seal.
Heavy-duty inverters generate massive heat. We machine deep, high-density cooling fin structures with precision thickness control, maximizing the surface area of aluminum heat sinks to prevent thermal throttling.
Cumulative machining errors make field assembly a nightmare for installation crews. We utilize dedicated fixtures and multi-axis CNC setups to guarantee identical part-to-part geometric tolerances across thousands of structural brackets, ensuring instant alignment on-site.
Solar CNC Machining Capabilities
To back up our engineering solutions and support your project’s lifecycle, we operate a fully integrated, state-of-the-art manufacturing facility specifically optimized for the renewable energy sector. Combining heavy-duty production machinery with rigorous quality control, we possess the technological capabilities, floor capacity, and engineering expertise required to transform raw alloys into ultra-reliable, field-ready solar hardware. From rapid-turnaround DFM prototyping to gigawatt-scale mass production, our specialized facility is built to handle tight tolerances, massive volumetric demands, and strict compliance standards required by global solar OEMs and developers:
Cost-Reduction DFM Support
- Optimized Cycle Times:We evaluate your part geometry to eliminate redundant machine setups and streamline cutting paths, directly lowering your per-part manufacturing costs.
- Raw Material Efficiency:We identify critical areas where material waste can be minimized during heavy extrusion cutting and profile milling, preserving structural strength while trimming excess weight.
- Production-Ready Feature Simplification:We collaborate with your team to modify overly complex features or excessive tolerances, turning expensive design concepts into practical, highly manufacturable solar hardware.
Scalable Production
Once your designs are optimized for production, our facility activates the full capacity of our solar CNC machiningservices to seamlessly scale your project from engineering concepts to gigawatt deployment:
Rapid Machining
Flexible Low-Volume Testing
High-Volume Mass Production
High-Precision GD&T Control
With mass production underway, maintaining absolute part consistency across hundreds of thousands of units is where our technical discipline shines. High-volume solar CNC machining demands rigid Geometric Dimensioning and Tolerancing (GD&T) to combat the internal material stresses and thermal deformation common in heavy steel profiles and long aluminum rails. By enforcing microscopic tolerance control on bearing housings, articulating joints, and torque tube connections, we eliminate the risk of structural warping or mechanical binding. This uncompromising precision ensures that every component performs flawlessly under extreme field loads and seasonal temperature swings, guaranteeing a smooth, frictionless 25-year operational lifecycle without structural fatigue.
Seamless Supply Chain Integration
Once flawless mechanical precision is locked in at the factory layer, our capabilities transition into comprehensive logistics to eliminate unpredictable project delays and skyrocketing on-site labor costs. We manage the entire factory-to-field pipeline through flexible blanket order scheduling, allowing you to secure high-volume material discounts while releasing hardware batches in perfect alignment with your actual construction phases. To accelerate field deployment, our team pre-assembles critical mechanical sub-components directly on our production lines and delivers them in export-grade, moisture-resistant packaging. Every shipment arrives fully kitted and clearly labeled by project zone, allowing your field crews to unpack and install immediately without wasting time sorting through loose hardware.
Why Choose XTPROTO for PV Industry?
Because standard shops don’t understand utility-scale solar risks, global OEMs and developers choose XTPROTO to secure their pipelines from blueprint to job site.
- Solar-Focused Expertise:We know solar hardware inside out—from dynamic tracker loads to strict 25-year anti-corrosion and weatherproofing standards.
- 100% Quality Consistency:What you approved in the DFM prototype is exactly what you get in the 100,000th production unit. No variations.
- Zero-Delay Logistics:With blanket orders and project-zone kitting, we sync our factory output perfectly with your actual field construction phases.
Our Facility
To back up our promises with hard physical capacity, XTPROTO operates a massive 160,000-square-foot advanced manufacturing facility built specifically to handle utility-scale solar rollouts under one roof. This expansive footprint allows us to house everything from multi-axis CNC machining cells and heavy extrusion cutting lines to massive raw material buffers and dedicated pre-assembly zones. By keeping the entire production lifecycle within our own walls, we eliminate unpredictable subcontracting bottlenecks, shield your project from material shortages, and maintain the continuous, multi-shift output needed to deliver hundreds of thousands of components in perfect sync with your installation schedule.
Certified Quality
Because your Solar Power Equipment must survive 25 years in harsh outdoor environments, XTPROTO operates under strict ISO 9001:2015 quality management standards, fully compliant with international CE and UL requirements. Every production batch undergoes rigorous, multi-stage inspection—including 3D CMM dimensional validation, salt spray corrosion testing, and mechanical load testing. We document and track every single component from raw alloy ingot to the final shipping crate, ensuring that what arrives at your job site is fully certified, perfectly within tolerance, and built to withstand extreme field loads without structural fatigue.
Solar Equipment Machining Materials
To meet strict outdoor longevity and structural requirements, XTPROTO precision-machines a wide range of production-grade materials tailored for solar infrastructure:
High-Strength Metals
- Aluminum (6061, 6063, 7075)
- Stainless Steel (304, 316)
- Carbon Steel & Galvanized Steel
- Copper & Brass Alloys
- Titanium Alloys
Advanced Composites
- Carbon Fiber Composites
- Glass Fiber Composites
- Fiberglass (FRP / GRP)
- Prepreg Laminates
- Epoxy Resin Matrix
Engineering Plastics
- PVC (Polyvinyl Chloride)
- PC (Polycarbonate)
- Nylon (PA6, PA66)
- POM (Delrin / Acetal)
- PMMA (Acrylic)
Surface Finishing Services for Solar Industry
We offer a range of surface finishing options tailored for solar components to enhance durability, corrosion resistance, and weather protection:
Specifications
- Lead Time:Project-dependent with flexible batch scheduling based on production requirements
- Prototyping:1–7 business days turnaround for rapid development
- Tolerances:Achievable precision up to ±0.01 mm (±0.0004″)
- Surface Roughness:Down to Ra 0.4 μm (16 μin) for high-quality finishing
- Maximum Part Size:Up to 3000 mm × 1500 mm machining capacity
- Quality Inspection:Full inspection using 3D CMM measurement and certified salt spray testing
End-to-End Turnkey Solar Manufacturing
XTPROTO delivers a complete, turnkey manufacturing solution for your solar hardware production. Send us your drawings, and we handle everything under one roof—from upfront Design for Manufacturing (DFM) reviews and material sourcing to precision machining, weatherproofing surface treatments, and custom packaging. By consolidating production into a single partnership, we ensure strict quality control, full material traceability, and reliable delivery directly to your facility or project site to keep your project timelines on schedule.
Solar Energy CNC Machining Applications
We support a wide range of precision-machined components used across the solar energy sector, including structural, electrical, and thermal systems.
Solar Trackers & Mounting Components
- Torque tube connectors
- Heavy-duty articulating joints

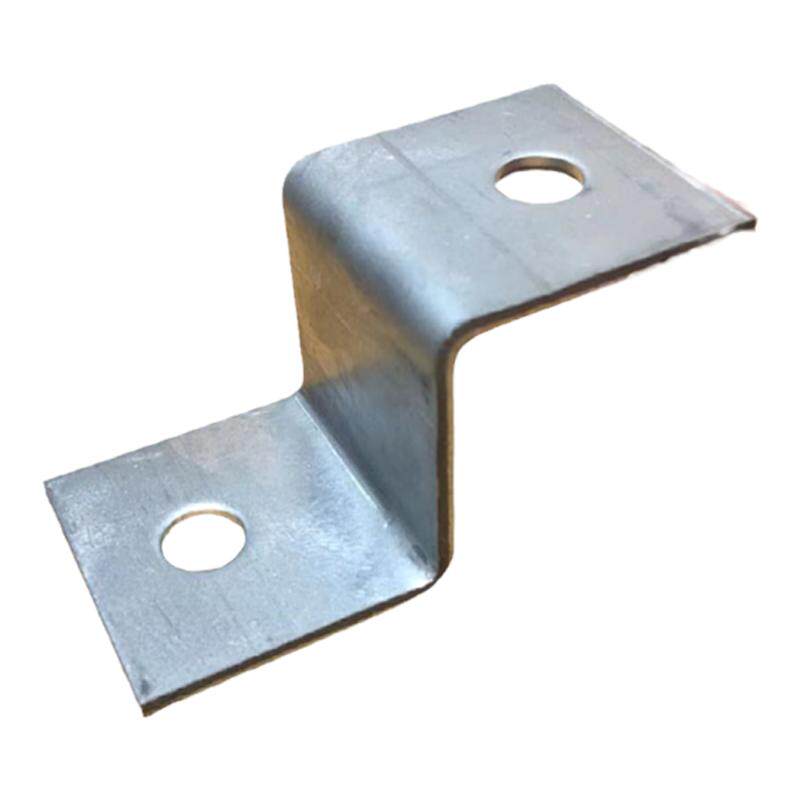

- Mounting brackets
- Bearing housings
- Driving arm components
Inverters & Power Electronics
- High-efficiency heat sinks
- Cooling fins
- Heat dissipation pipes
- IP65–IP67 waterproof enclosures
- Junction boxes
Electrical & Optical Hardware
- Terminal connectors
- Heavy-duty busbars
- Cable management blocks
- Grounding components
- Fan impellers
- Lens frames
PV Module & Structural Frames
- Precision-cut aluminum frame profiles
- Corner connectors
- Interlocking structural mounts
- Securing clamps
