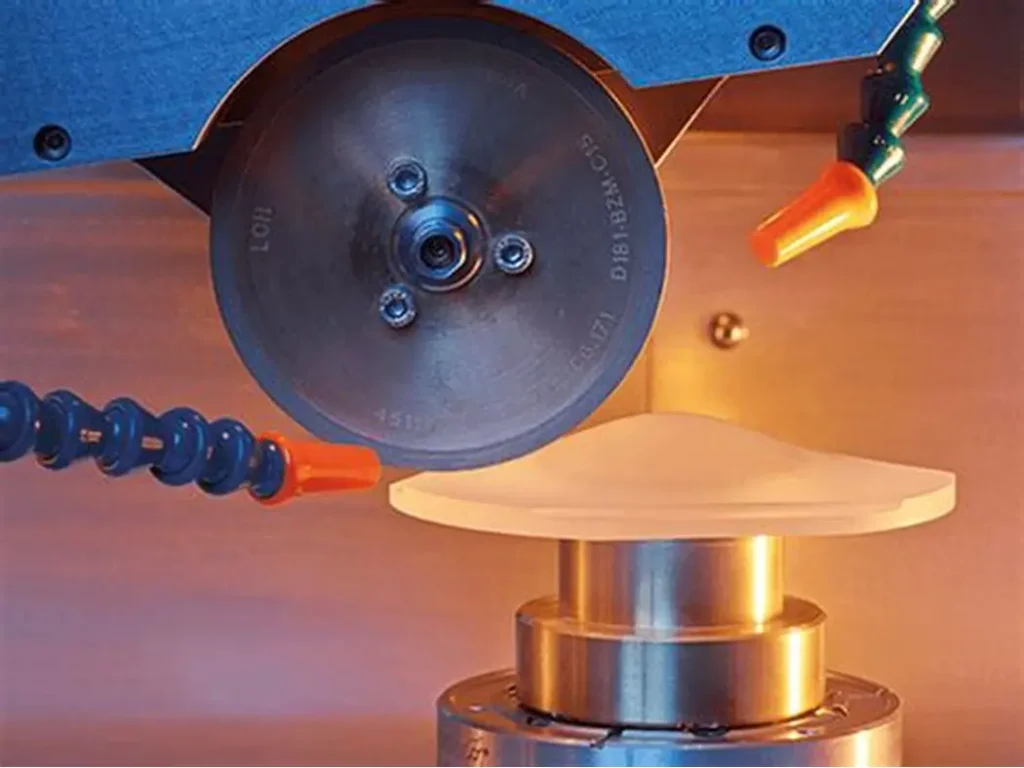

Optical CNC Machining Services
Specialized CNC machining for the optics industry. Our stress-relieved structures and advanced blackout finishes guarantee long-term alignment and crystal-clear imaging performance.
Custom Optical CNC Machining Services
Transform your optical designs into assembly-ready components with our comprehensive turnkey service. We focus on the two critical factors that define optical success: absolute structural stability and superior light path integrity. By managing the entire process—from stress-relieved machining to specialized optical finishing—we eliminate the risks of material deformation and stray light. Simply provide your drawings or requirements; we take care of the high-precision manufacturing and rigorous validation, delivering ready-to-use parts that integrate perfectly into your optical systems.
Advanced Optical CNC Capabilities
Built on a foundation of extreme precision and material expertise. We utilize high-speed 5-axis machining and sub-micron technology to handle the most demanding optical geometries. From specialized polymers to high-grade non-ferrous metals, our core infrastructure is designed to deliver repeatable accuracy for the world’s most sensitive imaging and photonics applications.
High-Stability Structural Machining
Optical components often lose alignment due to microscopic material shifting. To prevent this, we utilize a specialized multi-stage stabilization process that includes deep-cycle stress relieving and precision aging between machining passes. By controlling the material’s internal tension at every step, we produce housings and mounts that remain dimensionally inert. This process ensures that once your lenses are calibrated, the structural integrity of the assembly maintains that alignment permanently, regardless of environmental stress.
Dimensional Stability through Stress-Relief Control
Ensuring permanent alignment by neutralizing material internal stress. Thin-walled optical components are prone to microscopic warping post-machining, which leads to optical axis deviation. We prevent this by integrating a rigorous multi-stage stabilization workflow: combining secondary roughing/finishing passes with precision heat treatments and cryogenic stress-relieving. This capability ensures that every housing and mount remains dimensionally inert, maintaining sub-micron accuracy and perfect lens centering even under extreme thermal cycling from -40°C to +80°C.
Stray Light Management & Surface Mastery
Eliminating ghosting and flare through precision light-path control. To prevent the image degradation caused by internal reflections and tool marks, we offer a dual-approach surface capability. For reflective paths, we achieve a high-precision mirror finish of Ra ≤ 10nm to ensure exact light direction. For non-reflective areas, we execute precision-machined light traps (micro-serrations) and specialized ultra-matte black anodizing. This technical mastery over surface texture ensures all stray light is absorbed at the source, delivering maximum image contrast and purity.
Why Choose Our Optical Machining Services?
We help you save time and money on optical projects while ensuring reliable quality. Our facility is built for high productivity and precision, allowing us to process a wide range of materials, including various grades of alloys and specialized metals. We specialize in custom-machining complex optomechanical parts that meet your specific tolerances. From rapid prototyping to high-volume production, our ISO 9001:2015 certified process and advanced inspection tools ensure every part meets the standards required for optical systems, maintaining a quality pass rate of over 99.98%.
Machining Services for Optical Components
CNC Machining
CNC Milling
5-Axis CNC Machining
Assembly & Packaging
CNC Turning
Swiss Machining
More About Our Company
XTPROTO is a trusted CNC machining partner with over 20 years of experience. Operating from our 160,000-square-foot facility, we specialize in custom precision parts and complex optomechanical assemblies. From design and prototyping to full-scale production, we offer a complete manufacturing suite including surface finishing, sheet metal fabrication, 3D printing, and die casting.
Meet the XTPROTO Engineering Team
Our team of 120+ specialized engineers provides expert DFM (Design for Manufacturing) and technical consulting to bridge the gap between complex optical theory and practical production. We focus on optimizing your designs for cost-efficiency and high-precision performance, ensuring that even the most challenging optomechanical requirements are met with innovative manufacturing solutions and robust technical support.
Consistent Quality Assurance
We understand that one failed component can compromise an entire system. Operating under ISO 9001:2015 and IATF 16949 standards, XTPROTO utilizes advanced CMM inspection and rigorous PPAP/FMEA protocols to guarantee sub-micron accuracy and superior surface finishes. We ensure every part meets your most demanding optical specifications with zero-defect precision.
- Certified: ISO 9001 & IATF 16949 (Automotive)
- Precision: CMM Inspection & FMEA Analysis
- Strict Control: PPAP Compliance & Kanban Management
Optical Machining Technical Specifications
- Precision Tolerances: Standard ISO 2768 compliance. Metals to ±0.005″ (0.127mm); Plastics to ±0.010″.
- Tight tolerances achieved down to ±0.001″ per GD&T specs.
- Maximum Milling: Up to 80″ x 48″ x 24″ (2,032 x 1,219 x 610 mm).
- Maximum Turning: Up to 62″ (1,575 mm) in length and 32″ (813 mm) in diameter.
- Minimum Feature: Down to 0.020″ (0.50 mm) depending on geometry and material.
- Rapid Lead Time: Prototype delivery as fast as 24 hours.
Optical Machining Material Capabilities
Metals
- Aluminum: 6061, 7075, 2024 (Structural & Lightweight)
- Stainless Steel: 303, 304, 316, 17-4 PH
- Titanium: Grade 2, Grade 5 (Ti-6Al-4V)
- Copper & Alloys: C110, Brass, Bronze
Engineering Plastics
- Optical Grade: PMMA (Acrylic), PC (Polycarbonate)
- High Performance: PEEK, Ultem (PEI), POM (Delrin)
- General Purpose: Nylon, ABS, PTFE (Teflon), HDPE
Specialty & Others
- Low Expansion: Invar 36 (For thermal stability)
- Superalloys: Kovar, Inconel
- Composite: G-10/FR-4 (Garolite)
Optical Machining Surface Finishes
Surface roughness is critical for precision performance. We provide standard Ra 3.2μm machining and achieve ultra-fine Ra 0.8μm – 0.4μm finishes through vibration-free cutting and precision grinding, ensuring optimal light scattering control and minimal friction for optical systems.
What is Optical CNC Machining?
Optical CNC machining is a high-precision manufacturing process specifically tailored for the support, packaging, or alignment components of optical elements—such as lenses and mirrors. Unlike conventional mechanical machining, this process focuses on achieving exceptionally high geometric accuracy and dimensional stability to ensure the perfect alignment of optical paths. By integrating rigorous tolerance control engineering with specialized stray light control techniques, it provides the structural integrity and thermal performance guarantees required for high-end optomechanical systems.
Advantages of Optical CNC Machining
CNC machining provides unparalleled accuracy for optical systems. It ensures extreme dimensional precision in lens housings and mirror mounts, which is critical for maintaining optical axis alignment and long-term stability.
Optical components often require intricate internal structures. CNC machining easily handles these challenges, producing high-functionality parts like complex lens barrels and multi-axis mounts that are difficult to achieve through other methods.
Our technology works with a wide range of materials, from lightweight alloys to low-expansion metals like Invar. These materials are essential for maintaining focus and structural rigidity during thermal fluctuations.
In the fast-paced photonics industry, CNC machining accelerates the transition from design to product. It allows engineers to quickly test new optomechanical designs and iterate without the cost or delay of fixed tooling.
We deliver exceptional surface finishes and precise textures directly from the machine. This is vital for managing stray light, reducing reflections, and ensuring the perfect fit of precision mechanical interfaces.
Optical Applications & Components
Our manufacturing capabilities support a wide range of optical systems, providing the structural foundation for light-path integrity and thermal stability. We produce precision-engineered components across the following key sectors:
- Laser Systems: Diode housings, resonators, high-performance heat sinks, and beam expanders.
- Imaging & Sensors: CCD/CMOS sensor enclosures, LiDAR housings, lens barrels, and camera assemblies.
- Precision Metrology: Measurement instrument frames, calibration fixtures, and interferometer housings.
- Fiber Optics: Connector ferrules, V-blocks, adapters, and splicing housings for precise transmission.
- Scientific Research: Telescope and microscope components, kinematic mounts, and optical posts.
- Semiconductor & UHV: Ultra-high vacuum chambers, flanges, and mounts for lithography equipment.
- Medical Technology: Precision hardware for MRI, X-ray imaging, and ophthalmic diagnostic devices.
- Industrial Automation: Laser cutting heads, galvo mirror systems, and light-shielding enclosures.
From Design to Optical Integrity
At XTPROTO, we provide end-to-end manufacturing for the most demanding optomechanical projects. From initial DFM optimization and premium material sourcing to precision CNC machining and final assembly, we manage every detail to ensure your light path remains perfect.
We translate complex optical specifications into high-performance hardware. By refining tolerance stack-ups and utilizing thermal-stable materials like Invar, we guarantee micron-level accuracy. Every component is processed in our ISO-certified facility, undergoing rigorous ultrasonic cleaning and metrology to meet clean-room standards.
You receive assembly-ready solutions with full traceability and dedicated project management. We combine world-class precision with competitive pricing, making us the trusted partner for global leaders in photonics and laser technology.
Optical CNC Machining FAQ
How do you ensure thermal stability for optical components in varying environments?
Can you achieve the specific internal textures required for light suppression?
What measures are taken to prevent material outgassing in vacuum optical systems?
How do you maintain the geometric relationship between multiple optical axes?
Do you provide material certification for high-performance optical alloys?
From Design to Optical Integrity — Start Your Project Today.
Simply upload your drawings to receive a competitive quote. We manage everything from stress-relief machining to specialized finishing, ensuring high-precision delivery directly to your facility, no matter where you are located.
