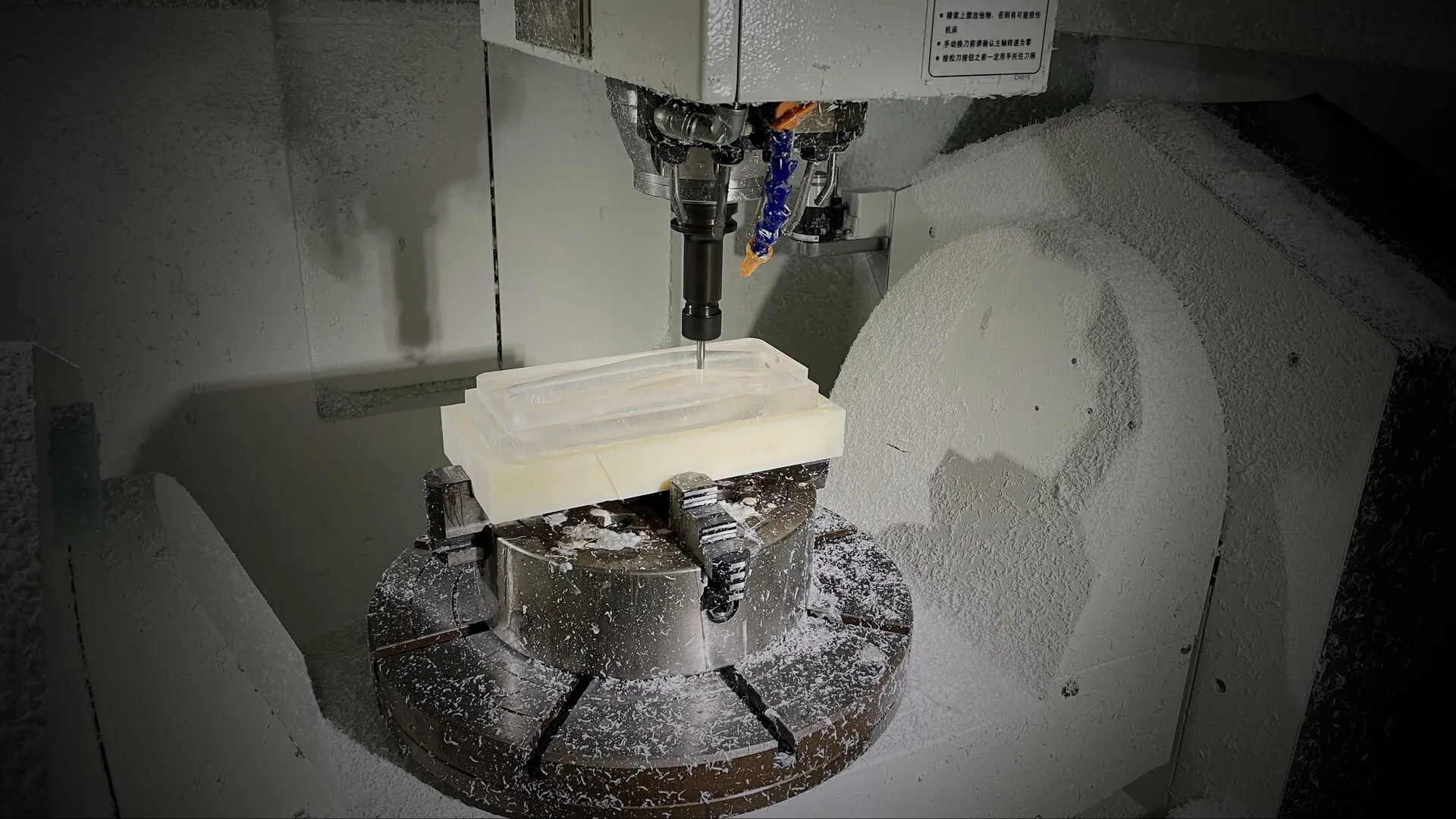

PPS (Polyphenylene Sulfide)CNC Machining Services

Achieve ±0.01mm precision with our stress-relieved PPS machining. We eliminate warping and edge-chipping through proprietary annealing cycles, delivering high-stability parts in Ryton® and Techtron® (GF40/CF) that withstand 200°C+ environments for semiconductor and aerospace applications.

Custom PPS Machining Services

We provide end-to-end CNC machining for custom PPS parts, supporting your project from design and reverse engineering to prototyping and mass production. Our services include expert DFM optimization, precision assembly, and specialized packaging to ensure every component meets your exact project specifications.

As a dedicated machining partner, we specialize in high-tolerance PPS fabrication for complex geometries that require absolute dimensional stability. We streamline your supply chain by handling everything from initial CAD review to final high-volume delivery with speed and technical precision.

PPS (Polyphenylene Sulfide) Material Properties

Polyphenylene Sulfide (PPS) is a high-performance engineering thermoplastic designed for extreme stability. Bridging the gap between standard polymers and PEEK, PPS delivers excellent thermal, chemical, and electrical performance at a cost-efficient price.

Key Benefits

High Thermal Resistance:Continuous use up to 200°C (338°F); melting point 280°C.
Exceptional Dimensional Stability:Near-zero moisture absorption (0.02%) and low thermal expansion maintain tight tolerances.
Wide Chemical Resistance:Resistant to most solvents, fuels, acids, bases, and hot steam.
Inherent Flame Retardancy:UL94 V-0 rating without additives.
Superior Electrical Insulation:Dielectric strength 450 V/mil, stable across humidity and temperature changes.
Precision Machining:Ideal for complex, tight-tolerance components.

Technical Specifications (Typical Values)

Property	Metric	Imperial	ASTM Test
Density	1.35 g/cm³	0.048 lb/in³	D792
Tensile Strength	80–86 MPa	12,500 psi	D638
Flexural Modulus	4,130 MPa	600,000 psi	D790
Notched Izod Impact	27 J/m	0.5 ft-lb/in	D256
Heat Deflection Temp (1.8 MPa)	200–240°C	400–464°F	D648
Water Absorption (24 hr)	0.02%	0.02%	D570
Coefficient of Thermal Expansion	4.0 ×10⁻⁵ in/in/°F	–	D696
Dielectric Strength	–	450 V/mil	D194

Common PPS Material Grades

PPS (Polyphenylene Sulfide) is available in three primary grades, each optimized for specific applications:

Virgin / Unfilled PPS– Pure resin with excellent electrical insulation and chemical resistance. Best for precision parts with intricate details and moderate mechanical loads.
40% Glass-Filled (GF40) PPS– Reinforced with 40% glass fibers, increasing stiffness, strength, and heat deflection temperature (up to 240°C). Ideal for structural and high-temperature applications.
Bearing / Wear Grade PPS– Contains internal lubricants (PTFE) and optionally carbon fibers. Offers low friction and high wear resistance for bushings, bearings, and pump impellers.

PPS vs. Alternative Materials

Material	Performance Highlights	Why Choose PPS?
PPS	200°C+ / Near-Zero Absorption	The Peak Value Choice for precision structural parts.
PEEK	250°C+ / Extreme Strength	PPS is 40-60% cheaper for use under 220°C.
Nylon	80°C+ / High Water Absorption	PPS won’t swell or warp in humid environments.
POM	90°C / Good Machinability	PPS offers much higher heat & chemical resistance.
Rubber	120°C / Flexible & Elastic	PPS provides the rigid, high-heat support for seals.

Find the Right PPS Material

Need a specific PPS grade or custom solution? Our engineers can help you select the perfect material for your application.

Advanced CNC Machining Capabilities for PPS Components

XTPROTO provides full-scale PPS (Polyphenylene Sulfide) machining capabilities, seamlessly transitioning projects from high-speed functional prototyping to rigorous mass production. Utilizing multi-axis CNC milling, precision turning, and climate-controlled production facilities, we specialize in processing both virgin polymers and highly abrasive filled grades, including 40% glass-fiber and carbon-filled PPS. Our advanced manufacturing setup consistently holds ultra-tight dimensional tolerances down to ±0.01 with absolute batch-to-batch repeatability. By implementing specialized PCD and diamond-coated tooling matrices, we effortlessly master the high tool wear traditionally associated with filled engineered plastics, expanding our capabilities to produce thin-walled housings, complex micro-fluidic manifolds, and intricate internal flow channels that other standard machine shops cannot achieve.

Solutions for Complex PPS Machining Challenges

Our expertise lies in mastering the inherent difficulties of PPS machining, moving beyond basic cutting to deliver high-performance components that meet the most stringent industry standards.

Brittle Edge Management

Leveraging custom diamond-coated tooling and optimized feed rates, we precisely control tool paths and cutting pressure to counteract PPS’s inherent brittleness. This specialized approach ensures clean, chip-free edges on complex geometries while maintaining high-precision micron-level accuracy.

Contamination-Free Processing

To meet the stringent purity standards of the semiconductor and medical industries, we utilize dedicated machining zones and metal-free coolants. By eliminating cross-contamination from metallic particles or oils, we deliver high-purity components that preserve their full chemical integrity.

Strategic Metal Replacement

To support weight reduction and cost-saving transitions from metal or PEEK to PPS, we provide expert DFM (Design for Manufacturing) consultation. By optimizing wall thickness and structural ribbing, we maximize the material’s high rigidity to achieve equivalent strength with significantly lower weight and cost.

Stress-Relief & Dimensional Stability

To prevent the warping caused by internal stresses during machining, we implement multi-stage annealing cycles that stabilize the polymer’s crystalline structure. This process guarantees that parts maintain superior dimensional stability—holding tolerances within ±0.01mm—even under extreme thermal operating conditions.

PPS Technical Specifications

Tolerance:Standard tolerance ±0.125 mm (±0.005″); precision parts can reach ±0.01 mm depending on geometry.
Pricing:Competitive, on-demand quotes tailored to order size and complexity.
Lead Time:Fastest delivery in 3 days for prototypes; complex parts typically shipped within 10 days.
Wall Thickness:Minimum 0.5 mm (0.02″); recommended ≥0.8 mm for optimal structural strength.
Maximum Part Size:
- CNC Milling: 1200 × 500 × 150 mm
- CNC Turning: Maximum diameter 500 mm

PPS Parts We Machined

PPS Pump Components
PPS Valve Seats
PPS Electrical Insulators
PPS Semiconductor Fixtures
PPS Fluid Handling Parts
PPS Bearing Components
PPS Connector Housings
PPS Precision Bushings
PPS High-Temperature Covers
PPS Chemical Processing Components
PPS Industrial Equipment Parts
Custom PPS CNC Parts

PPS Manufacturing Plant

Delivering high-precision PPS parts at scale requires more than just machines—it demands a controlled industrial environment. Our facility is engineered to transform complex designs into high-purity, production-ready components with uncompromising consistency.

xtproto is an ISO 13485 2016 certified factory

160,000 Sq. Ft. Smart Factory

Operating from a massive 160,000-square-foot production hub, we provide the industrial capacity to handle everything from rapid prototypes to high-volume recurring orders. Our facility features dedicated PPS production cells, ensuring streamlined workflows and the physical space to scale your project as demand grows.

Advanced Machining Fleet (Milling, Turning, & 5-Axis)

We house a comprehensive fleet of high-speed CNC centers, including multi-axis milling, precision turning, and Swiss-type lathes. This diverse equipment array allows us to select the most efficient machining path for any PPS geometry, ensuring optimal cycle times and consistent quality across thousands of units.

On-Demand Production Strategy

Our plant operates on a flexible, on-demand manufacturing model designed to eliminate supply chain bottlenecks. By synchronizing our machine uptime with your project timelines, we offer the agility of a boutique shop with the massive output of a Tier-1 supplier, delivering parts exactly when you need them.

Integrated Resource Management

Every stage of the PPS manufacturing lifecycle is managed under one roof—from raw material inventory and environmental control to final precision machining. This centralized approach minimizes logistics risks, shortens lead times, and ensures total oversight of the production environment for every batch.

Engineering & Technical Expertise

Material Selection & Consulting:Our team of 120+ experts specializes in all PPS grades, providing precise recommendations for chemical resistance and thermal stability to ensure materials perfectly match your application.
Strategic DFM Analysis:By optimizing geometry, wall thickness, and fillet radii, we prevent chipping and stress cracks to enhance part structural strength and reliability.
Custom Process Development:Specialized multi-stage annealing and custom tool paths relieve internal stresses, maintaining tight dimensional tolerances of ±0.01mm.
Advanced Programming:Leveraging advanced CAM programming for 5-axis and Swiss machines, we achieve high-precision machining and superior surface finishes even on complex geometries.

PPS CNC Machining Service Types

CNC Machining

CNC Milling

CNC Turning

Swiss Machining

Sinker EDM

5 Axis CNC Machining

Quality Assurance & Rigorous Testing

Every PPS component is inspected to the highest standards using Hexagon CMMs, high-magnification vision systems, and laser scanners in temperature-controlled environments, ensuring dimensional tolerances of ±0.01mm. With ISO-certified process traceability from material certificates (MTR) through FAI, in-process checks, and 100% final inspections, each part maintains full batch-to-batch consistency. Specialized PPS testing, including ultrasonic flaw detection and high/low temperature cycling, ensures resistance to internal stress, cracking, and functional failure. Fully compliant with ISO 9001, AS9100, and ISO 13485, our PPS parts are trusted in semiconductor, medical, and aerospace applications.

Scale Your Production with Confidence

Backed by a 160,000 sq. ft. smart factory and rigorous ISO-certified quality control, we bridge the gap between rapid prototyping and high-volume manufacturing. Your precision PPS components, delivered at scale.

PPS Surface Finishing Solutions

To ensure your PPS parts not only meet dimensional requirements but also perform and look their best, we offer a range of surface finishing and functional treatments tailored to material properties and application needs:

As-Machined

High-precision CNC machining delivers smooth, dimensionally stable PPS parts ready for use in industrial pumps, valves, and connectors without additional finishing.

Bead Blasting

Fine media blasting removes tool marks and creates a uniform matte surface, enhancing appearance and reducing glare.

Tumbling & Deburring

Vibratory tumbling smooths PPS edges and removes micro-burrs without affecting tolerances, ensuring safe, comfortable handling.

PTFE Coating

Reduces friction for high-frequency sliding parts.

Thermal Annealing

Essential for stress relief and extreme dimensional stability.

Custom Painting

Color customization with surface activation to ensure adhesion on PPS.

Why Choose Our PPS Machining Services?

Precision Stability:Guaranteed ±0.01mm tolerance through our proprietary stress-relief process.
Industrial Scale:160,000 sq. ft. facility and 120+ engineers ready for 3-day prototypes or high-volume orders.
Specialized Expertise:20+ years of experience mastering PPS-specific challenges like brittleness and outgassing.
Total Reliability:ISO-certified quality with 100% traceability and specialized crack-detection testing, ensuring zero-defect delivery for mission-critical applications.

Typical PPS CNC Machining Applications

Semiconductor & Electronics

IGBT modules, high-density connectors, IC test sockets, and precision carrier trays with micron-level tolerances and superior dielectric performance.

Medical Devices

Autoclavable surgical tool handles, diagnostic components, and high-purity fluid connectors, engineered for repeated 134°C steam sterilization without compromising integrity.

Aerospace & Defense

Fuel system brackets, insulating supports, and lightweight housings that meet UL94-V0 flame retardancy and low outgassing for flight-critical applications.

Automotive & EV

Cooling system manifolds, pump impellers, sensor housings, and battery busbars, replacing metal to reduce weight while resisting hot coolants and engine oils.

Industrial & Chemical Handling

Chemical-resistant valves, precision bearings, wear-resistant bushings, and pump housings leveraging PPS’s chemical inertness for aggressive acids and bases.

Energy & Power

High-temperature insulators, switchgear components, and transformer parts providing long-term thermal stability and mechanical strength for high-voltage environments.

PPS Machining: Frequently Asked Questions

PPS is more cost-effective than PEEK, but how much can I actually save on a project?

Generally, PPS raw material costs 40% to 60% less than PEEK. While both are high-performance polymers, PPS offers a more efficient machining profile for mid-to-high volume runs. By leveraging our DFM (Design for Manufacturing) optimization, many clients reduce their total part cost by 30% or more when transitioning from PEEK to PPS for applications under 220°C.

How do you prevent dimensional drifting when PPS parts are exposed to high temperatures?

Dimensional instability is usually caused by residual internal stresses from the extrusion or machining process. We solve this by implementing multi-stage thermal annealing cycles between roughing and finishing stages. This "stress-relief" process ensures your parts maintain their ±0.01mm tolerance even during continuous operation at 200°C+.

Can you provide Material Test Reports (MTR) for semiconductor or medical grade PPS?

Yes. We maintain full traceability for all high-performance resins, including Ryton® and Techtron® grades. Every order is delivered with a Certificate of Conformance (CoC) and, upon request, an MTR (Material Test Report) to verify compliance with industry-specific purity and mechanical standards.

How does your team handle the inherent brittleness of PPS to avoid micro-cracking?

Preventing micro-cracks requires a combination of sharp, PCD (Polycrystalline Diamond) tooling and specialized tool-path strategies. Our engineers program specific "ramp-in" and "ramp-out" cycles to minimize pressure on thin walls and sharp edges. This ensures the structural integrity of complex geometries that would otherwise fail under standard machining parameters.

Is PPS suitable for metal replacement in chemical environments?

Absolutely. PPS has no known solvents below 200°C. It is an ideal metal replacement for parts exposed to aggressive acids, bases, and fuels. Our engineering team can help you redesign your metal components with optimized wall thicknesses and ribbing to match the required mechanical strength while significantly reducing part weight.
